Big discount for cnc laser machine WTJ-6090

Release Time:2017-08-02 Wintek News Browsing Times:

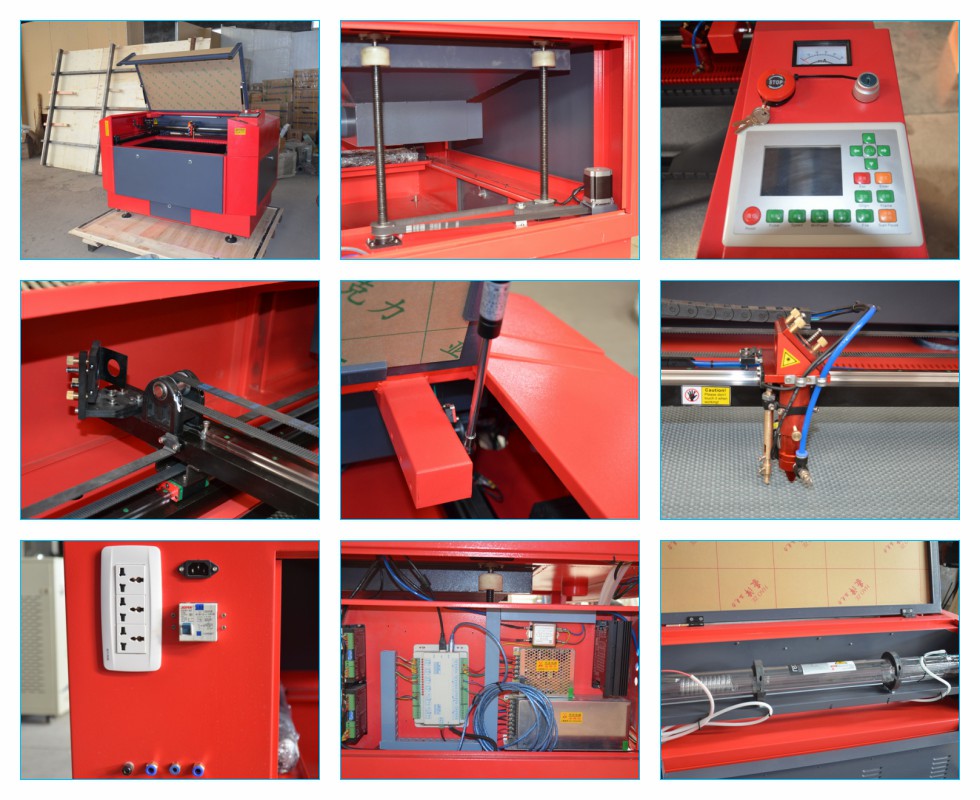

Function Features of co2 laser machine:
1.High stability and high strength mechanical structure casted by high accuracy model which can ensure stable data motion,
high speed, high precision, long-term operation without adjustment and the same precision carving. The design idea of
around the body through can add materials from before and behind which for infinite workpiece.

2.The stability and integrity design idea with advanced industry cooling system and  water alarm , Automatic Protection Function,
improve the stability and safety of continuous operate.Perfect dust, pollution prevention design greatly improve the overall stability of the machine.

3.Using flying path design, unique structure, small optical path deviation, high stability, easy to adjust. Optical Accessories adopts
best imported K9 mirrors and ante focusing mirrors whose reflectivity and transmittance is the best with more detailed spot, more cutting edge .

4.Independent R&D efficient laser power: Adopt new high-voltage switch-mode, PWM master control technology, which is more stable.

Technical Parameter :

Model

WTJ-6090

Engraving and Cutting Area

600*900mm

Tube type

CO2 sealed glass tube

Laser wave

10.6um

Laser Power

RECI-80W

Cooling

Water Chiller CW3000

Engraving Speed

0-75,000mm/min

Cutting Speed

0-40,000mm/min

Reposition Accuracy

±0.01mm

Minimum Character Size

English:1mm ; Arabic numbers:1mm

Resolution

4,000 dpi

File output mode

2.0 USB interface

Machine Power

<2,000W

Support Format and Software

PLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw,
 Photoshop, laser cut 5.3

Working Environment Temperature

0-45°C

Drive system

Leashine Stepper motor or servo motor

Control system

Ruida DSP offline control system

Exhaust smoke system

Big exhaust fan ( Optional Air purified)

Working Voltage

220V,50HZ/60HZ

N.W.

400KG

G.W.

460KG

Warranty time

1 year for machine (12 months for RECI tube)

Package

Wooden case

Packing size

1370*1650*1300mm

Delivery time

5-7 working days after received the deposit

10% discount for cnc laser machine WTJ6090
discount for co2 laser machine
MOQ: 1 set
Payment : T/T .
30% of the total payment in advance, pay the balance after receiving delivery release .

Delivery Time :
5-7 working days after receiving deposit .

Packing Term :
1. Outside package : standard export plywood cases
2. Inner package : Stretch film

Duration of promotion :
From 2017.8.2 ---- 2017.10.15

Promotion price :

2600$ FOB Qingdao
