Laser cutting steel

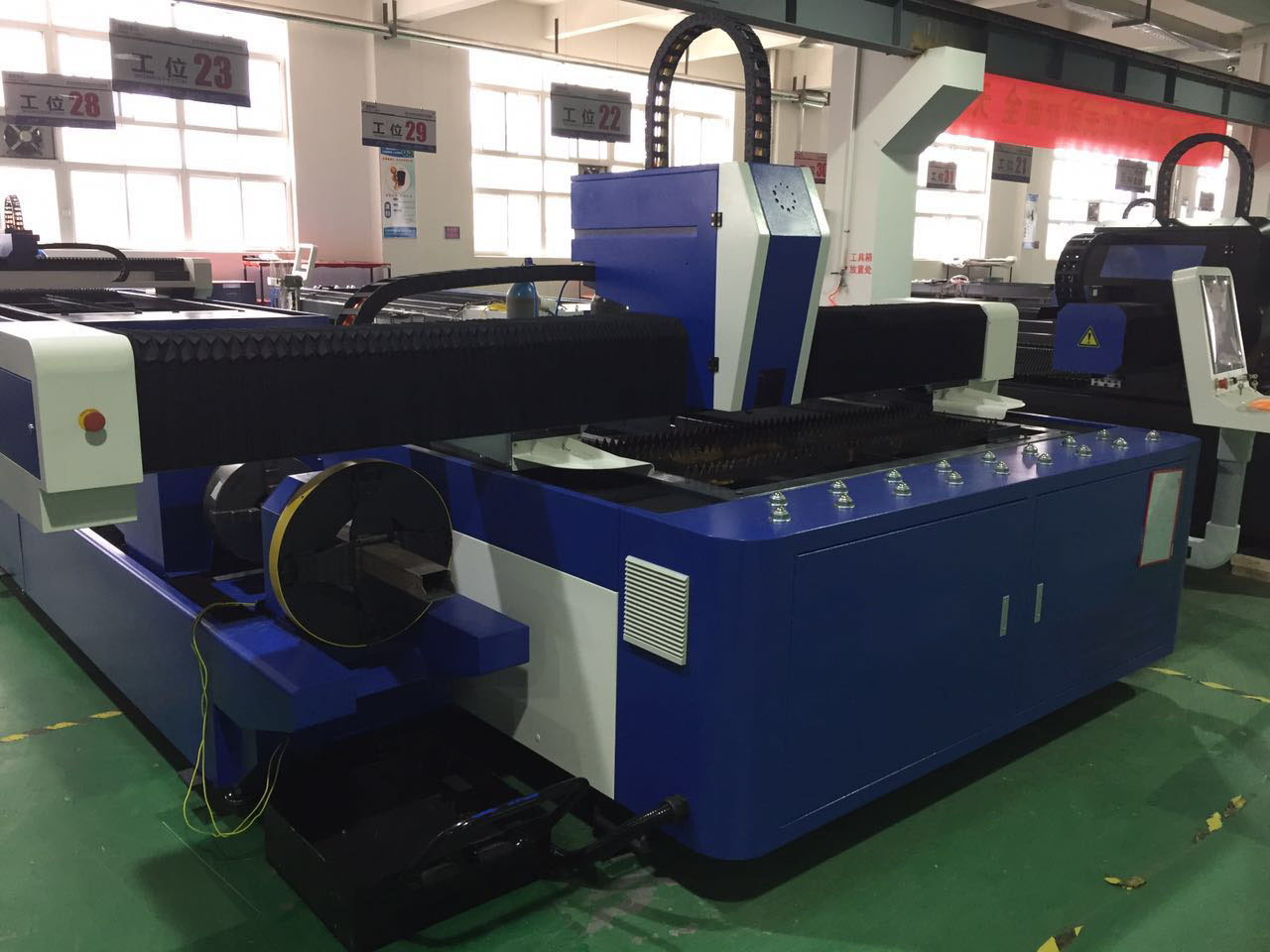

Fiber Laser Cutting Machine is a good choice for steel cutting.
1. What materials can 1500w fiber cut ?

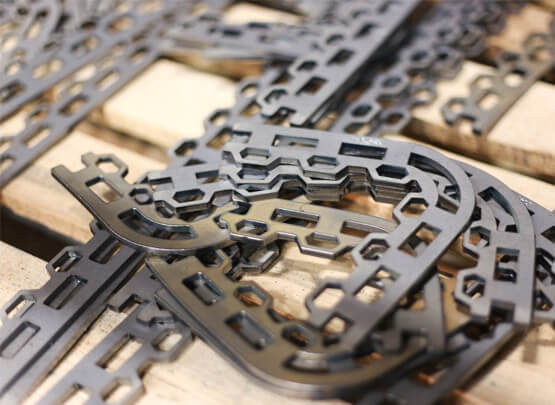

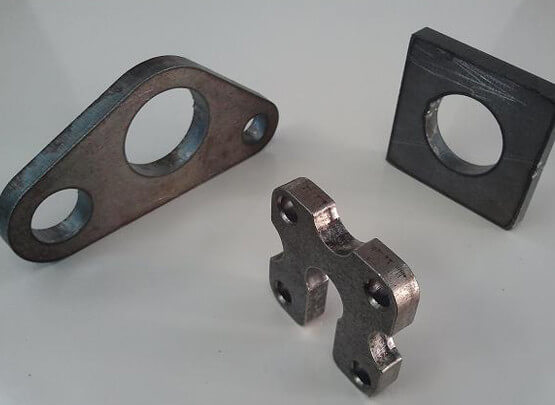

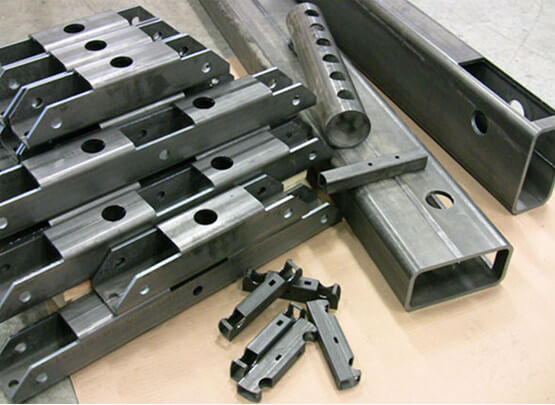

Mainly used for cutting carbon steel, silicon steel, stainless steel, galvanized steel sheet, and many kinds of metal materials cutting and so on.
.jpg)
|
|
||
|
Laser Type |
500w 750w 1000w 1500w 2000w Raycus Fiber Laser |
|
|
Laser Technology |
Germany Technology |
|
|
Working area |
3000*1500 mm |
|
|
X axis Stroke |
3050 mm |
|
|
Y axis Stroke |
1500 mm |
|
|
Z axis Stroke |
150 mm |
|
|
Transmission way |
Taiwan TBI ball screw |
|
|
Table-driven system |
Japanese Panasonic Servo motor & Driver / France Schneider servo motor & drivers |
|
|
Focus Method |
Dynamic Following and Automatic Adjust Focus |
|
|
Location precision |
≤±0.05 mm |
|
|
Re-location precision |
±0.02 mm |
|
|
Max. moving speed |
100m/min |
|
|
Laser wavelength |
1070nm |
|
|
Minimum line width |
≤0.1mm |
|
|
Supporting Format |
PLT, DXF, BMP, AI |
|
|
Power demand |
380V/50HZ |
|
|
Worktable max. load |
1000 Kg |
|
|
Dimension (L*W*H) |
4000mmX3000mmX2000mm |
|
|
Control Method |
offline movement Control |
|
|
Control software |
CypCut Controlling system |
|
1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating system which make the best cutting effect.
3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.

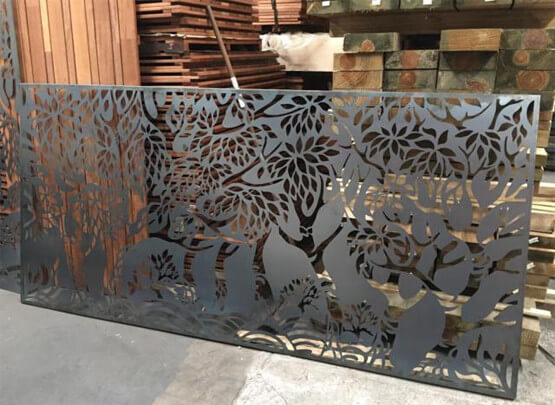

5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.
6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.
For more information, please click here : Fiber Laser Cutting Machine
