This co2 laser machine has double tubes and laser heads. One tube is yongli 150w-180w,for cutting.Another tube is reci w1 (75w-90w), for engraving. Lower power is more suitable for engraving,because its beam is more fine.
Configurations of doubles heads/tubes co2 laser machine :
#Working area:1300*900mm
# Yongli 150w-180w tube & Reci W1 tube (75w-90w)
#RD6442 Control system (Is more convenient to operate than Leetro control system )
#Belts transmition (Fulong ,Longlife time no any damaged )
#Leadshine stepper motor and drivers
#Two pcs CW5200 water chiller( S & A brand )
#Blade table
#Up-down table with auto focus system
#Taiwan Original Hiwin Square Rails
#Red point
#Water protection switch
# USA lens and mirrors
#USB offline
#Blower 750w (Exhaust Fan)
#Standard Tools box (Including all the tools you need )

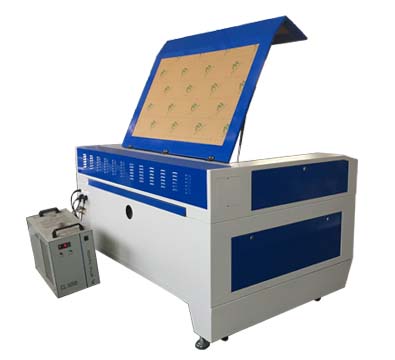

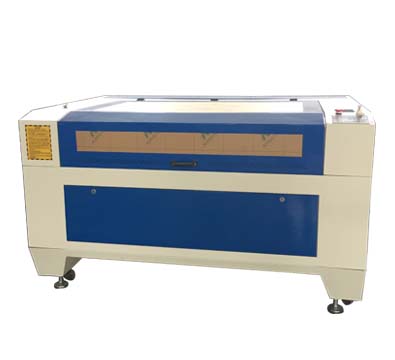

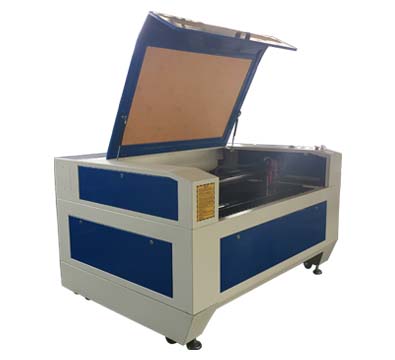

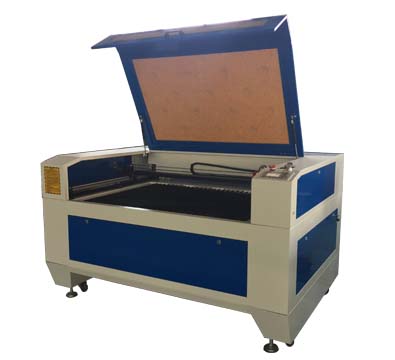

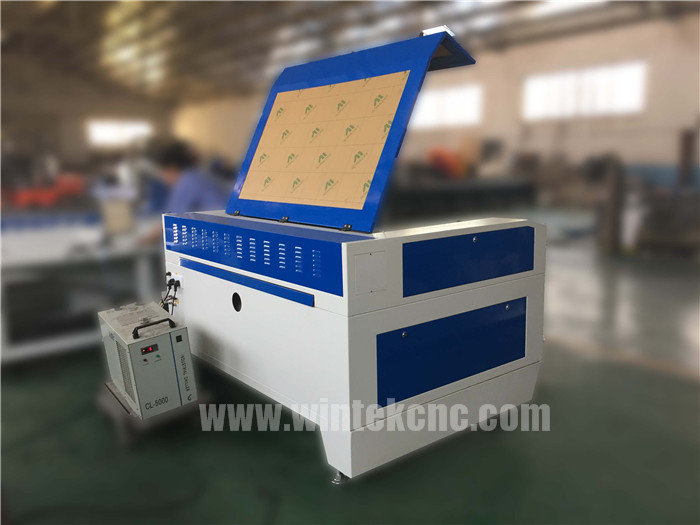

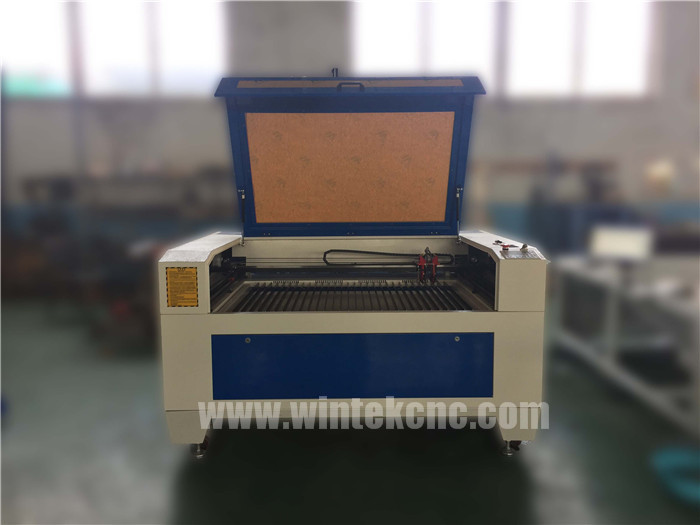

Machine show of double heads/ tubes co2 laser machine :

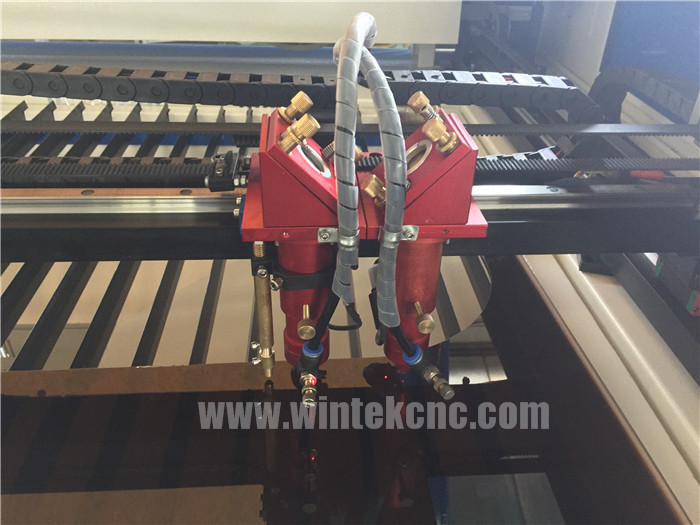

Double heads :

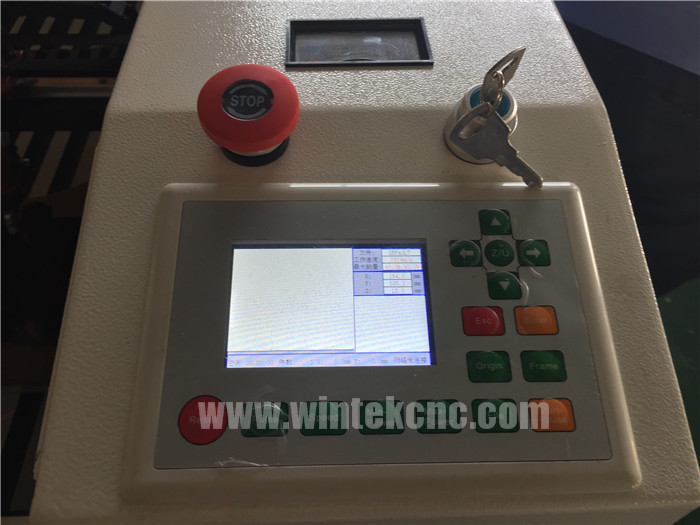

RD6442 controlling system :

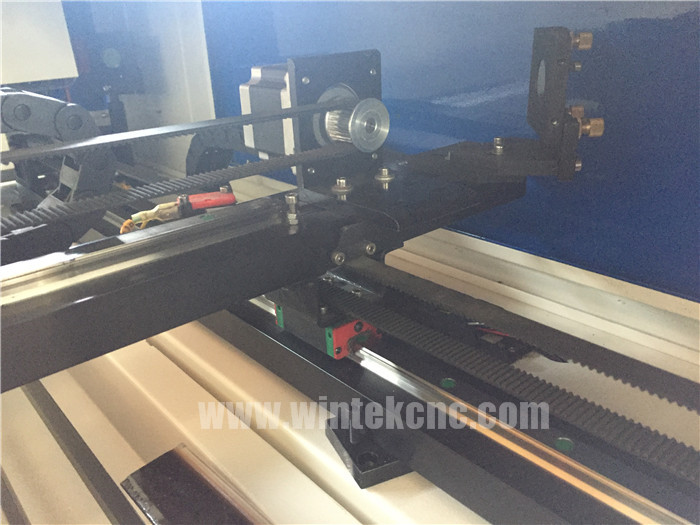

Transmission system :

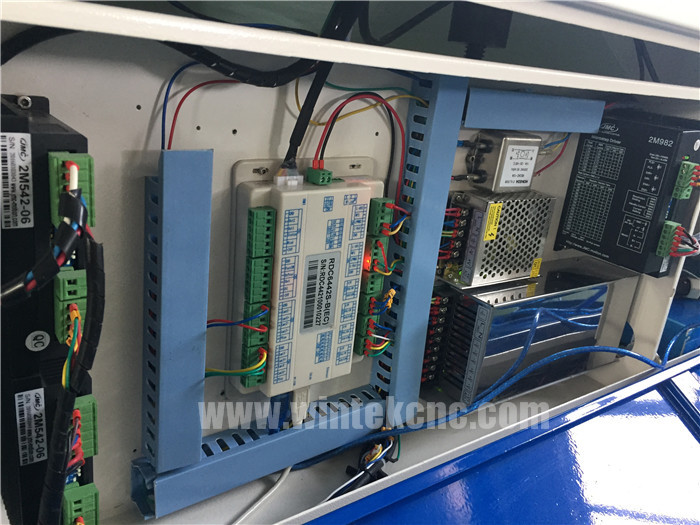

Controlling box of double head / tubes co2 laser machine :
Technical Parameter of double heads co2 laser machine :
|
Model
|
WTJ9060-2
|
WTJ1390-2
|
WTJ1610-2
|
|
Working Area
|
900*600mm
|
1300*900mm
|
1600*1000MM
|
|
Laser Power
|
Tube 1 : Yongli 150w-180w, for cutting
Tube 2 : Reci W1 (75w-90w), for engraving
|
|
Laser Type
|
CO2 Sealed Laser Tube , 10.6μm
|
|
Cooling Type
|
Water Chiller CW5200
|
|
Engraving Speed
|
0-60000mm/min
|
|
Cutting Speed
|
0-36000mm/min
|
|
Laser Output Control
|
0-100% Set by Software
|
|
Min. Engraving Size
|
Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm
|
|
Highest Scanning Precision
|
2500DPI
|
|
Locating Accuracy
|
≤+0.01mm
|
|
Controlling Software
|
RD6442S controlling system
|
|
Graphic Format Supported
|
DST PLT BMP DXF DWG AI LAS,etc
|
|
Compatible Software
|
CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
|
|
Color Separation
|
Yes
|
|
Drive System
|
High-precision 3-phase Stepper Motor
|
|
Auxiliary Equipments
|
Exhaust Fan and Air Exhaust Pipe
|
|
Power Supply
|
AC110V/220V+10%,50HZ/60HZ
|
|
Working Environment
|
Temperature:0-45C,Humidity 5-95%(No Condensate Water)
|
|
Option
|
Rotary, up-down table
|
Applicable industries of double heads co2 laser engraving cutting:
Available materials: acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble,
leather, cloth, double-color board, etc. nonmetal materials
Available Industry:
1. Stone Industry: marble, granite, white marble etc.
2.Artcrafts Industry: wood,bamboo, elephant's tusk,bone, leather, marble,sea shell etc.
3. Advertisement Industry: double color board,acrylic engraving and cutting,label engraving,crystal etc.
4. Model Industry: sand table constructtion model,plane model etc.
5. Packing Industry:rubber engraving,plastic,doubling plate,die board cutting etc.
6. leather and cloth processing Industry:compound leather,man-made leather,fabric,fur ,toy etc.
7. other industry : marble,granite,glass,crystal engraving,paper/greeting card cutting etc.
Samples of Co2 Laser Machine :
