Model: WTJ1610-S Category: Co2 Laser Engraving Machine
USD
2800-5600$ FOB Qingdao
Wintek stone/marble/granite laser engraving machine with special design and special table, can load heavy materials. Adopting up-down table too.
Application of China Stone/marble/granite laser engraving machine :
Applicable materials:
Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite,stone and tiles, leather etc
Applicable industry:
a. stone: marble, granite, white marble etc.
b. artcrafts: wood, bamboo, elephant's tusk, bone, leather, marble, sea shell etc.
c. advertisement: double color board, acrylic engraving and cutting, label engraving, etc.
d. model industry: sand table constructtion model,plane model etc.
e. packing: rubber engraving,plastic,doubling plate,die board cutting etc.
f. leather and cloth process:compound leather,man-made leather,fabric,fur ,toy etc.
g. other industry : steel , marble, granite, glass , paper/greeting card cutting etc.

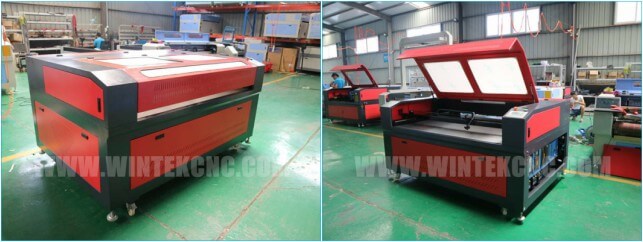

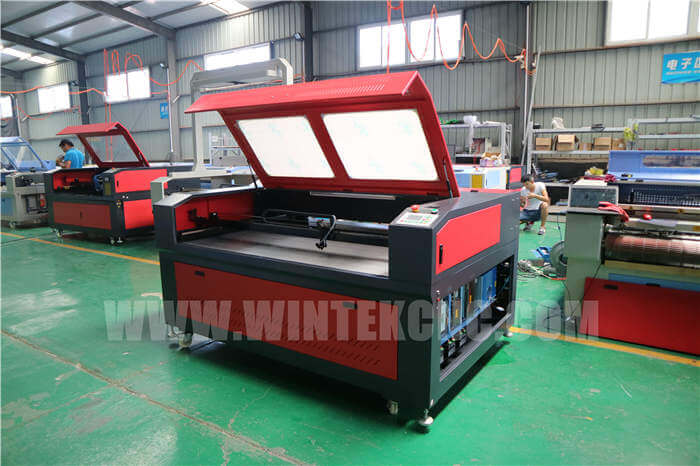

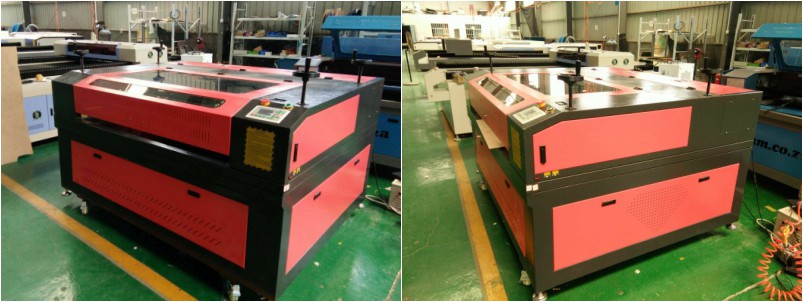

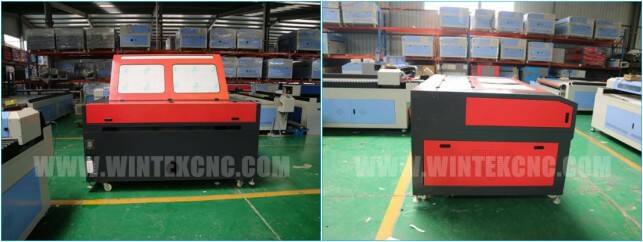

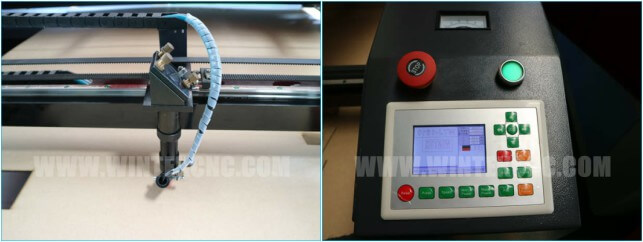

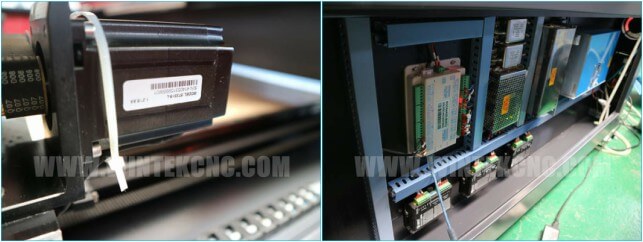

Stone marble granite laser engraving machine show :

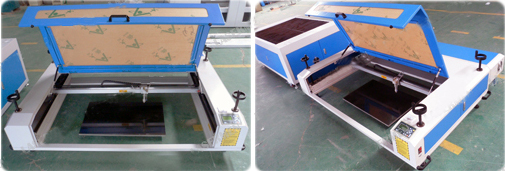

For heavy stone marble and granite engraving, we have special model :
Technical Parameter of Stone marble granite laser engraving machine :
|
Machine model: |
WTJ1610-S |
|
Laser type: |

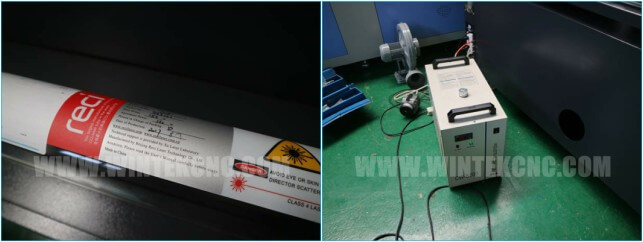

Sealed CO2 laser tube, wavelength: 10.64μm |
|
Laser power: |
60W / 80W / 100W |
|

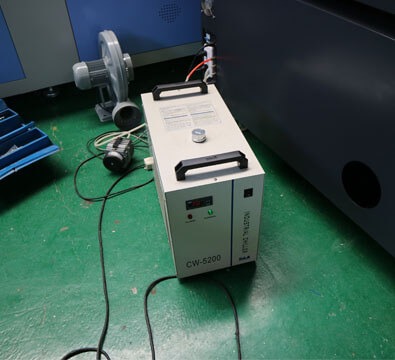

Cooling mode: |
Water Pump or Water chiller |
|
Laser power control: |
0-100% software control |
|
Control system: |
RD6442 controlling system |
|
Max. engraving speed: |
60000mm/min |
|
Max cutting speed: |
50000mm/min |
|
Repetition accuracy: |
0.01mm |
|
Min. letter: |
Chinese: 1.5mm; English: 1mm |
|
Table size: |
1600x1000mm, 1300*900mm, 600*900mm |
|
Working voltage: |
110V/220V,50~60Hz |
|
Working conditions: |
temperature: 0-45°C, humidity: 5%-95% |
|
Control software language: |
English / Chinese |
|
File formats: |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, *doc |
Machine features of stone marble granite laser engraving machine:

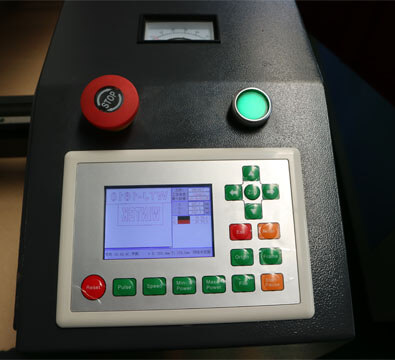

1.Advanced Ruida(Leetro) control system makes the machine easy to operate.
2.Intelligent processing cross-boarder protection function can prevent mechanical impact caused by the improrer-designed documents.

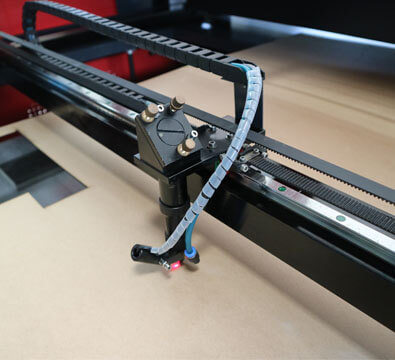

3.Taiwan linear rail guide and Shanghai Fulong belt make the engraving and cutting smooth.
4.Red light positioning device can accurately indicates the location of the processing of the laser head.
5.Having the function of recovering carving-point after power-outage .
