spindle rotate 180 degree wood foam moulding 3d carving 4 axis cnc router machine

Inquiries:

236

 Model: WTM1325-4 axis Category: 4 & 5 Axis CNC Router
Brand:
FOB Price:

USD

USD 17000$-36000$ FOB Qingdao
Port From: Qingdao,Tianjin,Shanghai,Guangzhou Payment Terms: TT(Telegraphic Transfer),LC(Letter of Credit),Western Union Skype to usSend a request

Product Details

Send a Request

This 4 axis cnc router machine is specially for 4D engraving, the spindle(A axis) can rotate +/- 90 degree, can make multi-kinds of surface which we can design with Software. With Syntec control system, Yaskawa servo motors, HSD air cooling spindle, Delta inverter ,Becker vacuum pum all components are from global leaders.

Spindle rotate 180 degree wood foam moulding 3d carving 4 axis cnc router machine

spindle rotate 180 degree wood foam moulding 3d carving 4 axis cnc router machine
wood foam moulding 3d carving 4 axis cnc router machine

Machine Introduction of 3d carving 4 axis cnc router machine :

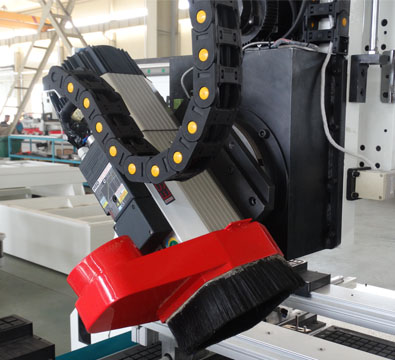

1.This machine is specially for 4D engraving, the spindle(A axis) can rotate +/- 90 degree, can make multi-kinds of surface which we can design with Software.

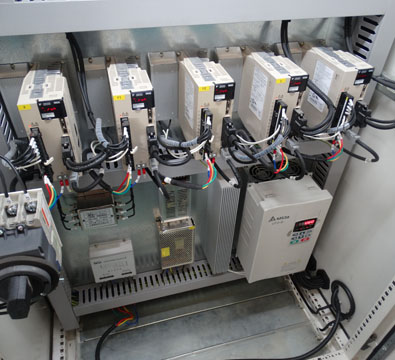

2.With Syntec control system, Yaskawa servo motors, HSD air cooling spindle, Delta inverter ,Becker vacuum pum all components are from global leaders.

3.With this machine, you can make different surface carving, arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, bended doors or cabinets.

4.With hard steel structure, it can work on MDF, Acrylic, wood, and some soft metal, cutting and engraving on Rosewood for furniture, indoor decoration.

Perfomance Parameters of 4 axis cnc router machine :

NO.

Description

Parameter

1

X,Y,Z Working Area

1300x2500x(300-700mm)*±180°

2

Table Size

1300×3000mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

4

X,Y,Z Repositioning Accuracy:

±0.01mm

5

Table Surface

Vacuum and  T-slot Combined (Option: T-slot Table)

6

Frame

Big Steel Tube Structure

7

X, Y Structure

Helical rack gear , HIWIN Linear guide

8

Z Structure

Imported Ball Screw , HIWIN Linear guide

9

Max. Power Consumption

(Without Spindle)  4.2Kw

10

Max. Rapid Travel Rate

40000mm/min

11

Max. Working Speed

30000mm/min

12

Spindle Power

HSD spindle 9.0kw air cooling spindle)

13

Spindle Speed

0-18000RPM

14

Drive Motors

Japan 850 W YASKAWA servo motor

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

SYNTEC Control System 6MB ( EZ4M optional)

18

Computer Interface

USB

19

Flash Memory

512M

20

Collet

ER25

21

X,Y Resolution

<0.01mm

22

Software Compatibility

UG , Power mill

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

4.1*2.3*2.6m

26

N.W.

2500KG

27

G.W.

2800KG

28

Optional Parts

Dust Collector/ Dust Hoods for three Axis

Vacuum Pump

Rotary System

Mist-cooling System

SIEMENS/DELTA/ Panasonic Servo Motors

Colombo Spindle

X:2.5m, Y:4m, Z:1.2m

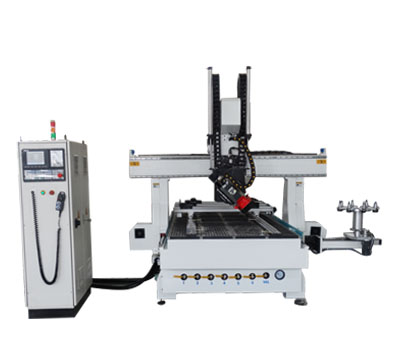

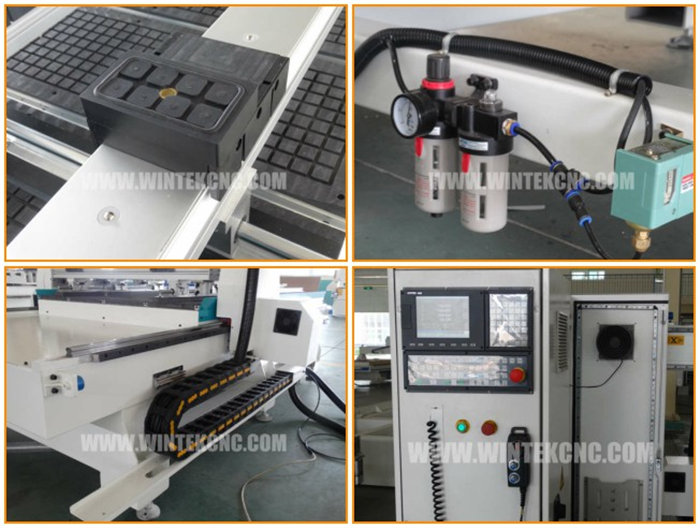

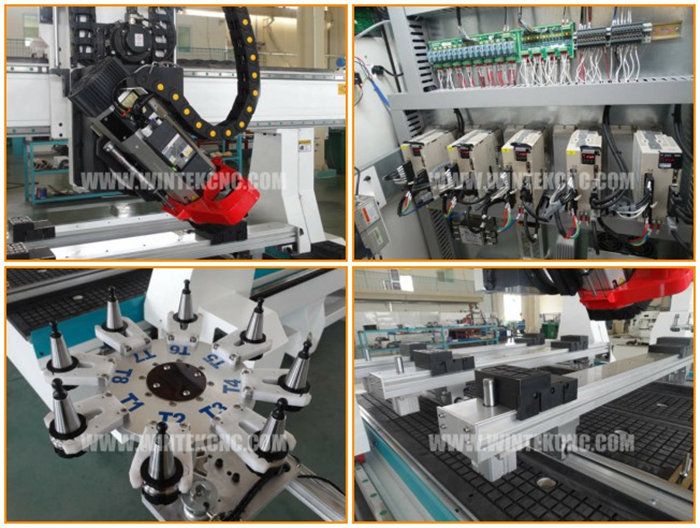

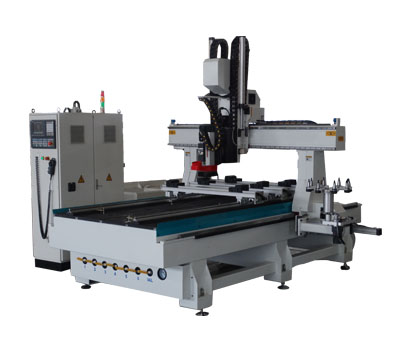

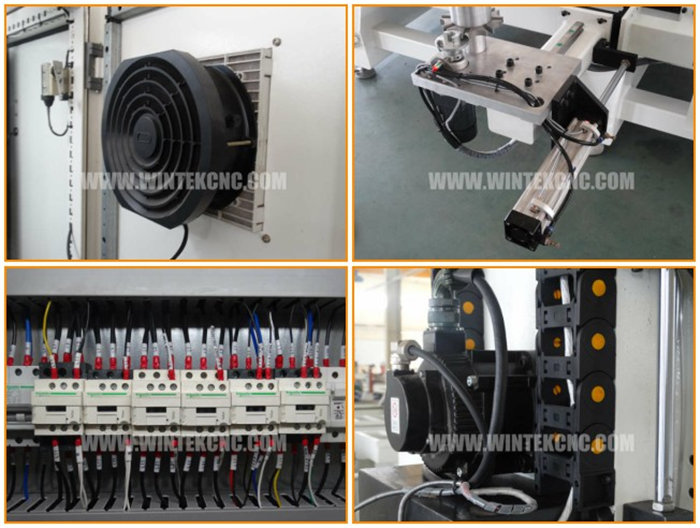

3d carving cnc router machine show :
spindle rotate 180 degree wood foam moulding 3d carving 4 axis cnc router machine
wood foam moulding 3d carving 4 axis cnc router machine
wood foam moulding 3d carving 4 axis cnc router machine for sale


Applicable of 4 axis cnc router machine :

1) Mould: wood,wax, wood, gypsum,foams,wax

2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair,doors and windows.

3) The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling, tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

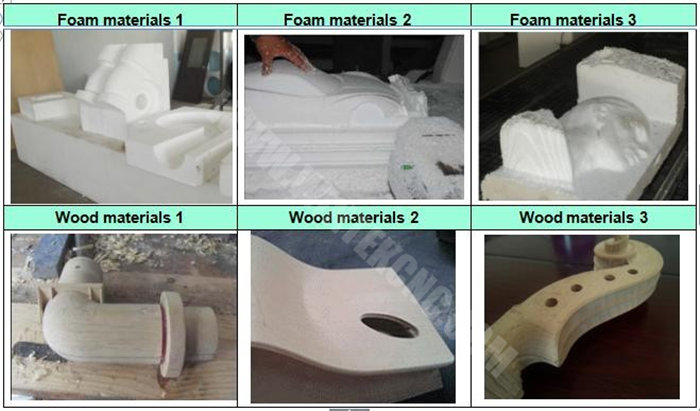

Samples of 4 axis cnc router machine :
sample of wood foam 3d carving 4 axis cnc router machine

Advantages of our wood foam 3d carving 4 axis cnc router machine :

1) Big steel tube structure, so the machine’s body is strong, reliable and durable. It is with large bearing capacity and long working life.

2) Top-quality components, to make the machine hig-precision and high-efficiency. HSD ATC spindle, Delta inverter, TBI ball screw,Yaskawa servo motors , Syntec control system and so on, which keep the machine in best condition even after working for many years.

3) Humanized and beautiful designing. Breakpoint specific memory to keep the carving status when power off, processing time forcast and other functions in case of the accidental power outages. Stop Emergency Buttons , emergent shutdown during unexpected accidents and do no harm to human. Colorful machines’ appearances and high-quality paint make the machine beautiful.

4) Easy and safe operation and low maintenance cost. To make you learn quickly how to operate safely the machine, free training in our factory will be offered. Less time and less money will be cost on the maintance because of the top quality of the machines.

5) Many optional configuration and OEM service available. According to your requirement, different

configurations will be offered. OEM service is available for you.

Checking more models :  4 axis cnc router machine
