Model: WTM-2040ATC Category: ATC CNC Router
USD
15000-22000$ FOB Qingdao
Wintek 2040 cabinet woodworking atc cnc router machine for sale can be customized according to your requirement
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

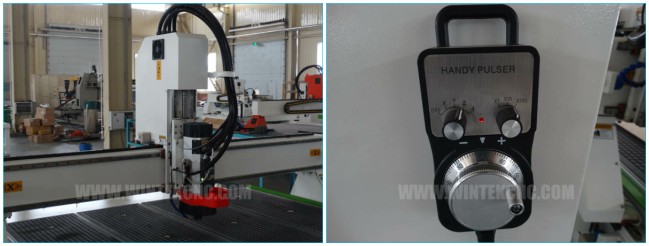

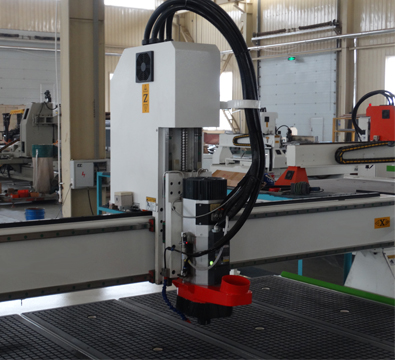

1.Spindle ----Italy HSD 9Kw spindle (Different brands can be selected according to customer's requirements.)

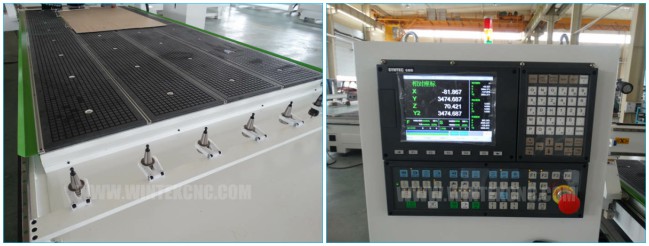

2.SYNTEC control system------It is from Taiwan with high performance and competitive price
3.Delta servo motor and drives / 800W Panasonic Servo motors/ 850W Yaskawa Servo
4.HIWIN linear guide ------ made from Taiwan,used for linear reciprocating stadium
5TBI Ball screw from Taiwan------high precision and long life
6.Automatic Tool Calibration -----To guide rail and slide block , make it run better
7.Schneider electrical components -----original brand from France
8.Japanese Omron Switch ------- long life
9.SHIMPO Reducer from Japan----More powerful and higher precision
10.Dust collector------Clean up while processing

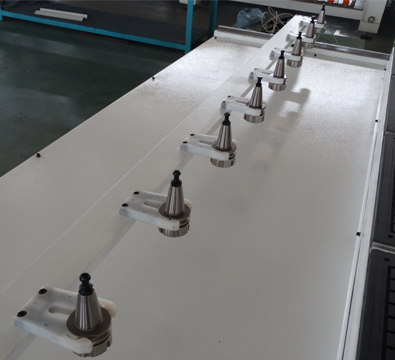

11.ATC------ disc tool magazine with 16 positions

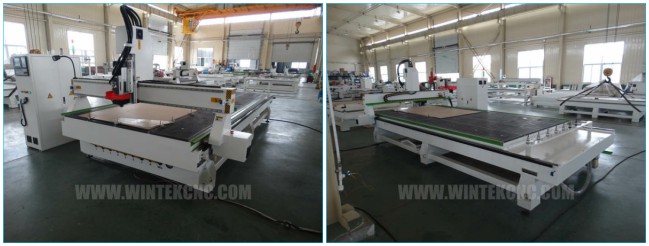

Woodworking atc cnc router machine show :
| No. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 2 | Table Size | 1330×3040mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |

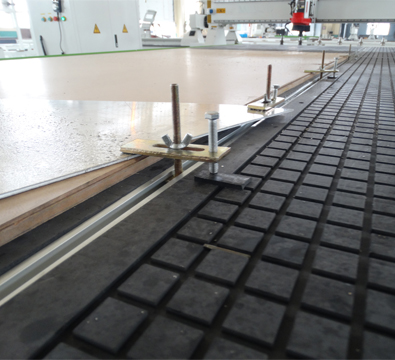

| 5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot table) |
| 6 | Frame | Welded structure |
| 7 | X, Y Structure | Helical Rack and Pinion Drive, Taiwan Hiwin Linear Rail |
| 8 | Z Structure | Taiwan Hiwin Rail Linear Bearings and TBI Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 4.5kw |
| 10 | Max. Rapid Travel Rate | 45000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | China 9kw Air-cooling ATC Spindle |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Taiwan Delta Servo Motors 750W |
| 15 | Working Voltage | AC 380V/50/60Hz,3PH or AC 220V/50/60Hz |
| 16 | Command Language | G Code |
| 17 | Operating System | NCStudio Control System 63A |
| 18 | Computer Interface | Computer interface |
| 19 | Flash Memory | 128M |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3300X2250X2200mm |
| 26 | N.W. | 1450KG |
| 27 | G.W. | 1750KG |
| 28 | Optional Parts | 3.8KW / 7KW HSD Auto Spindle |
| Dust Collector | ||
| Vacuum Pump | ||
| Rotary System | ||
| 800W Panasonic Servo motors/ 850W Yaskawa Servo |
