Model: WTG-9015 Category: Advertising CNC Router
USD
2900$-3500$ FOB Qingdao

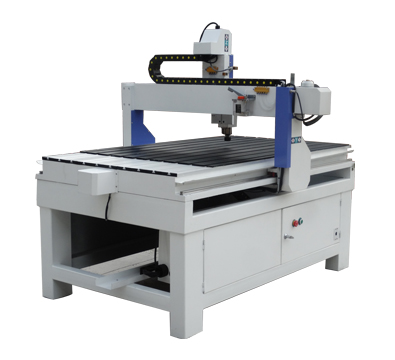

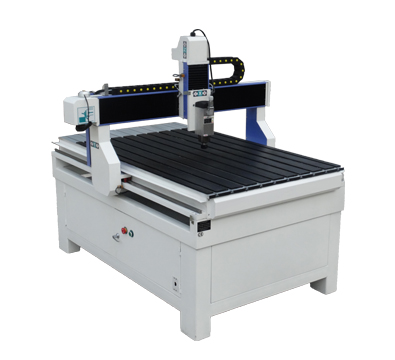

Wintek 9015 desktop hobby wood cnc router can process wood, mdf, acrylic,pvc and so on. Machine size and configurations can be customized according to your working.
Application of 9015 hobby desktop wood cnc router for sale:
This 9015 cnc router is a user-friendly desktop engraving machine for those with limited space and /or a limited budget.
The Computerized CNC Engraving and Cutting Machine is suitable for various materials, such as MDF board, WOOD, PMMA or other plastic, Acrylic , native wood, PVC, wood, composite board plywood. It can be used widely to process or make adverstising signs, PCB, nameplates, badges, seals, bronzing plate, aluminium alloy, acryplates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc.
Exquisite 9015 is a miniature version of mobile longmen structure of carving machine, put on you computer is like puting a printer or scanner that coordination, and can completely as a compute peripherals tools, anywhere, anytime, help you to design intent fast real appear. Nonmetal materials on the milling, and it can also be used to carving simple PCB/CNC.
Features of hobby desktop wood cnc router for sale:
900*1500*120mm working area
2.2kw Air Cooling Spindle
3.7KW Fuling inverter
Weihong NK105 DSP Controlling System
Stepper Motor 450B
Stepper driver YAKO 2608
Taiwan HIWIN linear guide rails #20
Helical rack gears for X,Y axis
Taiwan TBI ball screw for Z axis
T-slotworking table
Manual tool sensor calibration
Type 3 and Artcam software
Japan OMRON limit switch for X,Y,Z axis
Technical Parameter of hobby desktop wood cnc router for sale :
|
Size |
Working Area(XY) |
900*1500mm (customized) |
|
Working Area(Z) |
120m or more |
|
|
Accuracy |
Positioning Accuracy |
0.02mm |
|
Repeatability |
+/- 0.05mm |
|
|
Control Part |
3 Axis Control Motor |
AC Stepper Motor (Servo motor optional) |
|
Controller |
Weihong NK105 DSP / Nc-Studio / Mach 3 |
|
|
Interface |
USB and RJ45 |
|
|
Spindle Motor |
Output |
2.2kw , 18000RPM |
|
Collet |
ER25, Max 20mm |
|
|
Table Structure |
Material Hold Down |
T slot |
|
Traverse System |
Traverse System |
Linear Guide on 3 axis, Rack and Pinion on Y, |
|
Max. Traverse Speed |
45m/min |
|
|
Power Source |
|
380V/3phase; 220V/3phase |
|
Optional |
Vacuum table |
Vacuum water pump or vacuum air pump |
|
Command Language |
|
G and M code |
Details of hobby desktop wood cnc router for sale :

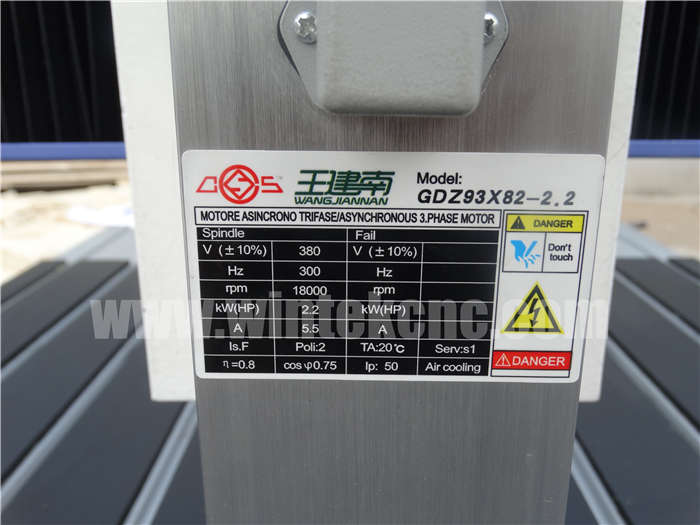

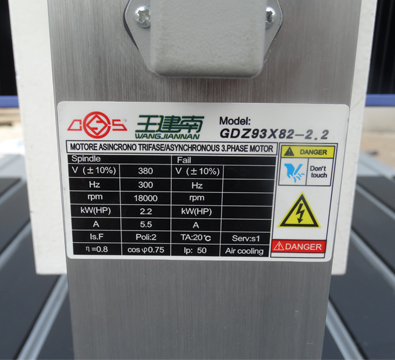

1--2.2kw CS air cooling spindle :

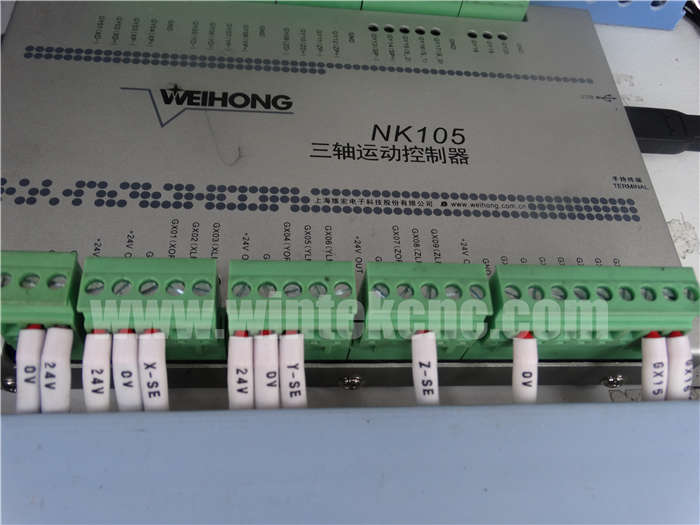

2--Weihong NK105 DSP controlling system :

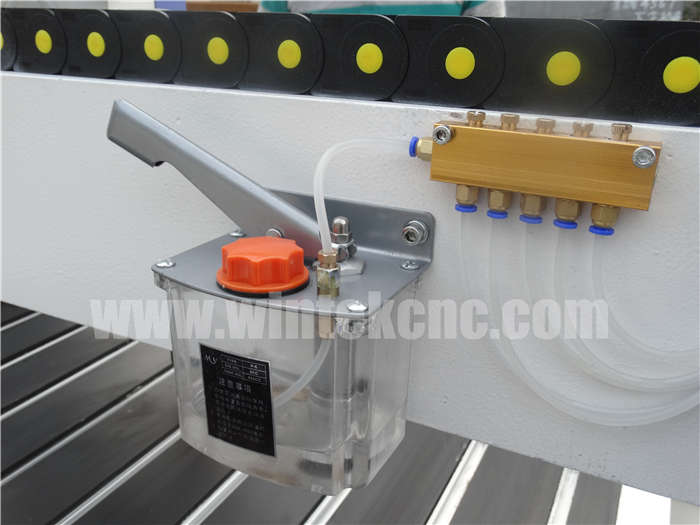

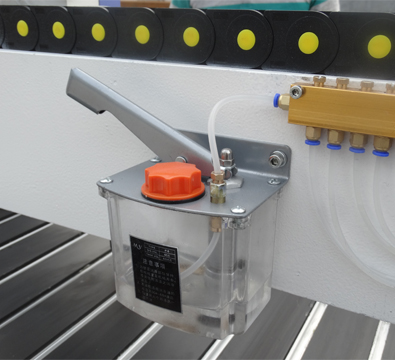

3--Manual lubrication system of China 9015 hobby desktop wood cnc router :

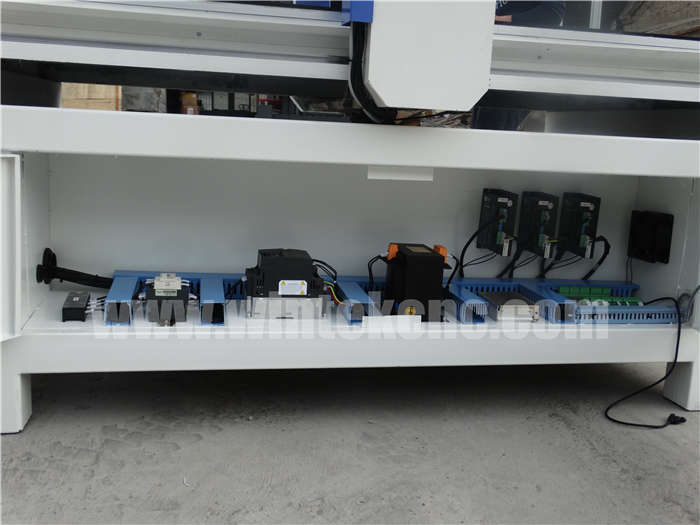

4-- Controlling box of the machine :
5-- Package of cnc router machine 9015 :
If you like this 9015 hobby desktop wood cnc router, please feel free to contact us.
