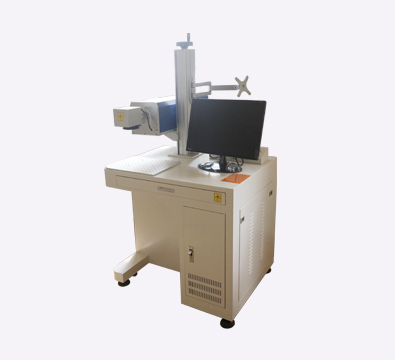

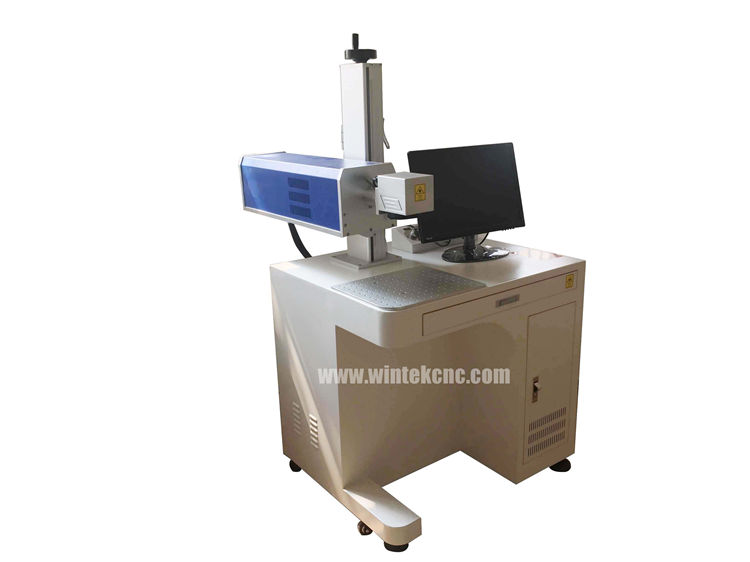

Model: WTJ-SYNARD-3OW Category: Co2 Laser Marking Machine
USD
4000$-8000$ FOB Qingdao
Synrad Galvo Co2 Laser Marking Machine 10w 30w 60w is suitable for marking wood,plywood,paper,plastic,leather and many different non-metal materials.
Application of Synrad Galvo Co2 Laser Marking Machine :
Applicable materials:
Suitable for wood,paper,leather,cloth,plexiglass,epoxy,acrylic,unsaturated polyester resin and other non-metal materials.
Applicable industries:
Widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package
and other industries, can be combined with streamlinefor online marking.
|
Machine Type |
CO2 Laser Marking Machine |
||||
|
Machine Model |
WTJ-SYNRAD-10W |
WTJ-SYNRAD-30W |
WTJ-SYNRAD-60W |
WTJ-SYNRAD-100W |
|
|
Laser Output Power |
10W |
30W |
60W |
100W |
|
|
Laser Type |

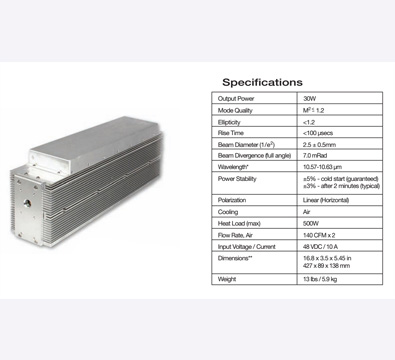

American metal RF CO2 Laser Tube |
|
|||
|
Laser Tube life Time |
45000+ hours |
|
|||
|
Standard Working Area: |
110mm×110 mm |
||||
|
Optional Working Area: |
175mm×175mm |
||||
|
Marking Depth: |
0.01~0.3mm |
||||
|
Marking Speed: |
7000mm/second |
||||
|
Repeated Accuracy: |
0.01mm |
||||
|
Laser Wavelength: |
10.64um |
||||
|
Minimum Line Width: |
0.015mm |
||||
|
Power Supply: |
380V/220v(50HZ-60Hz) |
||||
|
Machine Power: |
2KW |
||||
|
Dimensions (L×W×H) |
Laser Optical System |
240×1280×1200 (mm) |
|||
|

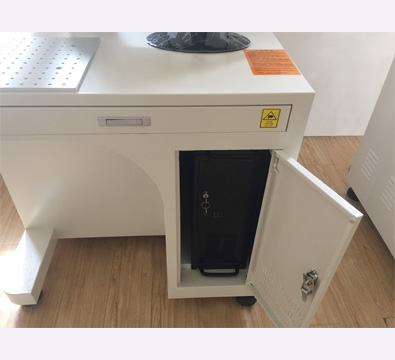

Control Cabinet |
590×560×800 (mm) |
||||
|
cooling System |
AIR Cooling |
||||
Main Features of synrad cnc co2 laser marking machine :
CO2 laser is a gas laser with CO2 as laser medium and wavelength near 10.6um. When high voltage is added to electrodes, discharging through the cavity will excite CO2 molecules and produce 10.6um laser radiation. The laser can be directed to process materials.
①The machine takes CO2 laser tube as the laser source. By 2D fast-speed scanning mirrors swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by F-θ lens to form images and realize marking and graph processing.
②Using metal CO2 laser tube, with exquisite beam quality, stable power output, high marking precision, long working life time, and can work for 20,000 hours free of maintenance, then can be recharged by filling CO2 gas, suitable for users requiring batch production and high marking precision. Once invested, whole-life benefited.
③Using fast-speed scanning mirrors, it can be the graph in shortest time finish fine marking process.
④Using the simple structure, abrasion and rusty against component, the system have the most stable performance and moving precision.
⑤It can configure automatic configuration fixture, baiting production line.
⑥It can mark data, serial number & bar code automatically.
⑦Marking clearly and not easy to wear.
⑧Use the computer control, user friendly interface, easy operation.
⑨Accept customizing.
⑩The extensive equipment performance,competitive of working continuously for 24-hour made it meet the demand of massive on-line and off-line industrialized production.

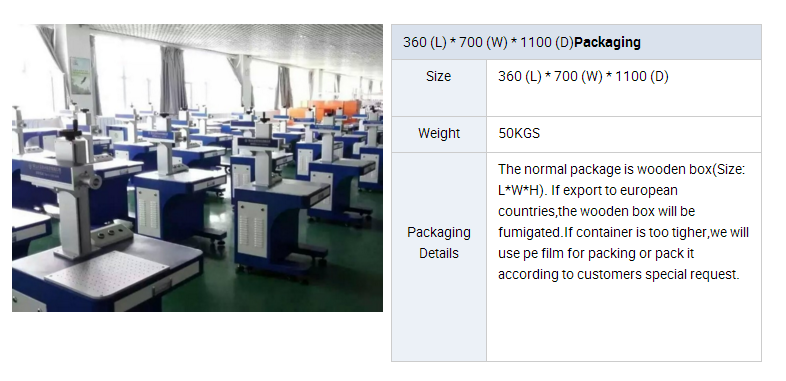

Package of Synrad Galvo Co2 Laser Marking Machine :
