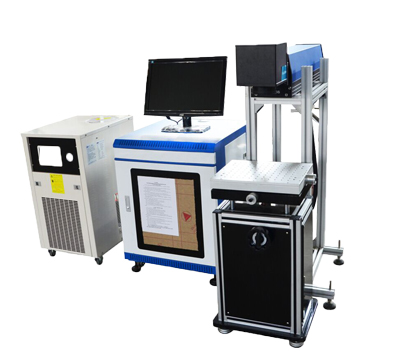

Model: WTJ-60C/100C/130C Category: Co2 Laser Marking Machine
USD
3400$-5600$ FOB Qingdao
CO2 are gas lasers which are stimulated electrically. They operate at the 10,600 nm wavelength, and are mostly used for marking applications on non-metallic materials and most plastics.
The CO2 lasers are largely used in drug, food, integrated circuits,electrical appliances, drug, or alcohol packaging, mobile communications, and electronic components.
CO2 are gas lasers which are stimulated electrically. They operate at the 10,600 nm wavelength, and are mostly used for marking applications on non-metallic materials and most plastics.
Videos of co2 laser marking machine :
CO2 Laser Marking System Features
45,000+ hours of laser life
Mark organic materials such as wood and glass
Small 19" rack mount footprint makes it easy to integrate
Cost effective solution
140mm square mark field (other sizes available)
No consumables and minimal maintenance help reduce operating costs
Real-time visible live pointer for previewing your mark
Compatible with a variety of enclosure options
LEC embedded controller
|
Model |
WTJ-60C |
WTJ-100C |
WTJ-130C |
|
Work Area (cm) |
10x10/16x16/22x22/30x30 cm(Optional) |
||
|
Laser Power |
60w / 100w / 130w |
||
|
Wavelength |
10640nm |
||
|
Control system |
Original BJJCZ controlling system |
||
|
Min Character |
0.4mm |
||
|
Marking Speed |
≤7000mm/s |
||
|
Marking Depth |
≤0.3mm |
||
|
Repeat Precision |
±0.003mm |
||
|
Cooling Style |
Water Cooling |
||
|
Power Supply |
220V(±10%)/50Hz/15A |
||
|
Gross Power |
<1.5KW |
||
|
Operating Temperature |
10℃-45℃ |
||
|
Software Supported |
Special design powerful laser marking software, with simple operating menu, may print each Chinese and English fonts, PLT, DXF, BMP document, the sequence number (automatic sequence arranges), the bar code and the two-dimensional code. |
||
|
Standard Fittings Parts |
Simple up/down working platform, cooling, controlling systems and 15 LCD |
||
|
Warranty |
2 years |
||
|
Dimension (cm) |
120x33x122 (Optic System) |
||
|
56 x84 x83 (Control System) |
|||
Applicable Materials:
This Co2 Laser Marker Machines can be used in wood, paper, leather, cloth. Plexiglass, epoxy, acrylic, plastic, ucsaturated polyester resin and other non-metal materials
Applicable Industry:
This series Co2 Laser Markers Machine is widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package and other industries, can be combined with streamline for online

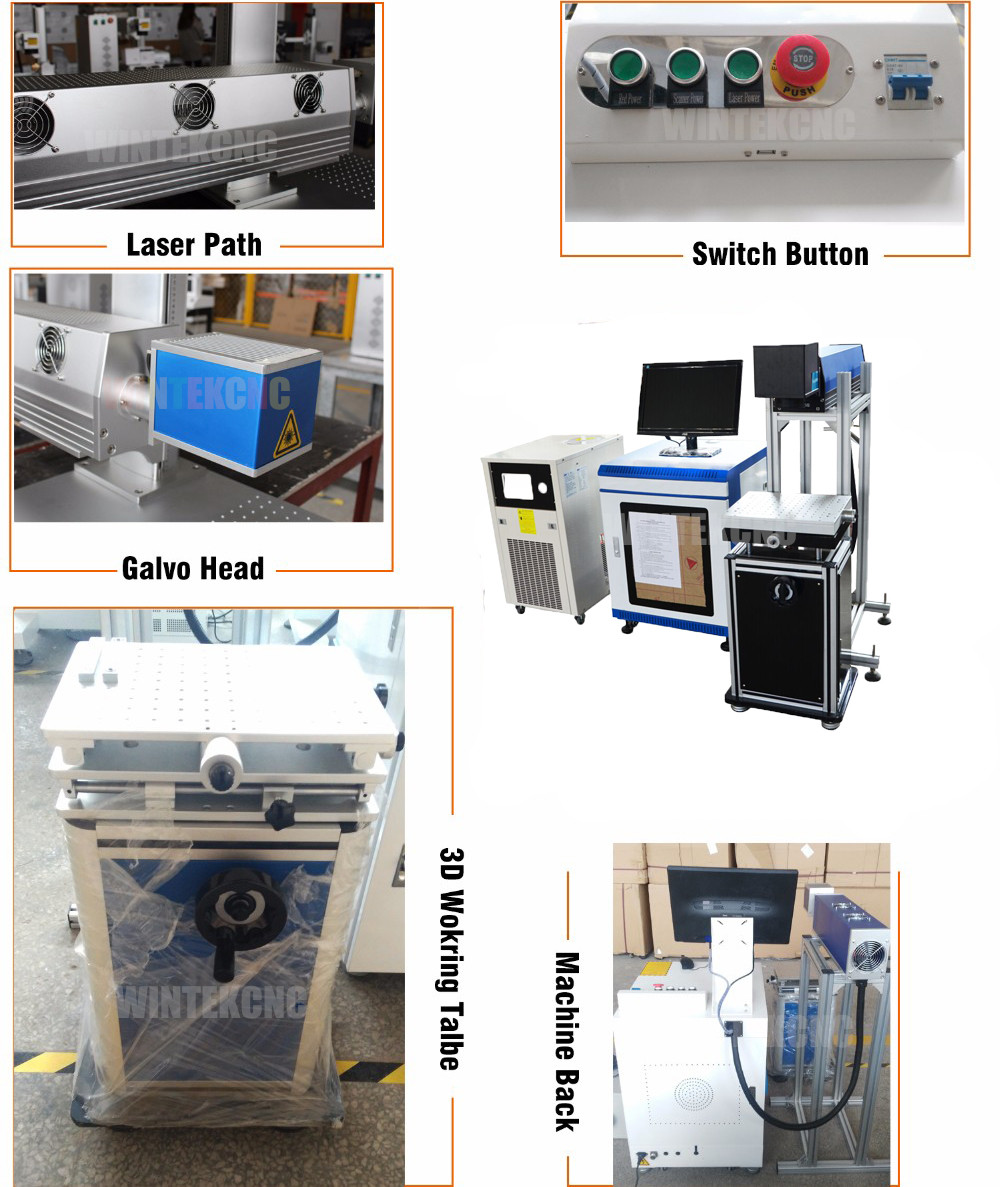

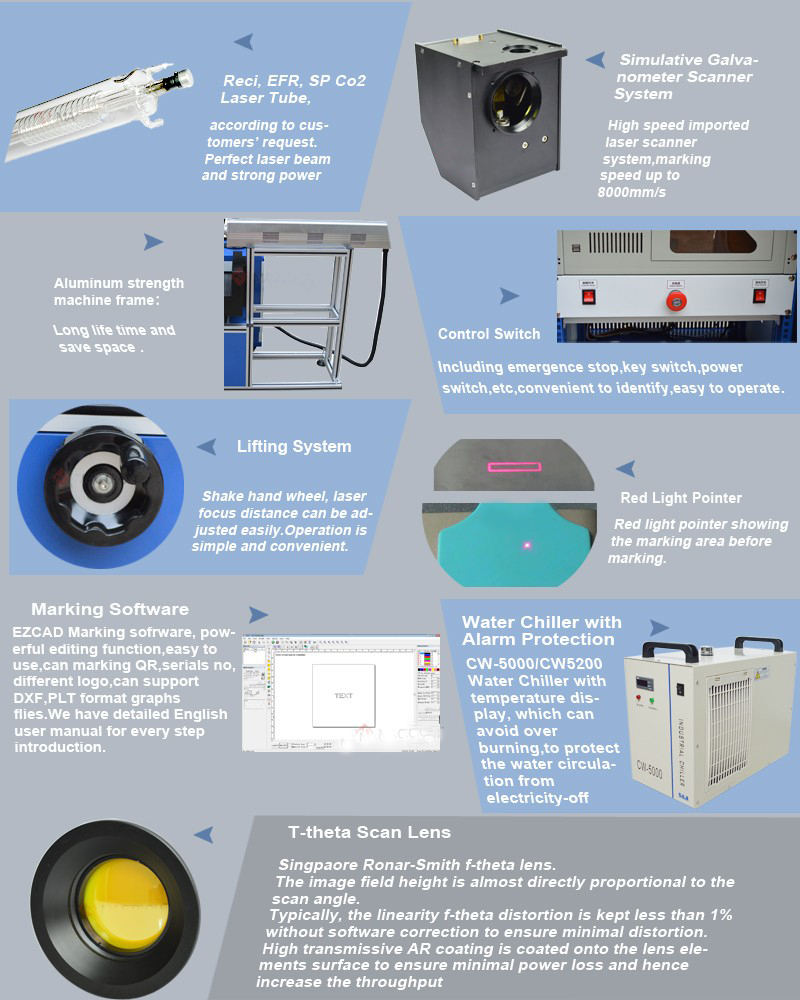

Details of Co2 Laser Marking Machine :

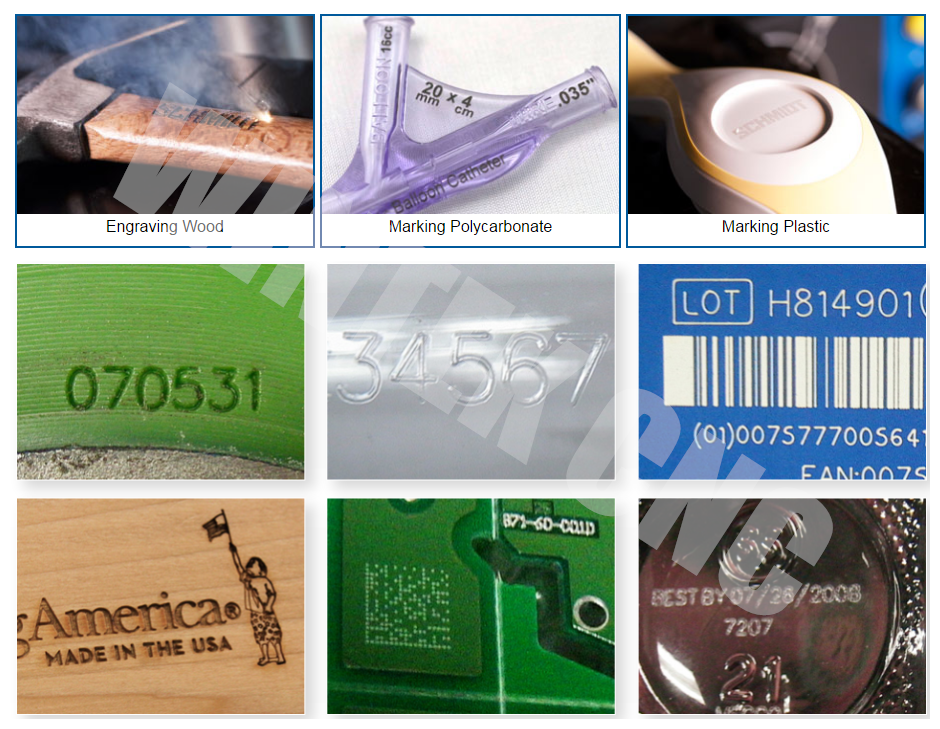

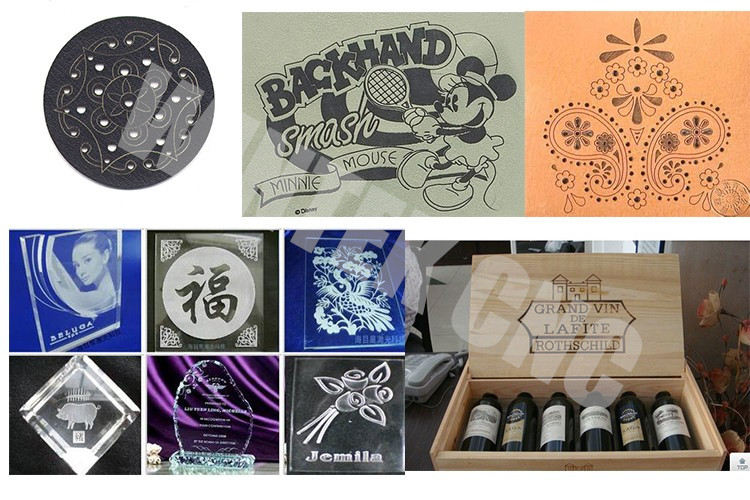

Samples of co2 laser marking machine :
