China portable mini Raycus IPG 10w 20w 30w 50w fiber laser marking machine

Inquiries:
240
Model: WTJ-20F Category: Fiber Laser Marking Machine
Brand:

FOB Price:
USD

4500$-6500$ FOB Qingdao

Port From: Qingdao,Shanghai,Tianjin,Guangzhou Payment Terms: TT(Telegraphic Transfer),LC(Letter of Credit),Western Union Mail to us Skype to us Send a request

Product Details

Send a Request

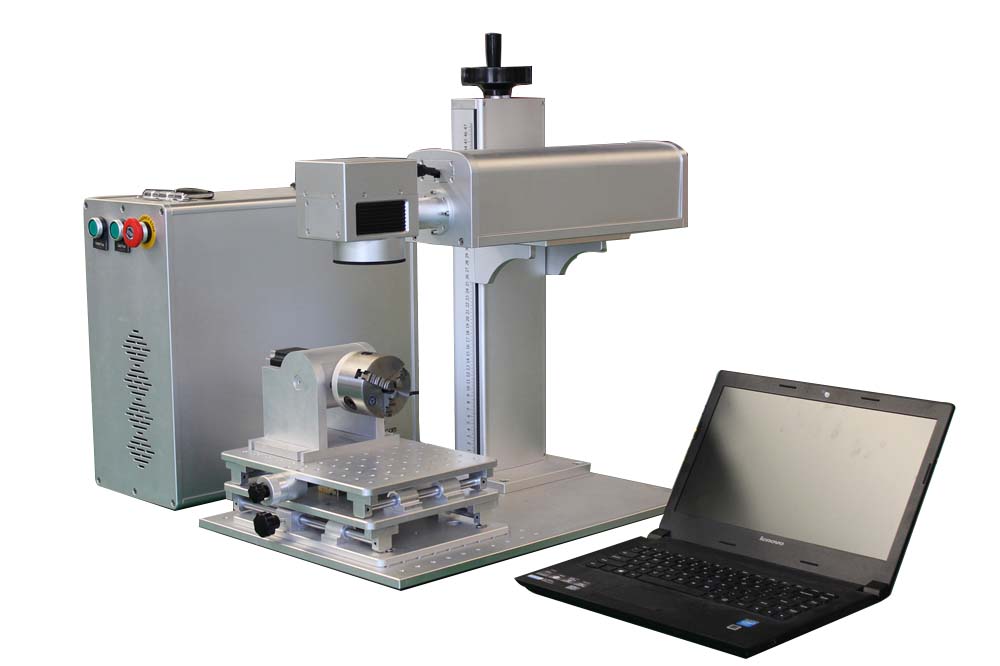

10w 20w 30w 50w portable mini fiber laser marking machine is suitable for metal and hard plastic engraving,which can mark QR, Bar cod, series number, rotary marking, even can be a flying marking machine if you need.

Application Materials of fiber laser mraking machine :

(1) Metal : Cast iron, stainless steel, aluminum, magnesium alloy, copper, nickel plating, galvanized and so on. Application Examples : Mobile phone decoration, MP4 shell, hardware pieces, hutch defends hardware, clock and watch shells, medical equipment , tools, accessories, jewelry accessories, auto parts etc.

(2) Non-metal : ABS, PC, PE, PP, Epoxy resin. Application Examples : Keyboard, buttons, charger, electronic components, integrated circuit (IC), electrical appliances, etc.

Main Features of fiber laser marking machine :

1.High speed with galvanometer;

2.Small volume,light weight;

3.Low power,consumption power is less than 500w;

4.Completely air cooling ,low energy;

5.No influence of the srvere environment and temperature change.If no power ,battery and car cigarette lighter can be used for working;

6.Greatly reduce the depreciation cost,satisfying customers' stable large quantities producing.

Samples show of fiber laesr marking machine :
10w 20w 30w 50w fiber laser marking machine sample

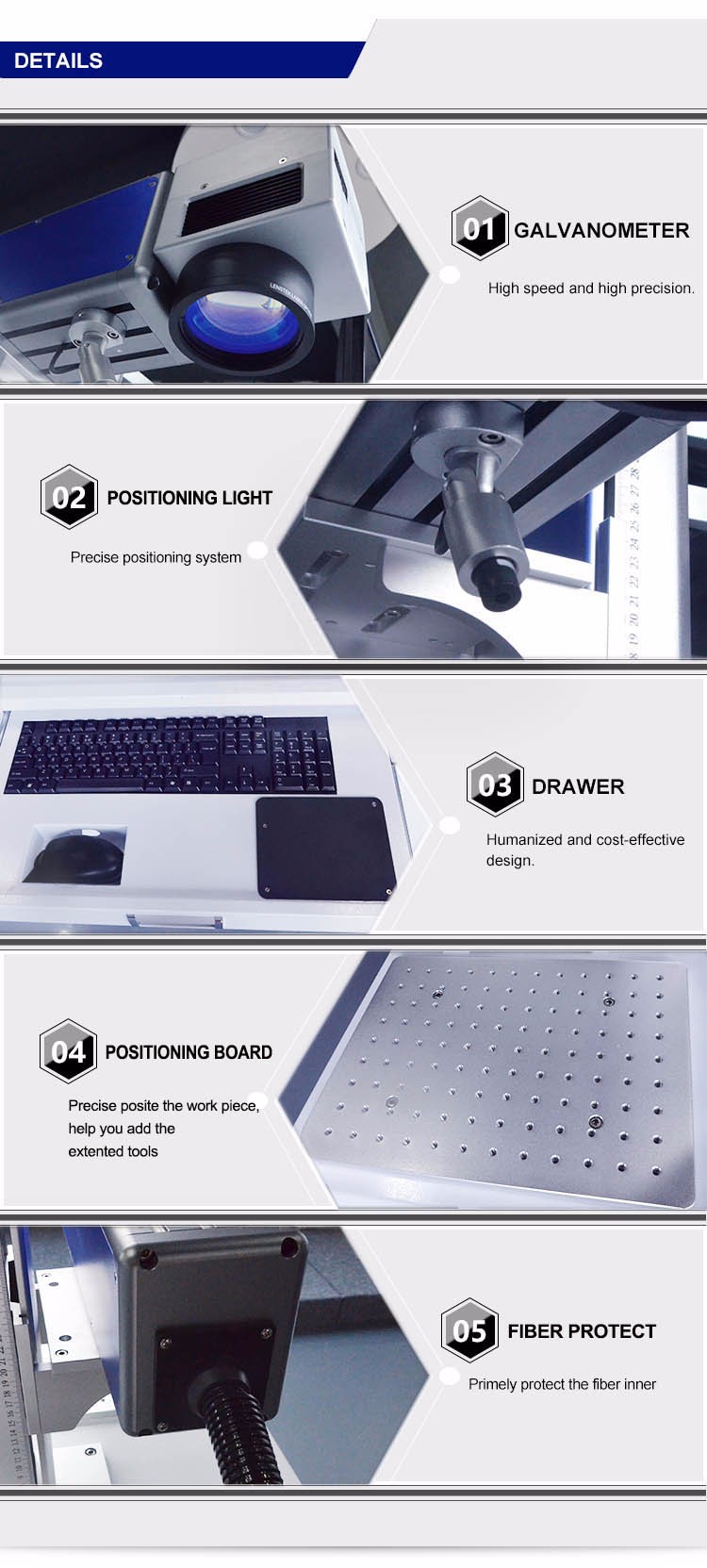

Introduction of fiber laser marking machine :
details of fiber laser marking machine
Technical Parameter of fiber laser marking machine :

Model	WTJ-20F	WTJ-30F	WTJ-50F
Marking area	110*110mm	110110mm/ 200200mm/ 300*300mm	110110mm/ 200200mm/ 300*300mm
Laser wave length	1064nm
Frequency of pulse	20KHz~100KHz
Max marking depth	≤0.2mm(according to power and material)
Marking speed	0-9000mm/s
Minimum line width	0.01mm
Marking content	Text,pattern,date,bar code,etc
Minimum character	0.2mm
Repeated accuracy	±0.001mm
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Power supply	AC220V±10% 50Hz,or AC110V±10% 60Hz
Operation system	Microsoft Windows XP or Windows 7
Operation temperature	5℃-40℃
Supply Voltage	220V/50Hz/10A
Cooling method	Air cooling
