Home > Product > CNC Router > Multiheads CNC Router >

China four spindle cnc router machine,Multi spindle cnc router for sale

Inquiries:

466

Model: WTM1325-4H Category: Multiheads CNC Router
Brand:
FOB Price:

USD

6600$-$8200 USD FOB QINGDAO

Port From: Qingdao,Tianjin,Shanghai,Guangzhou,all china port Payment Terms: TT(Telegraphic Transfer),LC(Letter of Credit),Western Union,alibaba Skype to usSend a request

Product Details

Send a Request

Wintek provide many different solution for multi spindle cnc router machine, four spindles, three spindles, two spindles are both available. For wood furniture working, it is a good choice to provide efficiency

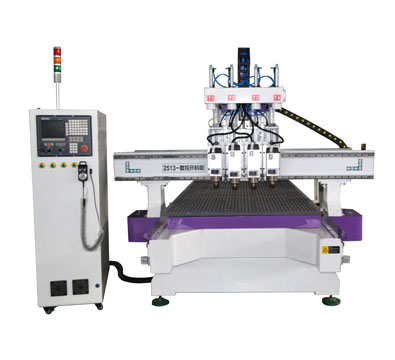

China four spindle cnc router machine,Multi spindle cnc router for sale

4x8 cnc router with 4 spindles for sale for wood carving.jpg4x8 cnc router with 4 spindles for sale for wood carving 2.jpg


Advantages of four spindle cnc router machine,Multi spindle cnc router for sale:

1. Good design which is very important for router longer lifetime using.

2. 10~12mm Heavy duty Industrial Class Strong Body, very durable

3. The machine has two spindles, can help to finish different works for you. the two spindles work one by one, it is a simple automatic tool changer machine price is economic than ATC



Features of four spindle cnc router machine,Multi spindle cnc router for sale:

--1300*2500*200mm effective working area


--4.5kw HQD or CS air cooling spindle (4 spindles)


--Fuling inverter


--FL118 stepper motor and YAKO2811 big driver


--DSP A18 control system


--20mm original Sweden SKF group international advanced self-lubricant linear guide


--Vacuum and T-slot working table


--Newest double bags dust collection system with CE certificate


--Auto lubrication System; Mist spray cooling system; 5.5kw water vacuum pump



Optional Parts


1. Oil/Water Mist Cooling Sprayer
It is suitable for cutting or engraving soft-metal (like aluminum and cooper), stone(marble) etc material, has cooling effect.

2. Spindle cover and Dust collector

They are designed for human operation protection and promise clean table surface, save maintenance time for you.

3. Pump

We can provide vacuum pump or water circulation pump for your choice.

4. Rotary Device
It can engrave cylindrical object.
The rotary device’s diameter, length and position can be customized according to your requests.



-------Technical Parameter-------



NO.

Description

Parameter

1

X,Y,Z Working Area

1300x2500x200mm
four spindle cnc router machine,Multi spindle cnc router for sale

2

X,Y,Z Traveling Positioning Accuracy

±0.05mm

3

X,Y,Z repositioning Accuracy

±0.05mm

4

Table Surface

Vacuum table (T-slot table optional)

5

Frame

Heavy duty Square pipe Welded Structure

6

X, Y axis transmission

Precision gear rack



Z axis transmission

Tawain TBI ball screw

7

Max. Travalling speed

40000mm/min

8

Max. Working Speed

20000mm/min

9

Spindle Power Motor

4.5KW air cooled spindle

4 spindles power can be different

2.2kw, 3kw,5.5kw,7.5kw, 9kw optional

10

Spindle speed

0~18000RMP/MIN

11

Drive Motors

Stepper motor and leadshine driver

Japanese Yaskawa servo motor and driver 750W optional

12

Working Voltage

AC380v

13

Controller

Syntec controller

Original Nc-studio controlling system / NK200/ NK300 optional

14

Command Language

G code

15

Interface

USB

16

Flash Memory

128M( U Disk)

17

X,Y Resolution

<0.01mm

18

Software Compatibility

Artcam software

19

Running Environment

Temperature: 0℃~45℃
Relative humidity: 30%~75%

-------Machine Details-------

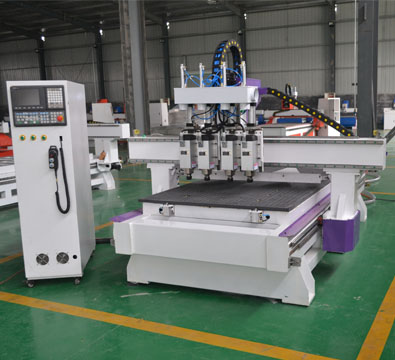

1. FOUR pcs 4.5kw CS air cooling spindle :

Air cooled spindle is more suitable for woodworking than water cooled one with higher cutting speed and higher precision.

It can meet all kinds of high precision engraving mand. Italy HSD spindle is optional. Power of four spindles can be different.

 four spindles of 4x8 cnc router with 4 spindles for sale for wood carving.jpg

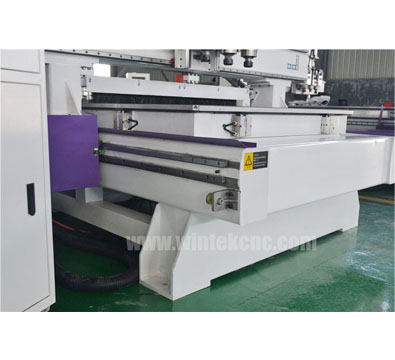

2. Heavy duty machine body

Heavy duty can keep whole machine stable and no shake when machine running.

heavy duty structure of x8 cnc router with 4 spindles for sale for wood carving.jpg

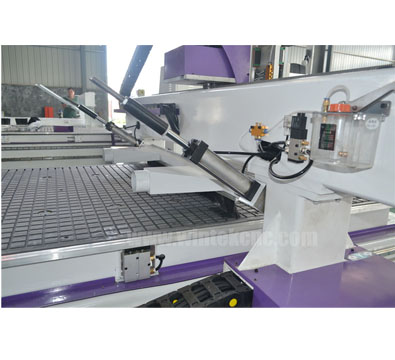

3. Material pushing system

It can push the material to blanking platform automatically, save your time and energy. .

pushing system of 4x8 cnc router with 4 spindles for sale for wood carving.jpg

4. Dust extraction part

This part can keep machine table and your material clean.

dust extraction part of 4x8 cnc router with 4 spindles for sale for wood carving.jpg


Applications of China multi spindle cnc router machine for sale:

Applicable Materials:Wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
China four spindle cnc router machine,Multi spindle cnc router for sale sample


Our Services :

1. 24 hour Technical support by phone, e-mail or MSN around the clock.

2. Friendly English version manual and operation video CD disk.

3.7-15 working days after down payment or full payment.

4. Machine will be adjusted before it is delivered; operation disk/CD was included.

5. Our technician can give you remote guide online (Skype or MSN) if you have any question.

6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
