Model: WTM1325-2 Category: Multiheads CNC Router
USD
4900-10000$ USD FOB Qingdao

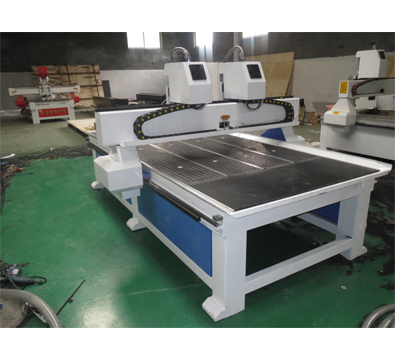

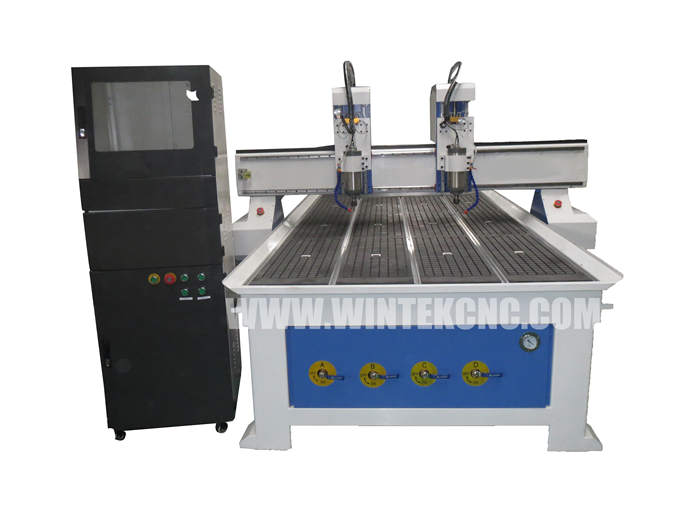

Wintek double heads 4x8ft cnc router is a good choice for wood furniture working. Spindle can work together, can improve working efficiency.
Features of double heads 4x8ft cnc router:
Parameters of double heads 4x8ft cnc router:
| Descriptions | Parameters |
| Modle | WTM1325-2 |
| Working Area | 1300*2500*200mm |
| Voltage | 380V, 3phase, 60Hz |

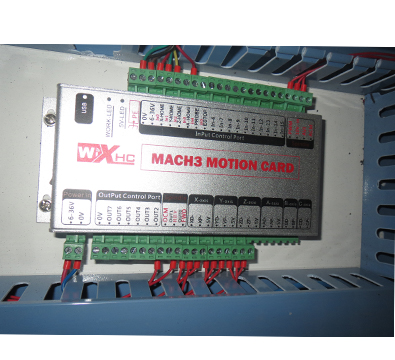

| Control System | DSP control system / Mach3 controller |
| Spindle | 3kw CS water cooling spindle / air cooling spindle optional |

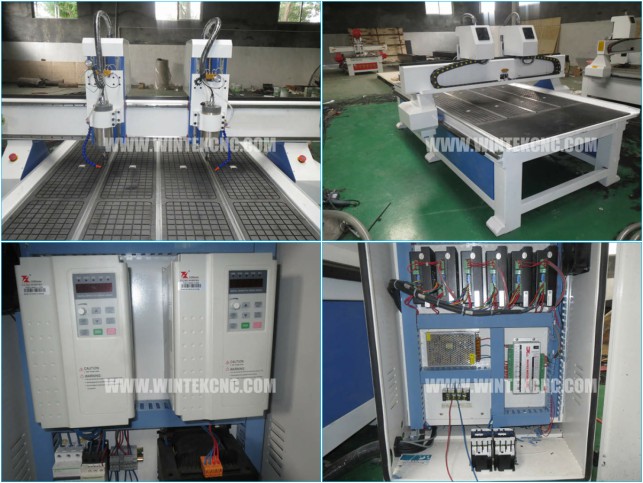

| Inverter | 3.7kw Fuling inverter / Delta inverter optional |
|
Motor |
FL118 stepper motor |
| Driver | YAKO2811 |
| Table Surface | T-slot and Vacuum working table |
| Screw | Taiwan TBI ball screw for Z axis |
| Guide | Taiwan HIWIN #20 linear guide |
| Running Environment Temperature | 0-45 Centigrade |
| Relative Humidity | 30%-75% |
| Dust Collector | 1.5kw double bags dust collector; 380V,3ph,60hz |
| Command Language | G Code |
PS:All the working area and specifications can be customized according to your requests.
Applicable industries of Double heads 4x8ft cnc router :
Processing various kinds of moulds and furniture such as door, window, cabinet, craft wooden door, screen and so on.
Applicable materials :
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
Processing effect :
Our router is widely used for engraving, cutting various shade vulture, relief and ect.
Main feature of double heads 4x8ft cnc router :
1) Lather bed is cast by iron, strong and never out of shape. The unit adopts casting framework,
X,Y axis adopts gear wheel and rack transmission, Z axis adopt precise ball-screw transmission,
imprted high precision square linear, ensuring the working speed and precision
2) It adopts high speed stepper motor and drivers,two motors for Y axis, max working speed is 25/min,
with water cooling spindle highly upgrade the processing speed.
3) The machines Adopt advanced DSP digit-control system
4) Well capability: CAD/CAD designing sofeware (type 3/ ArtCAM/ Castmate/ Wentai etc)
5) Vacuum table with 6 vacuum zones, which can absorb different size materials.
6) The vacuum cleaning system offers a clean working environment
7)Restoring from power off, resume on break points
