Model: WTM1313-4HR Category: Multiheads CNC Router
USD
5600-12500$ FOB Qingdao
Wintek multi heads 4 axis woodworking cylinder cnc router with rotary can help you improve working efficiency greatly. Size and rotary heads can be customized.
1.Application of multi heads 4 axis woodworking cylinder cnc router machine :

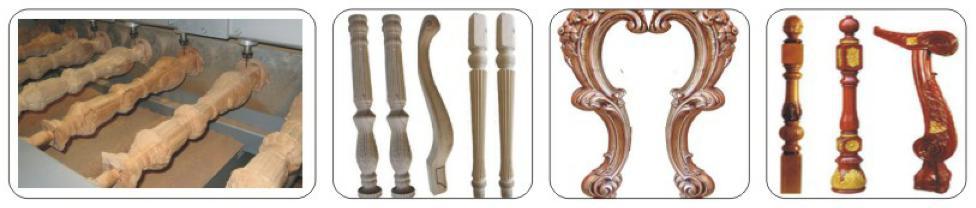

Furniture stereo feet and the cylinder, the human body,figure of Buddha,the goddess of mercy,sculpture,handicrafts,stair handrail,cylinder Musical Instruments.
Figure carving ,furniture industry ,decoration industry,semi-finished products of industry equipment,instruments industry,mold industry,handicrafts industry,3D engraving of marble and buddha,advertising industry.

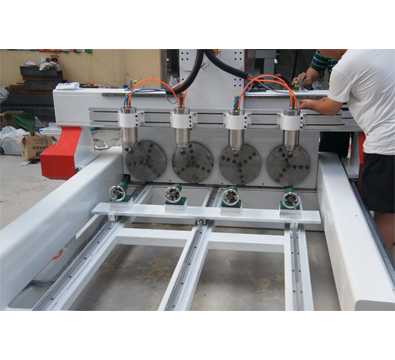

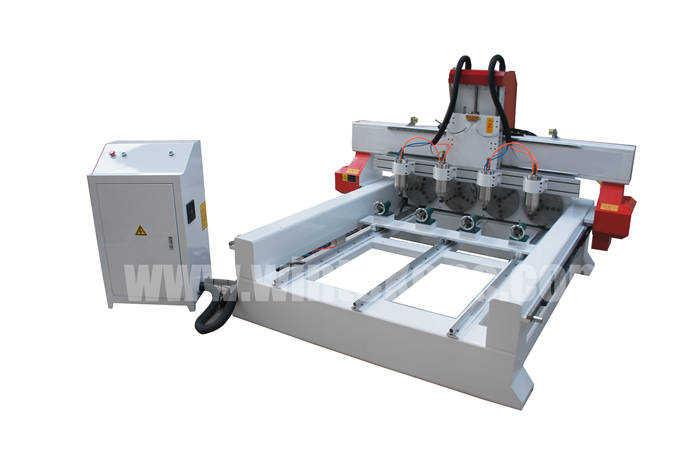

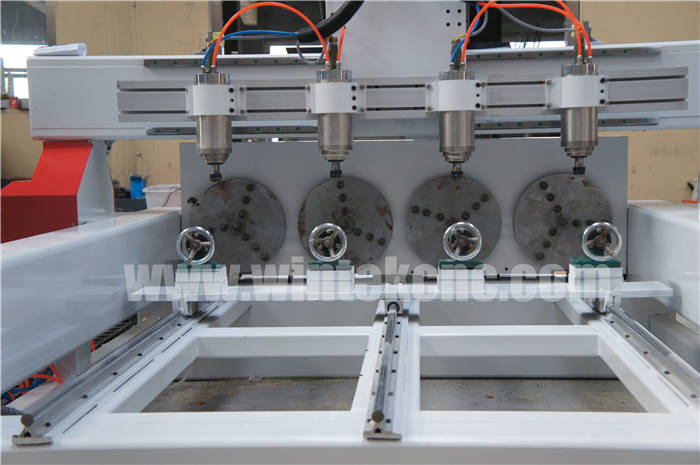

Multi heads 4 axis woodworking cylinder cnc router machine show :
Technical Parameter of multi heads 4 axis woodworking cylinder cnc router machine :
|
Model |
WTM1313-4HR |
|
XYZ Working Size |
200mm diameter, 1300mm length (size can be customized) |
|
Machine body |
Thick-walled steel pipe welding |
|
Table surface |
Rotary table |
|
XY structure |
Helical rack and pinion drive, HIWIN square linear rail (roud rails) |
|
Z structure |
Taiwan TBI Ball screw drive, HIWIN square linear rail |
|
Spindle |
1.5 kw water cooled |
|
Spindle speed |
0-24000 RPM |
|
Drive motor |
Stepper system (servo system optional) |
|
Max. Rapid Travel Rate |
35000 mm/min |
|
Max. Working speed |
25000 mm/min |
|
Control system |
DSP/ Nc-studio / Mach3 |
|
Software |
Type3, Artcam, Ucancam |
|
Command |
G code |
|
Machine precision |
0.01 mm |
|
Repositioning precision |
0.03 mm |
|
Working voltage |
AC 220/380V |
|
Machine Size |
2100mmX2200mmX1700mm |
|
Net weight |
1500KG |
|
Dust collector |
optional |
|
Remark |
We can customize the model for any processing size |
1. Whole machine is welded with thick square seamless steel structure; the stability is excellent,
not easy to be deformed.
2. Three axes adopt high precision square orbit; X and Y axes adopt rack and pinion transmission,
fast working, high efficiency and low cost. Z axis adopts ball screw,with high precision and long life time.

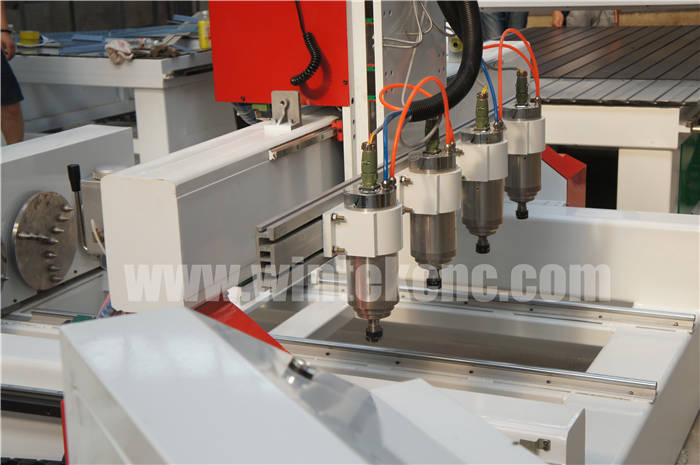

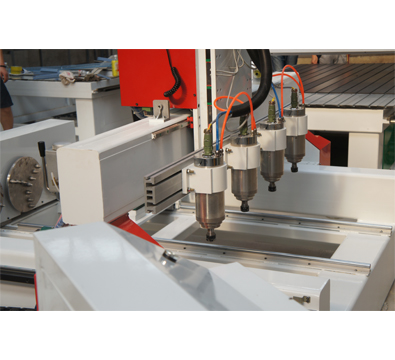

3. High power spindles , low noises and super strong cutting force, which improve workingefficiency greatly.
4. Famous brand drivers and motors have characteristics such as powerful strength, fast processing speed.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
6. Has the function of re-carving after break point and power failure.
7. Has the function of forecasting process time.
8. Adopting advanced DSP system with USB connection, operated with the handle, convenient operation.
Our engraver can completely work off-line and do not take any computer resources.

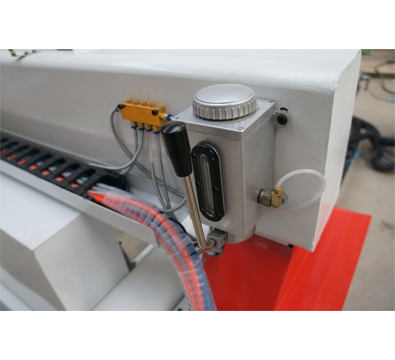

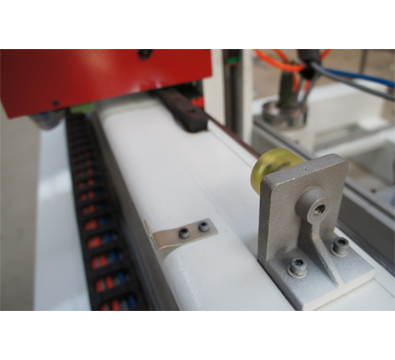

9. Perfect oil lubrication system makes maintenance much easier. And electric limit switch on all axis,
make sure machine running well.
10. Independent control box make control easier.
11. We will provide you a set of cutter, and a tool box with other necessary accessories.
