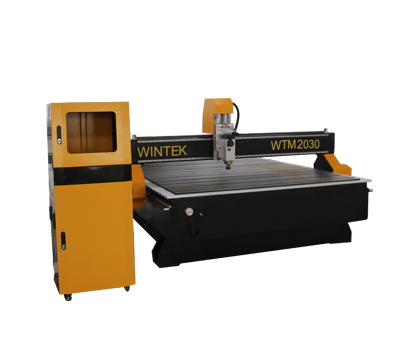

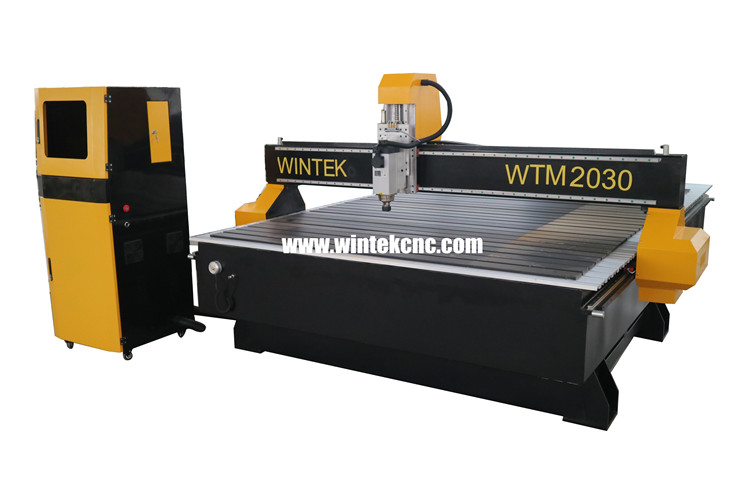

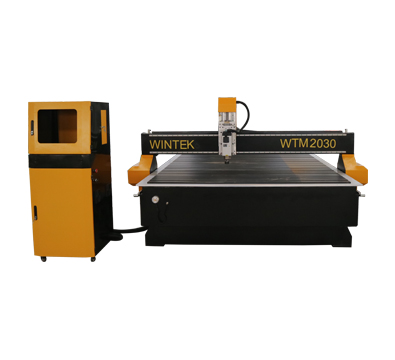

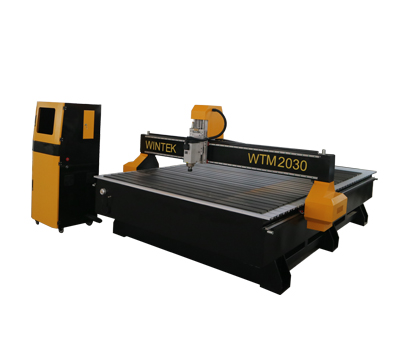

Model: WTM2030 Category: Wood CNC Router
USD
4000$-5600$ FOB Qingdao

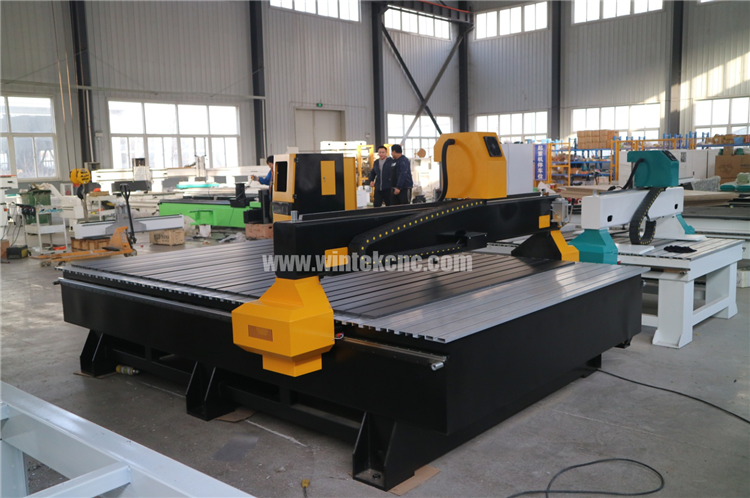

This China 3d wood carving cnc machines for sale adopts heavy duty structure,it can engrave and cut wood,plywood,mdf,pvc,aluminum and many different materials.
Features of China 3d wood carving cnc machines for sale:
1)Adopts heavy duty structure ,strong and stability.

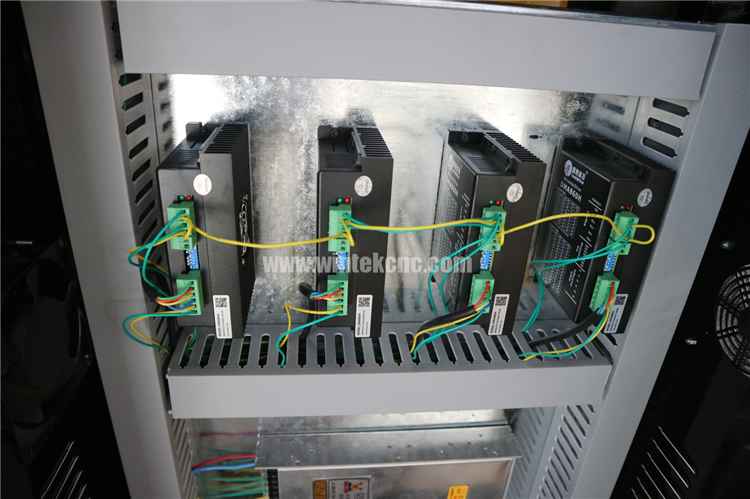

2)Adopts stepper motor 450C and leadshine drivers. Servo motors are optional.

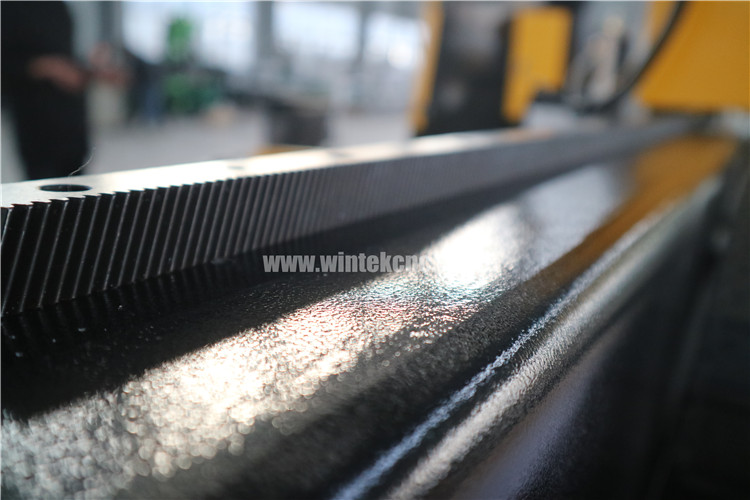

3)Rack gear transmission ensures fast speed and high accuracy
4)Imported square rail ensures high accuracy and heavy workload
Application of 3d wood carving cnc machines :
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Technical parameter of 3d carving cnc router machine :
| NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 2000x3000x200mm |
| 2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/200mm |
| 3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 4 | Table Surface | T slot table with pvc cover |
| 5 | Frame | Heavy duty steel structure |

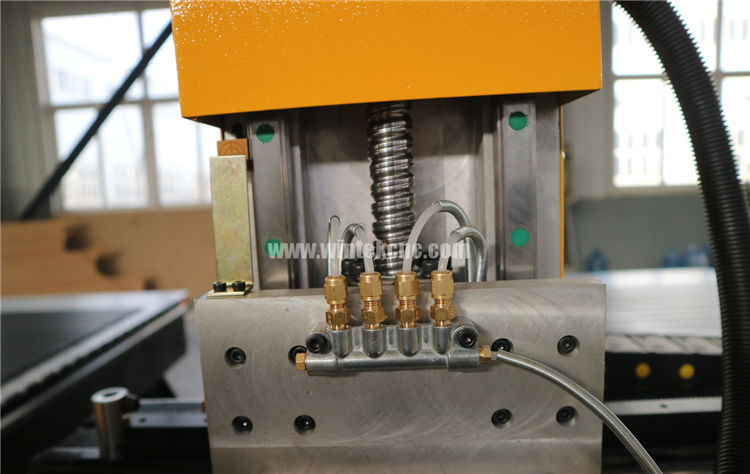

| 6 | X, Y, Z Structure | Hiwin Rail Linear Guide and TBI ball screw |
| 7 | Z Structure | Hiwin Rail Linear Guide and TBI Ball Screw |
| 9 | Max. Rapid Travel Rate | 25000mm/min |
| 10 | Max. Working Speed | 18000mm/min |

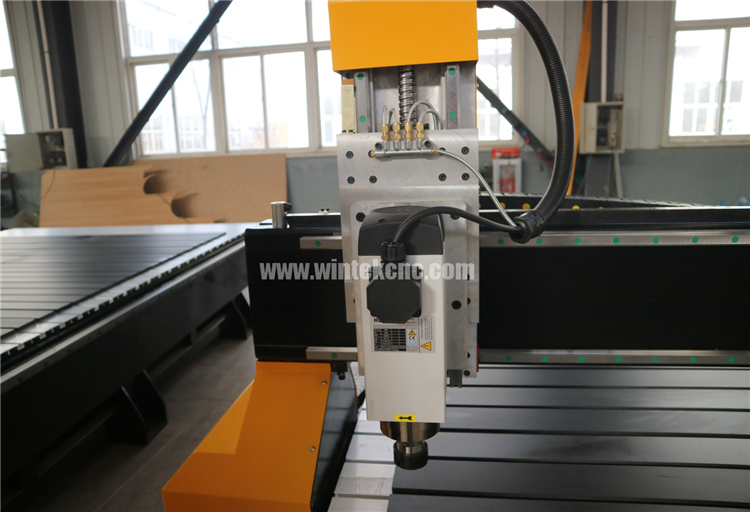

| 11 | Spindle Power | 6KW air cooling spindle |
| 12 | Spindle Speed | 0-18000RPM |
| 13 | Drive Motors | Stepper Motor and leadshine driver, servo motor is optioanl |
| 14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 15 | Command Language | G Code |
| 16 | Operating System | (Options:NcstudioDSP System /Mach3 PC Software) |
| 17 | Computer Interface | USB |
| 18 | Flash Memory | 128M(U Disk) |
| 19 | Collet | ER25 |
| 20 | X,Y Resolution | <0.01mm |
| 21 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 22 | Running Environment Temperature | 0 - 45 Centigrade |
| 23 | Relative Humidity | 30% - 75% |
| 24 | Inverter | Delta/Fuling |
| 25 | Electrical components | Schneider |
| 26 | Limit switch | OMRON |
| 27 | Driver | Leadshine or Yako |
