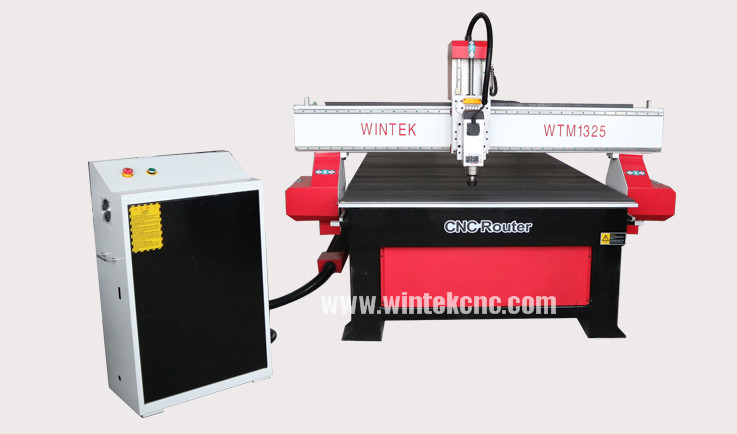

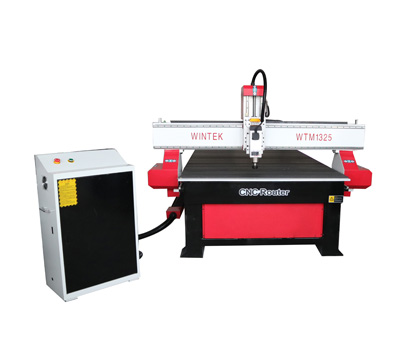

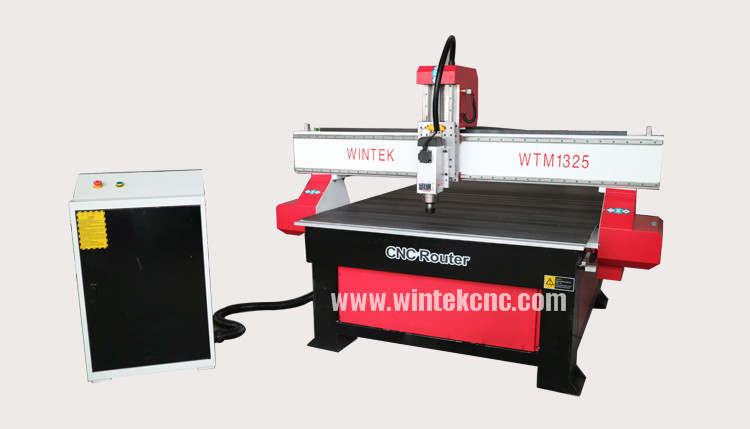

Model: WTM1325 Category: Wood CNC Router
USD
3600$-4800$ FOB Qingdao
Jinan Wintek cnc company is a professional supplier for China 3d cnc wood carving machine. Our cnc wood router can be used into furniture industry,advertising industry,moulding industry and so on.
Application of China 3d cnc wood carving machine:
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.

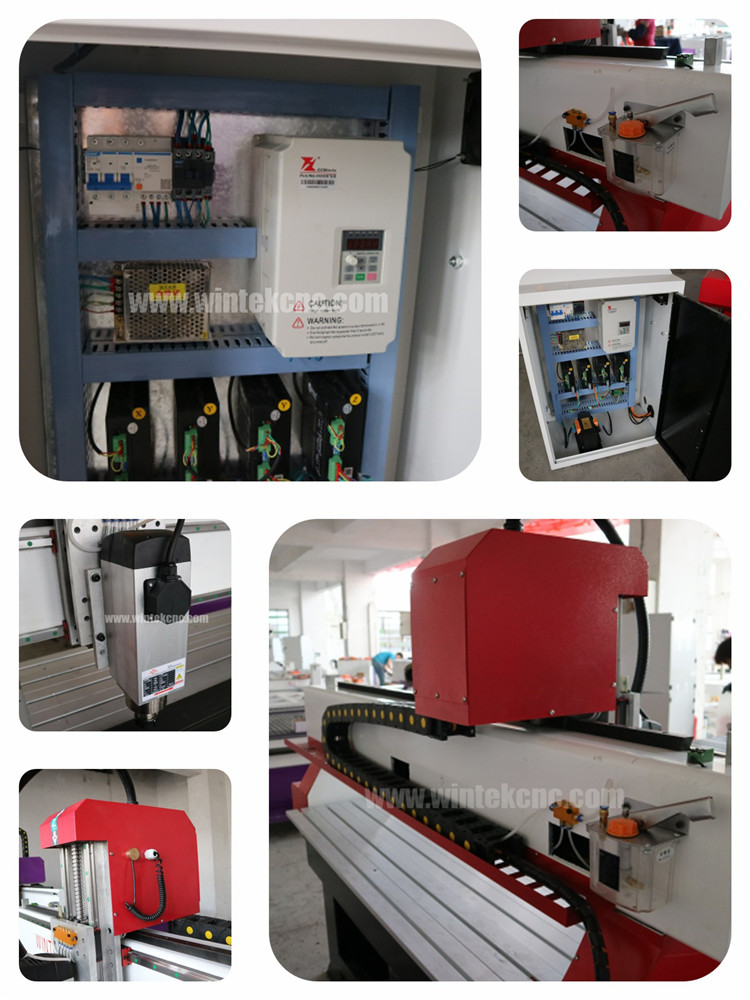

Features of 3d cnc wood carving machine:
1. Working area:1300*2500*200mm

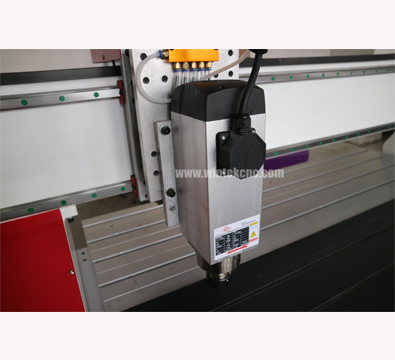

2. 3.5kw HQD air cooling spindle,18000RPM
3. Nc-studio control system
4. Spindle cover for safety operation

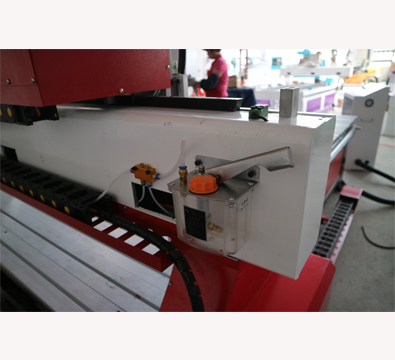

5. Manual oil mist cooling sprayer for working on metal
6. 20 Taiwan HINWIN linear guide rail
7. High-precision helical rack gear
8. T-slot table
9. Stepper motor and leadshine drivers
10. Fuling inverter
PS : We can customize different size and different configurations for you.
Technical Parameter of 3d cnc wood carving machine:
|
NO. |
Description |
Parameters |
|
1 |
Working area |
1300*2500*200mm |
|
2 |
Table size |
2000*3050mm |
|
3 |
Transmission |

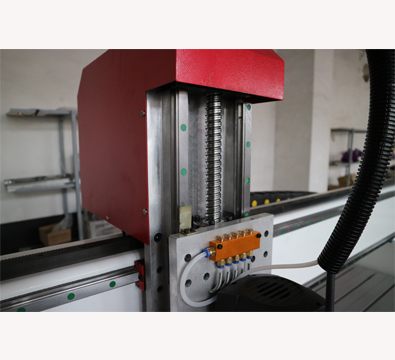

X/Y rack and pinion, Z ball screw |
|
4 |
Table structure |
T-stlot table |
|
5 |
Spindle power |
HSD/HQD 93.5kw (optional) |
|
6 |
Spindle speed |
18000rpm/min |
|
7 |
Travelling speed |
60m/min |
|
8 |
Working speed |
30m/min |
|
9 |
Working Delicacy |
0.01mm |
|
10 |
Repositioning Accuracy |
0.01mm |
|
11 |
Driving Motor and driver |
Stepper motor&driver(Leadshine/ESTUN/Panasonic/Yaskawa) |
|
12 |
Control System |
Nc-studio / Mach3 / DSP controlling system |
|
13 |
Command Code |
G Code*.u00*.mmg*.plt |
|
14 |
Voltage |
3 Phase/380V/50HZ; 2 Phase/220V/50HZ; |
|
15 |
Software |
Artcam/Type3,other CAD/CAM |
