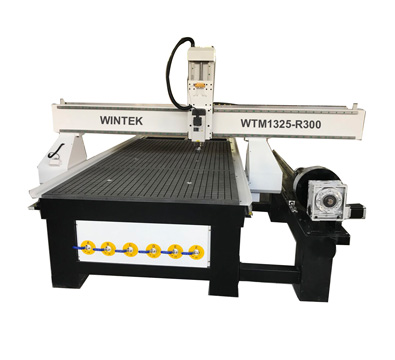

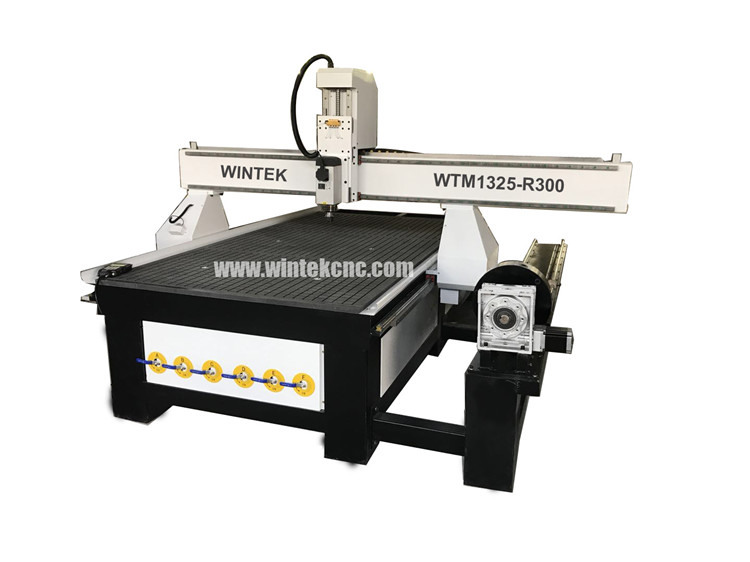

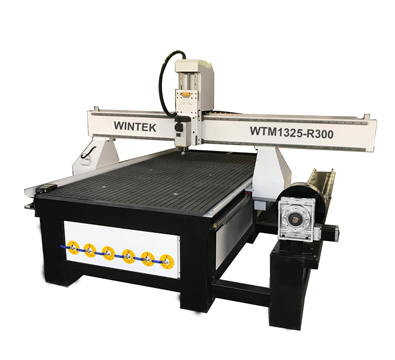

Model: WTM1325-R300 Category: Wood CNC Router
USD
USD 5400$-7500$ FOB Qingdao
4 axis cnc router machine with side rotary is more stable than the cnc router whose rotary is on the table. Rotary diameter and length can be customized.
4 axis cnc router machine Standard Configuration:

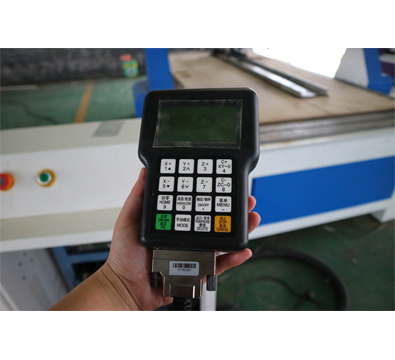

1) A18 DSP control system: Popular and easy operation, with USB port to transfer program; Support 4 axis;
2) 4.5kw air cooling spindle: Long working life, easy maintenance;
3) Big Stepper Driving Moto: With highly control precision and high speed, reliable and stable;
4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality, realizing smooth movement;
5) Taiwan TBI ball screw: linear motion with high precision and and in high speed
6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates, longer lifetime because of smaller wearing force.
7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;

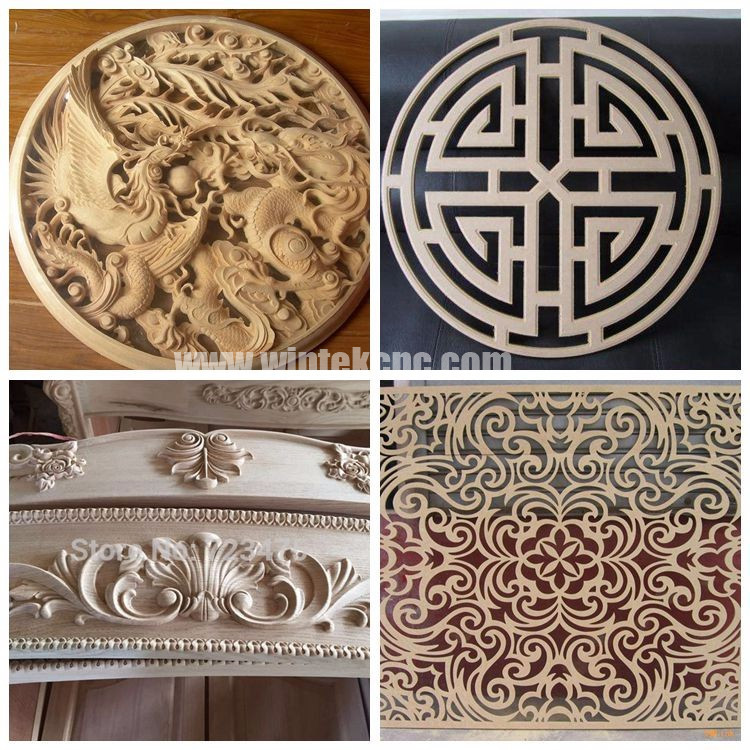

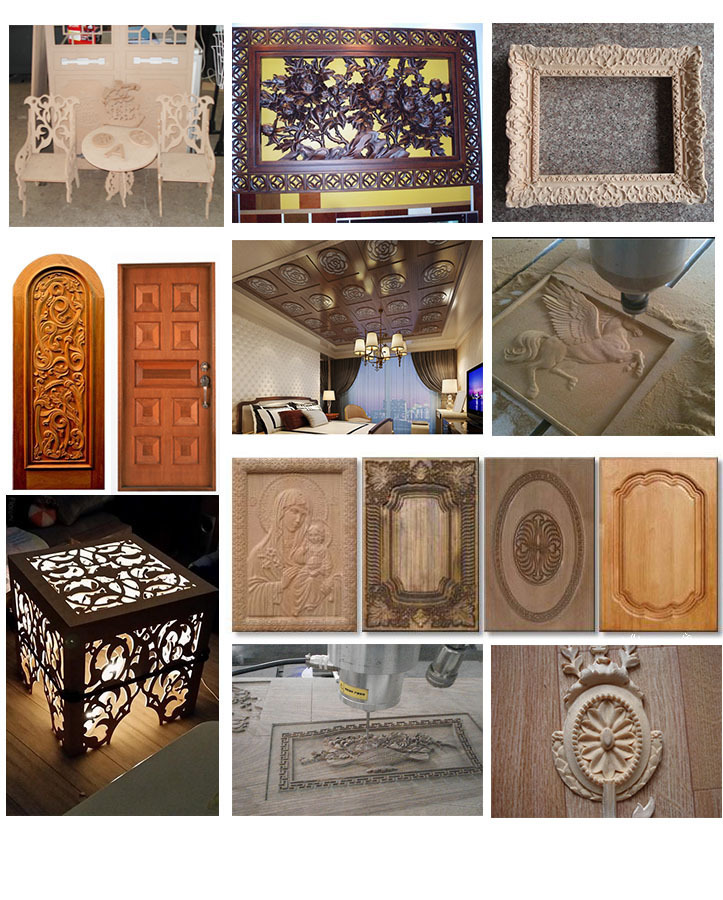

Application of 1325 cnc router machine with rotary :
Applicable Material: Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Applicable Industry: Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.
Technical Parameter of 4 axis cnc router machine :
|
Model |
WTM1325-R300 4th axis cnc router |
|
Working area (X*Y*Z) |
1300*2500*200mm + 300*2500mm rotary |
|
Table size |
1750*3050*1740mm |
|
Body structure |
Thicken steel made |
|
X, Y Structure |
Rack and pinion |
|
rails |
Taiwan 25 size hiwin square rails |
|
Z Structure |
Taiwan TBI ball screw |
|
X, Y Resolution |
<0.01mm |
|
Max Moving Speed |
60000mm/min |
|
Max Engraving Speed |
30000mm/min |
|
X,Y,Z traveling positioning accuracy |
±0.01mm |
|
X,Y,Z repositioning accuracy |
±0.01mm |
|
Spindle power |
4.5kw air cooling spindle (China or Italy HSD spindle) |
|
Spindle Speed |
0-18,000rpm |
|
Voltage |
380v/3phase or as customer needed |
|
Drive type |
Stepper motors and drivers or Japan servo motor (Leadshine, Delta brand optional ) |
|
Working Dictate |
G Code |
|
Operating system |
DSP control system(Option Mach3 or Ncstudio) |
|
Tool sensor |
Yes |
|
Auto oil lubricator |
Yes,included |
|
Wire protect |
Yes,included |
|
Running Environment |
Temperature: 0℃~45℃ |
|
package |
Export wooden box |
|
After packed size |
3300*2200*1900mm |
|
G.W |
1600kgs |

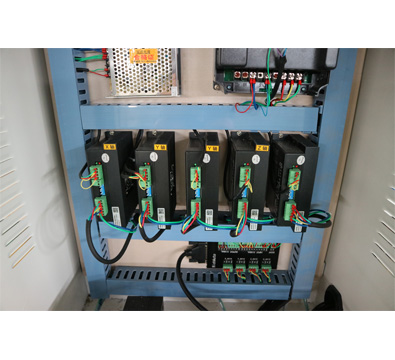

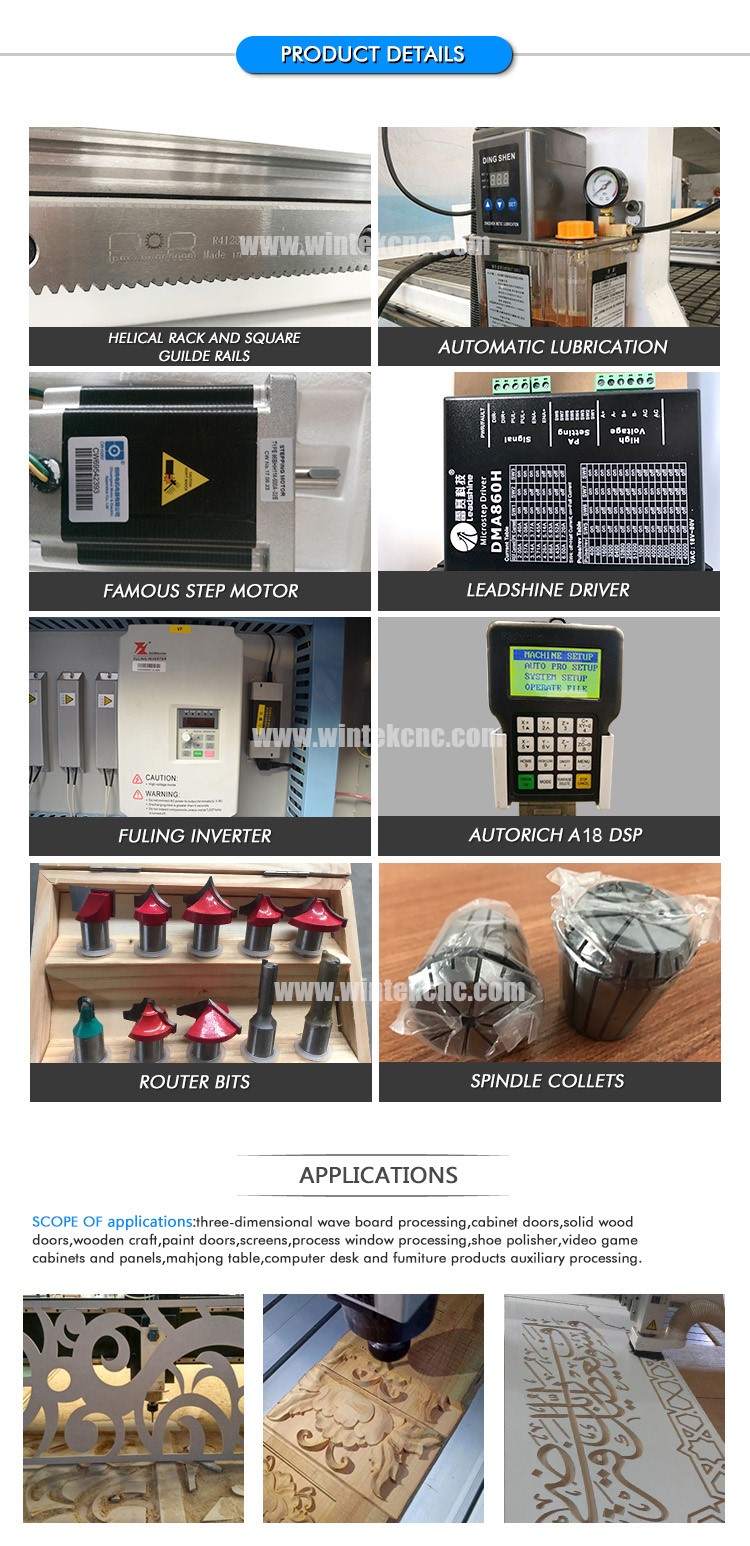

Details of 1325 4 axis cnc router machine with rotary :
Our service :
1. Guarantee for 1 year exluding comsumable parts. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery, operation disk was included. If there is also any questions, pls kindly tell me.
7. We have manual instruction and CD (Guiding Videos) for Software's Installing and operation and Machine's Using and Maintaining.

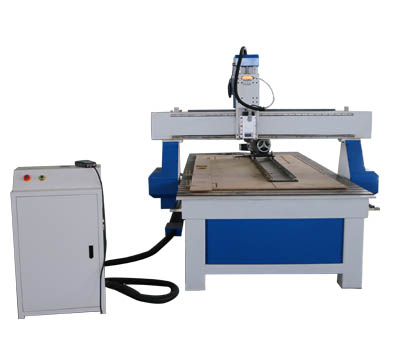

Another model : WTM1325 with rotary on bed :
