Model: WTM-1325 Category: Wood CNC Router
USD
USD 4200$-5600$ FOB Qingdao
China 4 axis 3d wood cnc router machine with rotary can process wood,mdf,plastic,aluminum and many other materials.
Applicable of 4x8ft 4 axis 3d cnc wood router machine :
1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2) The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Features of 4x8ft 4 axis 3d cnc wood router machine :
1.The working size is 1300mm*2500mm*300mm,for the Z axis can be increased.
2. 3.5kw CS air cooling spindle with 3.7kw inverter (Fuling or Delta inverter)
3. Leadshine stepper motor (Japan or Taiwan Servo motor are optional).
4. Richauto A18 DSP control system (A18 is more stable to control 4 axis and longer life time).
5. High-performance wood cnc router machine with rotary device, but at a very economical price.
6. Constructed with world-class components, consistent high performance.
7.Rigid T-slot table, enables you to clamp the workpiece in place. Also vacuum table is optional.
9.Taiwan Original TBI ball screw for Z travel.
10.Taiwan HIWIN Linear guide.
Technical Parameters of 4 axis 3d cnc router :
|
Working Size
|
1300*2500*300mm(Can be customized)
|
|
Traveling Positioning Accuracy
|
±0.03/300mm
|
|
Repositioning Accuracy
|
±0.03mm
|
|
Spindle Power
|
3.5kw CS air cooling spindle
Water cooling spindle and Italy spindle optional |
|
Spindle Speed
|
18000RPM
|
|
X, Y axis
|
Helical rack, Hiwin 25# Rail Linear Bearing
|
|
Z axis
|
Hiwin Rail 25# Linear Bearing & TBI Ball Screw
|
|
Max. Rapid Travel Rate
|
40000mm/min
|
|
Max. Working Speed
|
25000mm/min
|
|
Motor driver
|
Stepper motor (Servo motor optional)
|
|
Control System
|
Richauto A18 DSP controlling system
|
|
Table
|
T-slot Table (Vacuum table optional)
|
|
Frame
|
Welded Structure
|
|
X,Y Resolution
|
<0.01mm
|
|
Software Compatibility
|
Type3/UcancameV9/Artcam Software
|
|
Running Environment Temperature
|
0 - 45 Centigrade
|
|
Relative Humidity
|
30% - 75%
|
4x8ft 4 axis 3d cnc wood router machine Display :

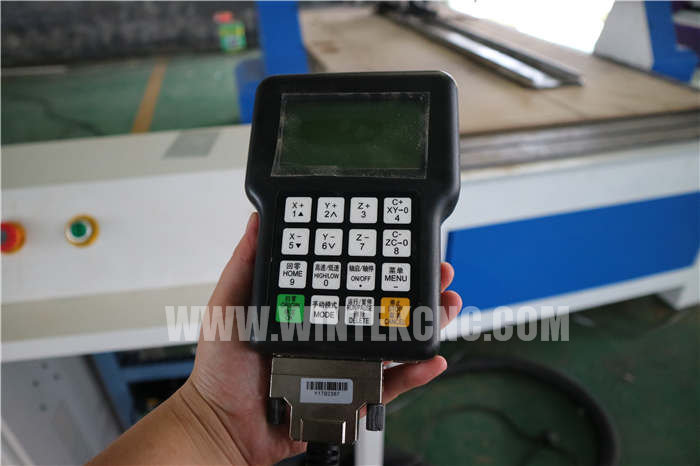

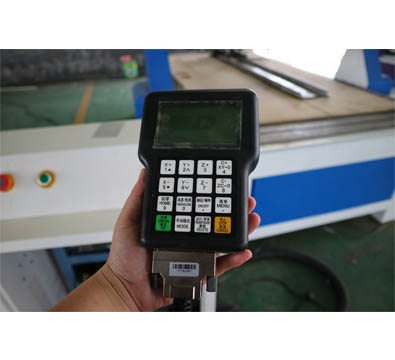

1-- Richauto A18 DSP :

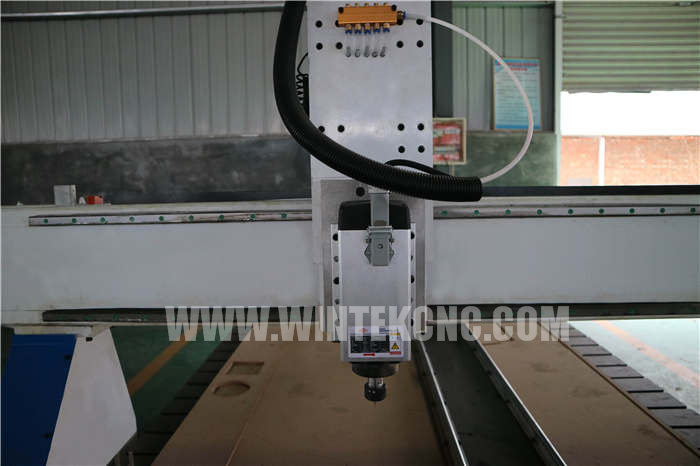

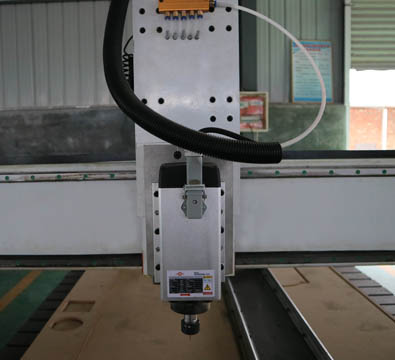

2-- 3.5kw CS air cooling spindle :

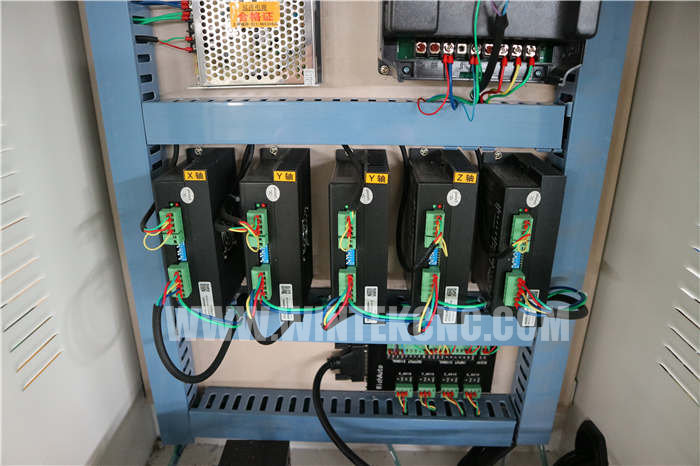

3. Controlling box of 3d cnc wood router machine :

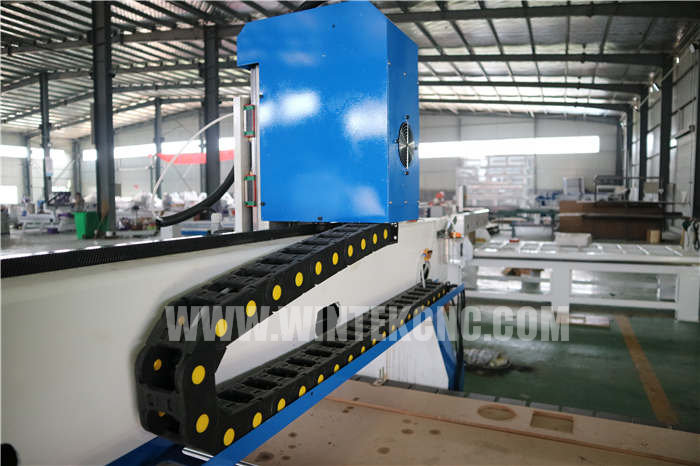

4. Strong gantry of 4 axis 3d wood cnc router :

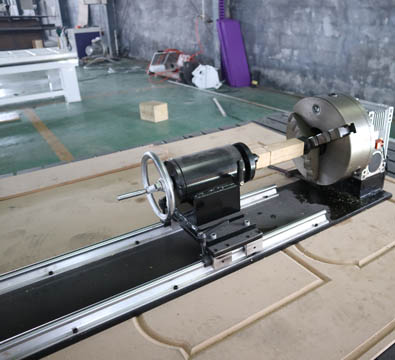

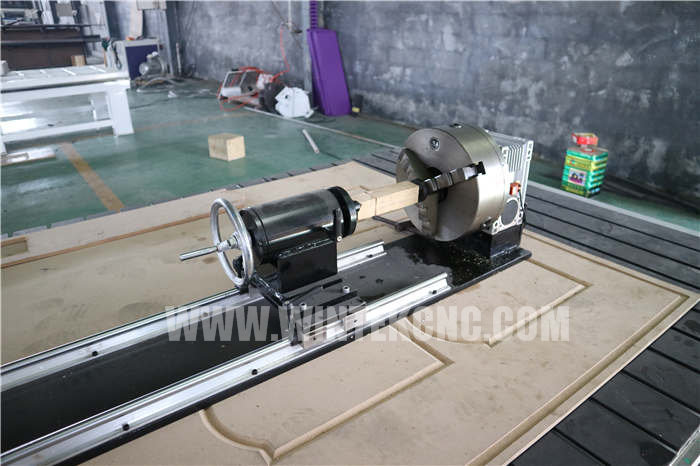

5. Rotary of 4x8ft 4 axis 3d cnc wood router machine :

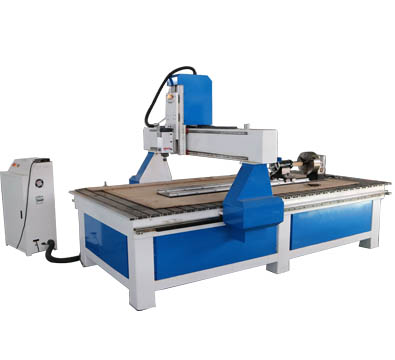

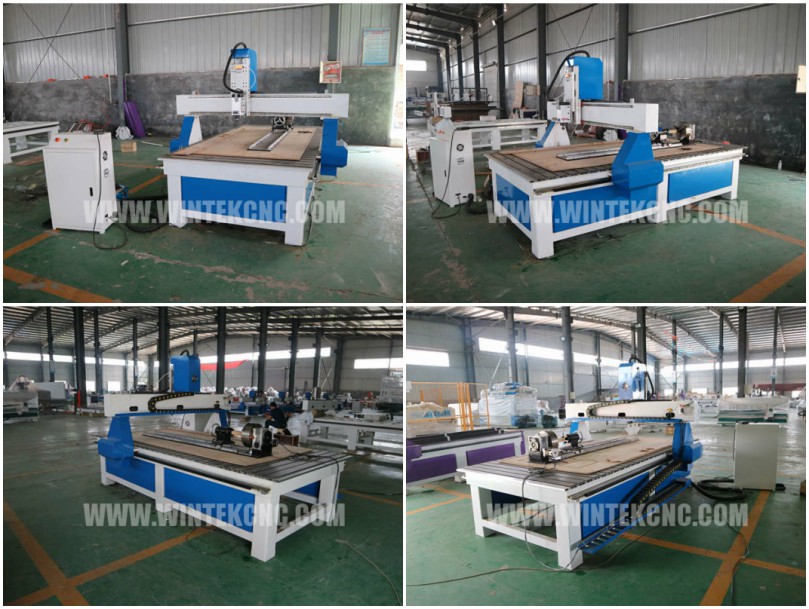

Whole 3d wood cnc router display :
