Model: WTM1325 Category: Wood CNC Router
USD
USD 4200$-7500$ FOB Qingdao
This best affordable cnc automated wood carving cutting router machine adopts heavy duty structure and good quality parts,so it can guarantee a stable running performance.
Application of cnc automated wood carving cutting router machine :
Applicable filed:
Wood processing: processing of various furniture such as door, window, cabinet, craft, wood door, wood screen and so on.
Advertisement: engraving and cutting MDF,acrylic,PVC,various labels and nameplate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminium board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Processing effect:
It can manufacture the following effects: Engraving, Cutting, Drilling and Milling, including flat (2D) Relief (3D) ,hollow, and so on.
Standard configurations of automated wood carving cutting router machine :
1. Working area: 1300mm*2500mm*200mm

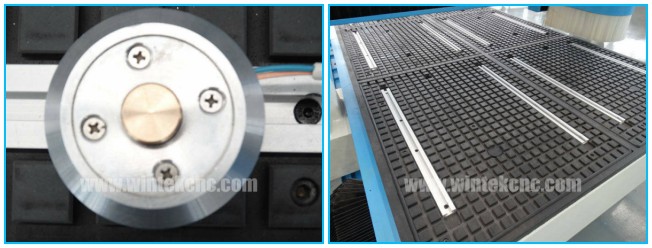

2. T-Slot & vacuum Table
3. Cast steel structure thicken to 10mm

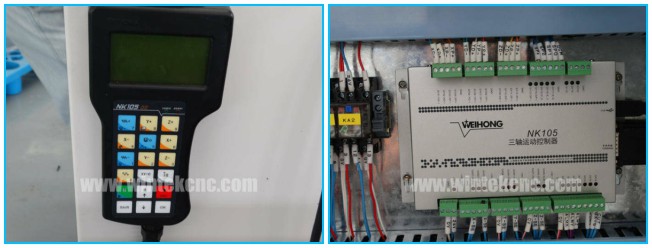

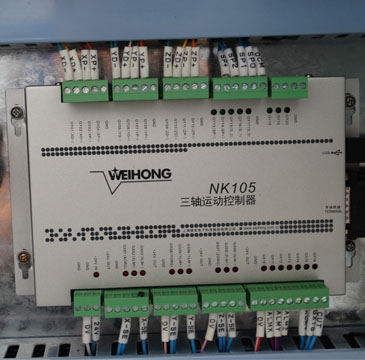

4. Weihong NK105 DSP control system from Germany
5. Leadshine stepper motor and drivers

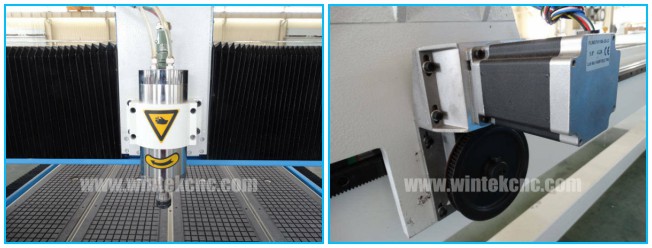

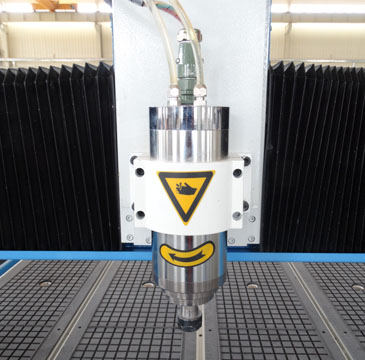

6. 3.0kw CS water cooling spindle
7. Fuling inverter
8. OMRON Switch from Japan
9. HIWIN (or PMI ) Linear guide from Taiwan
10 .ArtCAM software
11. 3PH 380V 50HZ/ 3PH 220V 50HZ
12. Plywood case package
Optional parts:
1. Italy HSD spindle
2. T-slot & Vacuum table
3. Taiwan Delta inverter
4. ATC sytem
5. Japan or Taiwan Servo motor

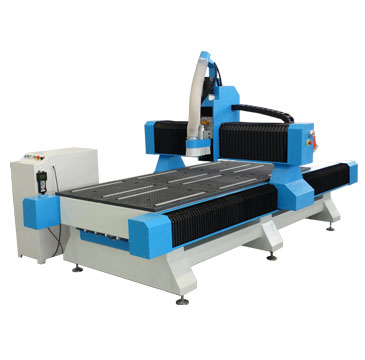

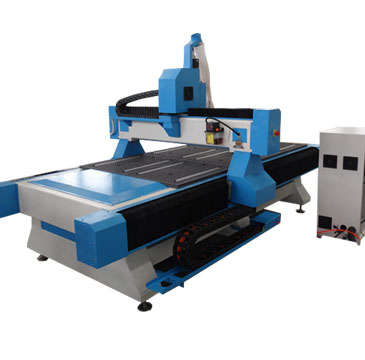

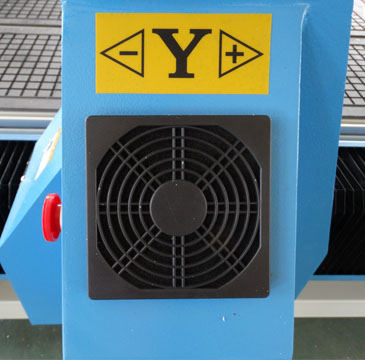

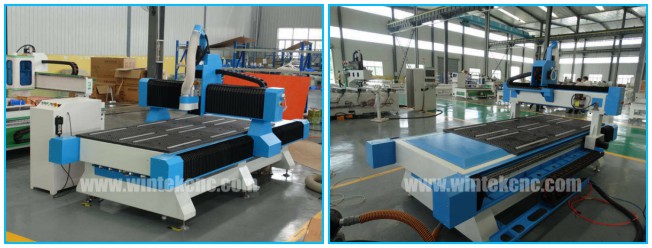

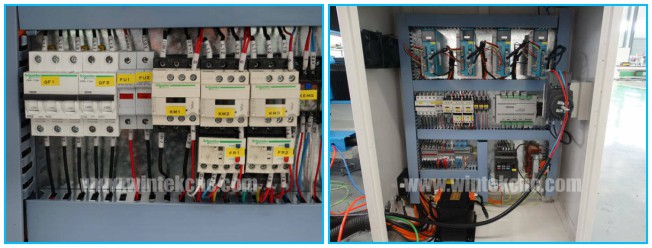

CNC automated wood carving cutting router machine show :
Technical Parameter of cnc automated wood carving cutting router machine :
|
Model |
WTM1325 |
|
|
X.Y Ttravel |
1300*2500mm |
|
|
Z Travel |
1200mm |
|
|
Spindle |
3kw CS water cooling spindle (air cooling spindle optional) |
|
|
Transmit way |
High precision pinion and rack |
|
|
Guide rail |
Imported HIWIN square linear guide rail |
|
|
Max. operating speed |
15m/min |
|
|
Resolution |
0.025mm |
|
|
Spindle speed |
0-24000rpm |
|
|
Carving command |
G mode*,u00*.mmg*.plt |
|
|
Diameter of Cutter |
φ3.175-φ12.7 |
|
|
Operating System |
Choose DSP handle control or Ncstudio or Mach3 |
|
|
Work-holding |
T-slot table & Vacuum table, 5.5kw vacuum pump |
|
|
Operating voltage |
AC380V/50Hz |
|
|
Operating mode |
Stepper |
|
|
Working Software |
Windows98/2000/XP |
|
|
Compatible Software |
Type3 , Artcam, Wentai (Artgrave) |
|
|
Optional |
Dust collector |
|
Samples of cnc automated wood carving cutting router machine :
More different models for your choice : cnc automated wood carving cutting machine
