Model: WTM1325 Category: Wood CNC Router
USD
4200$-7500$ FOB Qingdao
4×8 cnc router for sale with cheap price can engrave and cut wood,mdf,acrylic,aluminum ect.
Features of 4×8 cnc router for sale with cheap price:
1) This machine come with big size and is widely used in cutting and engraving work
2) DSP controller system which allow operator control machine without computer
3) With vacuum table: the vacuum table comes with 6 adsorption zones, with vacuum pump, it can adsorb the big Plywood board, MDF sheet, plate or any other small work-piece to the table firmly, this will avoid the materials moving during working, improve the working accuracy.
4) X Y Z axis use Taiwan HWIN square linear rail to ensure the machine work rapidly and precisely.
5) Wholly cold-roll machine structure, which is very heavy and strong, this reduce the shaking during working and increase the stability to ensure the machine have very high precision.
6) It is widely used in furniture, advertising and plate-making industry.
Technical Parameter of 4×8 cnc router for sale with cheap price:
| Condition | New |
| CNC or not | CNC |
| Place of origin | Jinan,Shandong, China(mainland) |
| Brand name | WINTEK CNC |
| Model number | WTM1325 |
| Voltage | 380v 3 phase / 220v, 1 phase |
| Spindle power | Water cooling spindle/ Italy HSD air cooling spindle(3/4.5/6kw) |
| Working area | 1300*2500*200mm(Z axis can be 300mm, 400mm or 500mm) |
| Motor | Stepper motor / Taiwan Delta Servo motor / Japan YASKAWA Servo motor |
| Controller | DSP / Mach3 / NCstudio / Taiwan Syntec |
| Power consumpation | 2kw (without spindle) |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Cerfificate | CE/ FDA/ CSA/ ISO 9001 |
| Warranty | 1 year |
| Traveling Positioning Accuracy | ±0.05mm |
| Max travelling speed | 50000mm/min |
| sales promotion | 10% off |
| Optional device | Dust colelctor or Vacuum pump or Rotary device |
1.Materials could be used: Wood, Timber, PMMA, PVC Sheet, ABS sheet, KT sheet, Gemstone, Marble, Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics and etc.
2.Widely used in furniture industry(2D & 3D), furniture decoration industry, carpenter decoration, instrument ndustry, wooden handicraft industry, large plate plane carving, wood furniture carving, density plate engraving, window and door carving and so on.

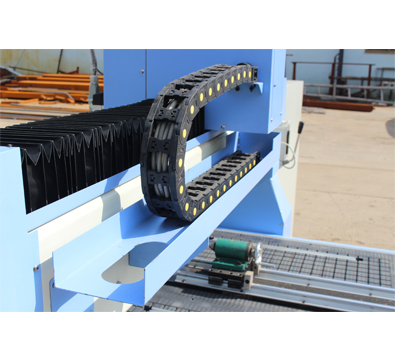

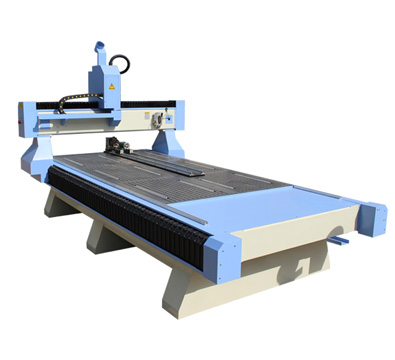

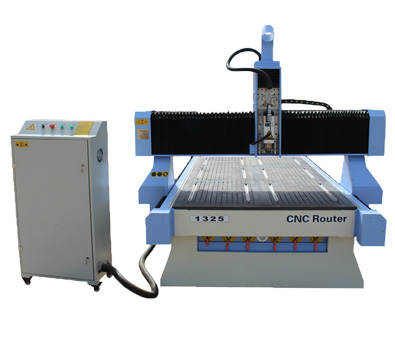

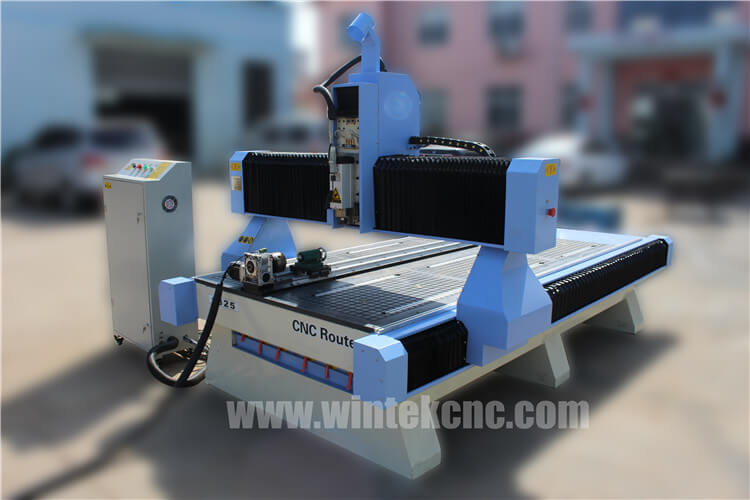

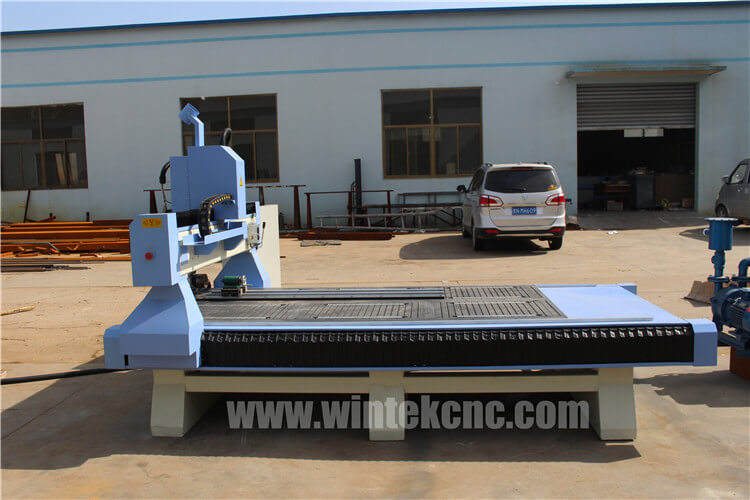

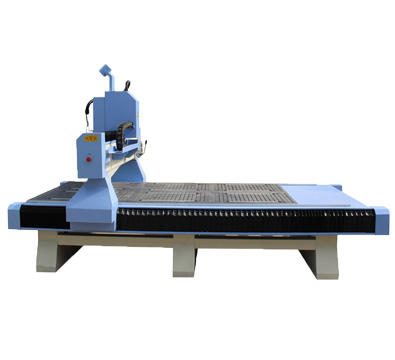

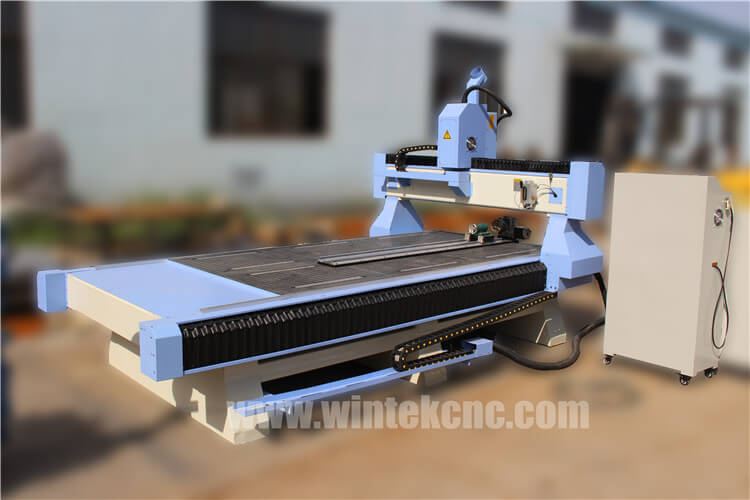

Details show of 4×8 cnc router for sale with cheap price:
Advantages of 4×8 cnc router for sale with cheap price:
1. Whole mechanical engraving machine is welded with seamless steel structure and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress. The stability is excellent, not easy to be deformed.
2. The cnc router adopts gantry movement. It can process any kinds of materials freely.
3. Three axes adopt Hiwin high precision square orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball- screw, high precision and long life time.
4. Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
5. Has the function of re-carving after break point and power failure.
6. Has the function of forecasting process time.
7. Adopting advanced DSP system with USB interface, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
8. Perfect lubricating system makes maintenance much easier.
9. The cnc router has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
10. Advanced design of the machine make sure strong cutting and guarantee the engraving precision.
