Model: WTM1325 Category: Wood CNC Router
USD
USD 4200$-7500$ FOB Qingdao
This 1325 3d wood carving machine for sale/cnc wood cutting machine is suitable for wood,plywood,acrylic,plastic and many other materials' process.

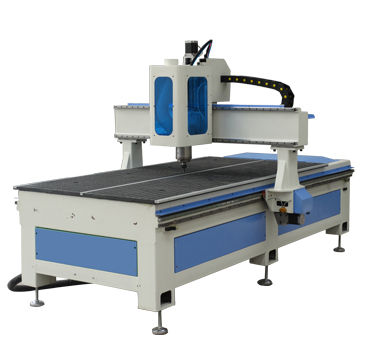

1325 3d wood carving machine for sale/cnc wood cutting machine
Features of 3d wood carving machine for sale/cnc wood cutting machine:
· 1300x2500x200 working area

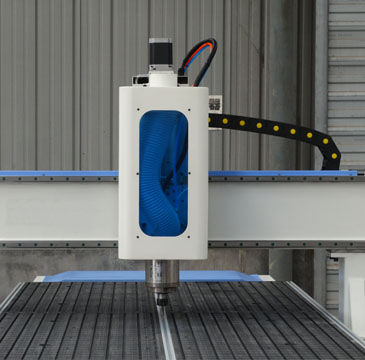

· 3.0 kw CS water cooling spindle,24000rpm
· Taiwan Delta inverter
· DSP A11 control system
· Stepper motor and Leadshine 860H driver

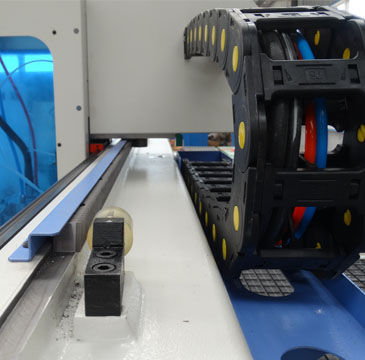

· Imported Taiwan HIWIN 20# Square Linear Guide
· Z axis Original Taiwan TBI ball screw Transmission
· T-slot&vacuum table·
· Manual Oil Lubrication system
· Japan Ormon Limit Switch
· France Schneider safety switch
· Separate control box
· Voltage 220V 3phase 60HZ (option:330v)
· Plywood case Package
· Type3/Artcam software
Application of 3d wood carving machine for sale/cnc wood cutting machine :
1)This cnc wood router for sale is widely used or furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2) The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3)Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4)Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Technical Parameter of 3d wood carving machine for sale/cnc wood cutting machine :
|
Machine |
WTM1325 |
|
Working table |
T-slot &Vacuum table |
|
Workable size |
1300x2500x200mm |
|
Spindle motor |
3.0kw Water-cooling spindle (air cooling spindle optional) |
|
Max. Travel ling speed |
35m/min |
|
Max. working speed |
25m/min |
|
Spindle Rotation Speed |
0-24,000rpm |
|
Operating system |
DSP control system (NC Studio control system,Mach3 controlling system) |
|
Command |
G Code |
|
Driver & motor |
Stepper motor (servo motor optional) |
|
X,Y,Z Transmission |
Z---Taiwan TBI Ball Screw; X,Y---Rack Gears |
|
X,Y,Z Guide Rail |
Taiwan HIWIN Guide Rail |
|
Dust Collecting System |
3KW dust collect(Option) |
|
Working Voltage Motor |
380v,50hz,3ph Leashine motor |
|
NW |
1300KG |
|
GW |
1500 KG |
Advantage of 3d wood carving machine for sale/cnc wood cutting machine :
1.This cnc wood router for sale adopt Taiwan linear square guide rail, double slippers. Bearing heavy, working steadily high precision, and long life time. Imported ball screw, high precision for cutting.
2.Adopting advanced DSP system, operated with the handle, convenient operation, humanization design.
3.Unique intelligent budget principle,fully develops the potential of the motor and lead to woodworking cnc router with high processing speed,the synchronization of curves and straight lines,smoother curves.
4.Well compatibility CAD/DAM designing software e.g. Type3/artCAM/Castmate/wentai etc.
5.Vacuum Table with 6 vacuum zones, which can adsorb different sizes materials. No oil vacuum pump,high suction,more convenient,stable capability.

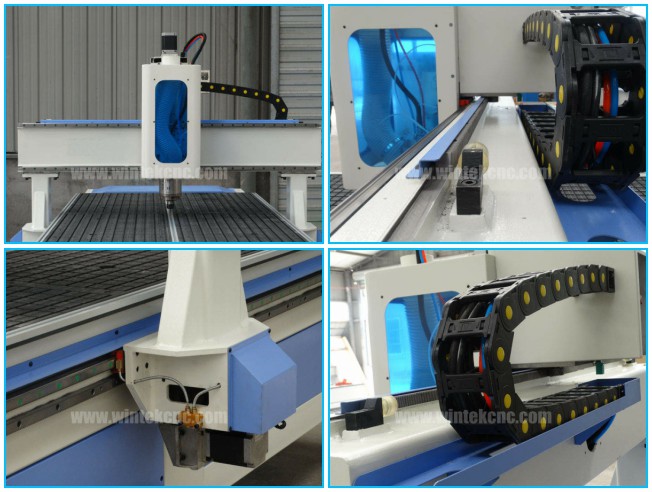

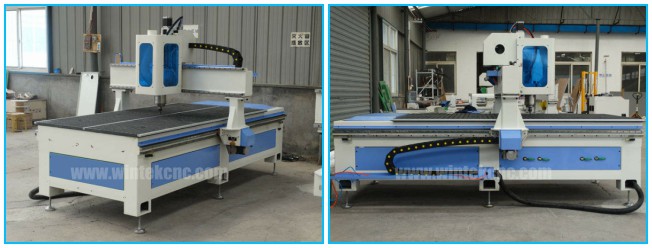

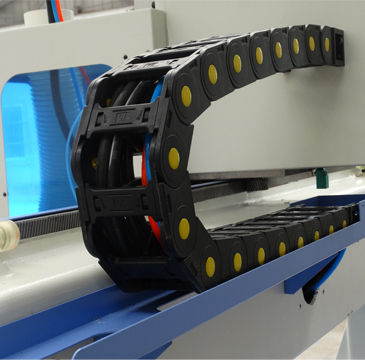

Details show of 3d wood carving machine for sale/cnc wood cutting machine :
