Model: WTJ-UV Category: UV Laser Marking Machine
USD
USD 4200$-8500$ FOB Qingdao
High precision UV laser marker for sale with cheap price..It is widely used inelectronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products. 2.Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware. 3.Pharmaceutical, food, beverage and cosmetics industry. 4.Glass, crystal products, arts and craftsof surface and ect.
Application of uv laser marker :
1. It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
2.Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
3.Pharmaceutical, food, beverage and cosmetics industry.
4.Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving,clocks and watches and glasses.
5.It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, previous to light polymer materials, plastic, fire prevention materials etc..
Samples of uv laser marker :

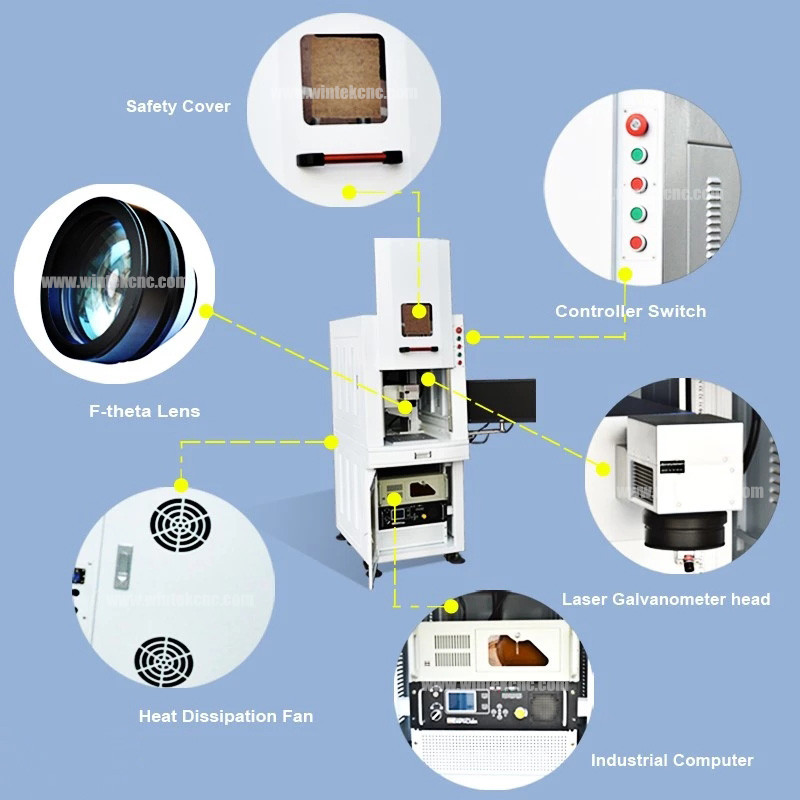

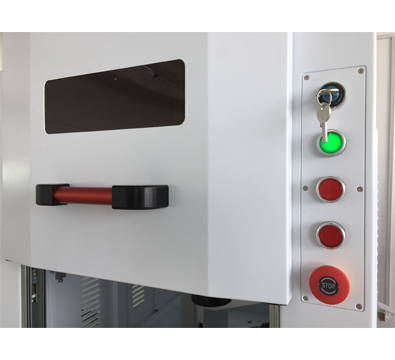

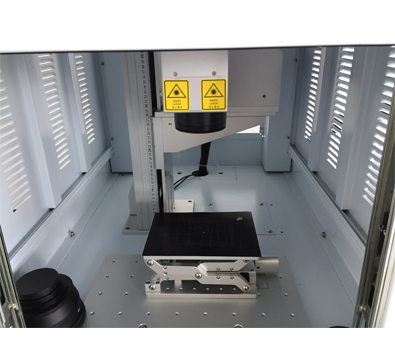

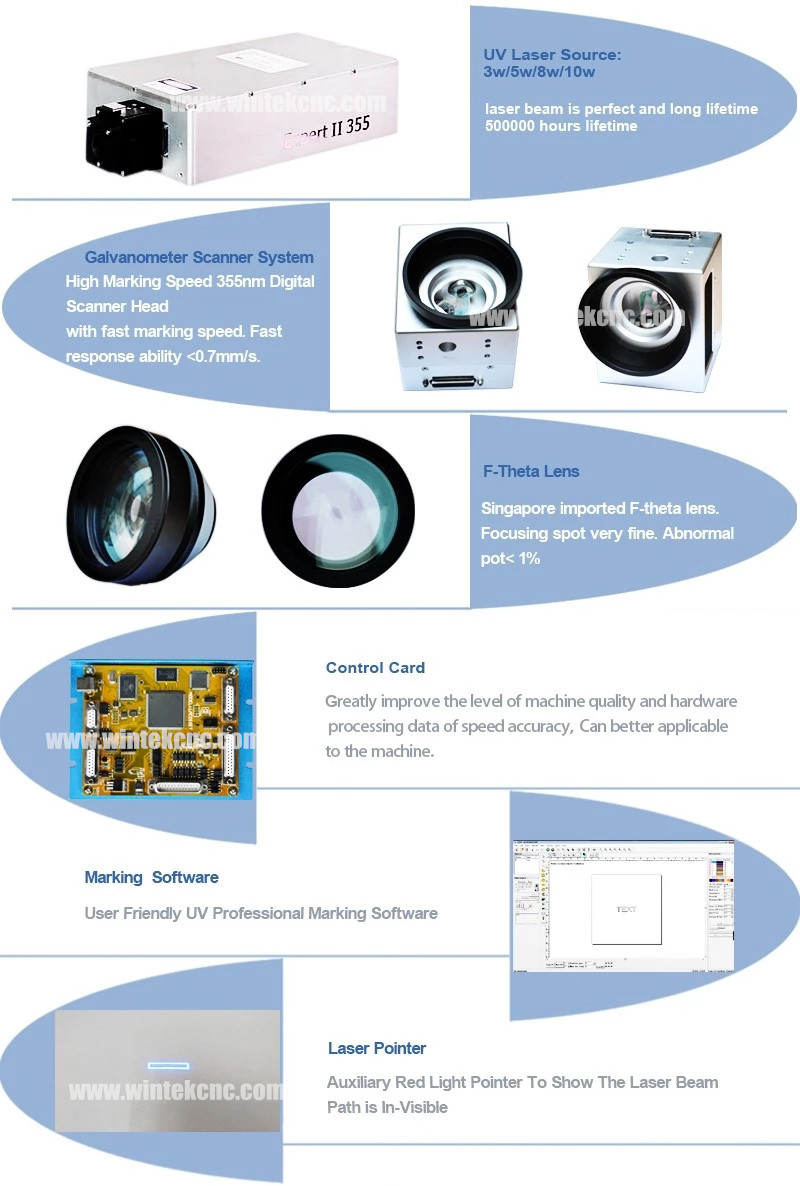

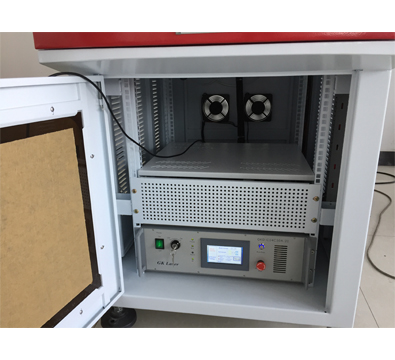

Details of uv laser marker :
>>Product features
1. Adopting doubling technique of intracavity frequency has greatly improve the stability of laser.Design onlaser cavity adopts a series of optimization method, so as to ensure the beam quality as thefundamental mode.
2. The machine takes355nm pumped purple light laser device as the light source. Narrower pulse width and smaller heat affection contribute to generate peak power.
3.Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it’s very suitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.
4. High efficiency of the photoelectric conversion and long service life.
5. Automatic in a rotary table(optional item), convenient feeding, fast speed, high efficiency.
6. It can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.
7. It can mark date, bar code and two-dimension code automatically.
8.Superior performance, good stability, high conversion rate and low energy consumption.
Technical Parameter of uv laser marker :
|
Product |
3w/5w/8w/10w/15w |
|
Purpose |
Marking |
|
Laser |
UV Laser |
|
Laser Wavelength |
366nm (Ultra-Violet) |
|
Laser Type |
YV04 |
|
Laser Output Power |
3W,8W,15W |
|
Laser Life Span |
10,000hrs - 15,000hrs (see warranty) |
|
Max. Working Speed |
7000mm/s (depending on material) |
|
Galvanometer |
Yes |
|
Lens |
F-Theta Lens |
|
Working Area |
110*110/175*175/ 360*360mm |
|
Beam Diameter/Quality |
M2<1.1 |
|
Working Area |
70x70, 110x110, 160x160, 250x250mm |
|
Repeatability |
0.01mm |
|
Positioning accuracy |
0.01mm-0.2mm |
|
Min Line Width |
0.01mm |
|
Marking/Cutting Depth |
0.01mm-0.2mm (Depending on Material) |
|
Cooling |
Air (Fan Assisted) |
|
No. Axis |
2 Axis (4 Axis Optional) |
|
Rotation |
Optional |
|
Power supply |
220V, 50/60Hz, 1kVA (110-120Vac Optional) |
|
Controller |
Computer with marking software |
|
USB 2.0 Compatible |
Yes |
|
File Types |
PLT, DXF, AI, DST, BMP, JPG, TIF |
|
Max. Operating Time |
24hrs (recommend a 1hr cool down period) |
|
Dimensions |
0.5m³ |
|
Weight (kg) |
80kg |
|
Guarantee: (see Ts&Cs) |
|
|
General Guarantee |
12 Months from date of arrival at destination |
|
Laser Source |
2000hrs/3 months - LAMP PUMPED & CO² (Except Smart™ Series) |
|
20,000hrs/18 months - Smart™ Series |
|
|
10,000hrs/12 months - Diode Pumped |
|
|
100,000hrs/2 years - Fiber LASER |
|
