UV Laser Marking Machine with protection cover

UV Laser Marking Machine with protection cover

Inquiries:
465
Model: WTJ-UV Category: UV Laser Marking Machine
Brand:

FOB Price:
USD

4200$-8500$ FOB Qingdao

Port From: Qingdao,Tianjin,Shanghai,Guangzhou,all China port Payment Terms: TT(Telegraphic Transfer),LC(Letter of Credit),Western Union Mail to us Skype to us Send a request

Product Details

Send a Request

uv laser engraving machine PE-UV-3W takes 355nm pumped purple light laser device as the light source and take advantage of previous generations machine to gain smaller diameter of focusing spot and fine marking effect. The metal absorb purple light higher than infrared and therefore more suitable for marking on metal and glass materials compared with infrared pump machine. Narrower pulse width of laser makes a shorter time of processing on materials, thus the materials avoid being deformed or burnt due to thermal.

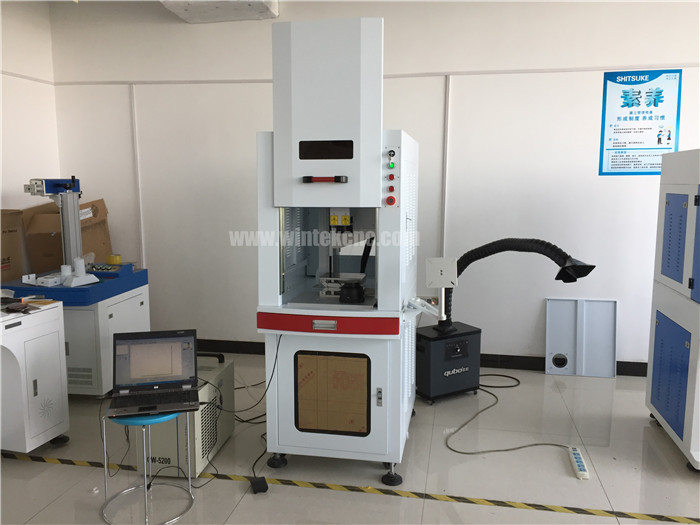

UV Laser Marking Machine with protection cover

Features of UV laser marking machine :
1. Equip with imported UV laser generator to guarantee high-quality laser beam, smaller laser spot, hyperfine marking, and high definition;
2. Extremely small heat-affected zone, almost no thermal effect on the material, which prevents materials from deformation, damage or burning;
3. Imported high speed digital scanning galvanometer enjoys compact volume, high speed and superior stability;
5. Precise interactive platform equipped with both automatic and manual modes, meets customer’s demand of multi-position automatic production and improves productivity;
6. The whole machine enjoys stable performance, compact volume and low power consumption.
7. With smaller heat affected area and more beautiful marking effect, our products can meet customer’s demand of higher marking requirements.

Technical Parameter of UV laser marking machine :

Wavelength	355nm
Power	3w/5w/8w/10w/15w
Cooling method	Air cooling/water cooling
Marking area(mm)	110110/175175/ 360*360
Focal Length (mm)	180 /260/580
Min line width	≤0.002mm
Min Character	0.1mm
Max speed	0~7000mm/s
Graphic Format	PLT/DXF/AI/JPG/BMP etc
Voltage	AC220V±10%
Frequency	50Hz/60Hz
Machine dimension (mm)	75012001950
Machine weight	300kg
Working environment	clean,less dust 15-30℃,Humidity:5~85%
Gross power	1.5Kw

Application of UV laser marking machine :

UV Laser Marking Machine adopts 355 nm ultraviolet laser research and development, compared to the infrared laser, it more intracavity frequency doubling technique beccuse of High quality sp 355 uv light, can largely reduce the material and processing of mechanical deformation heat effect is small.

UV Laser Marking Machine is mainly used for super fine marking, engraving, especially suitable for used in food, medicine packaging material marking, microporous, glass material of high speed divided and complex graphics on silicon wafer cutting and application field.

UV laser are mainly used for marking and surface treatment of circular microchips, thin ceramics, IC crystal particles, glasses, TFT, LED, plasma screens, precise key marks, glass surface marks, silicon wafer marks, PCB processing, flat-panel display production, fine tuning of electronic elements, processing of solar energy battery materials, textiles and thin polymer films, etc.
samples of uv laser marking machine

Details of uv laser marking machine :

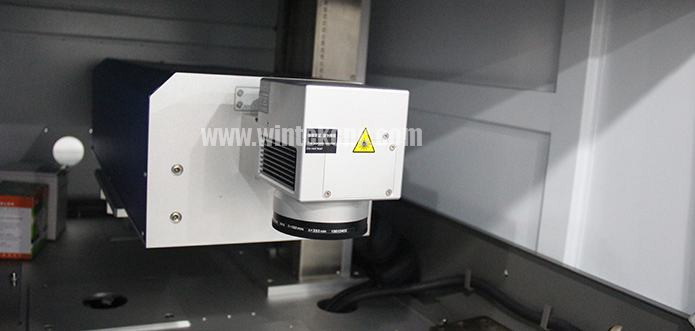

1. Well-known digital high speed scanning galvanometer

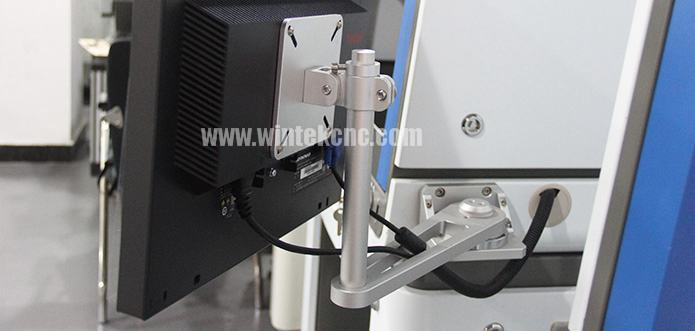

2.User-friendly operation interface :

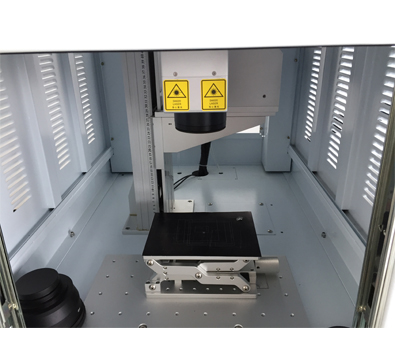

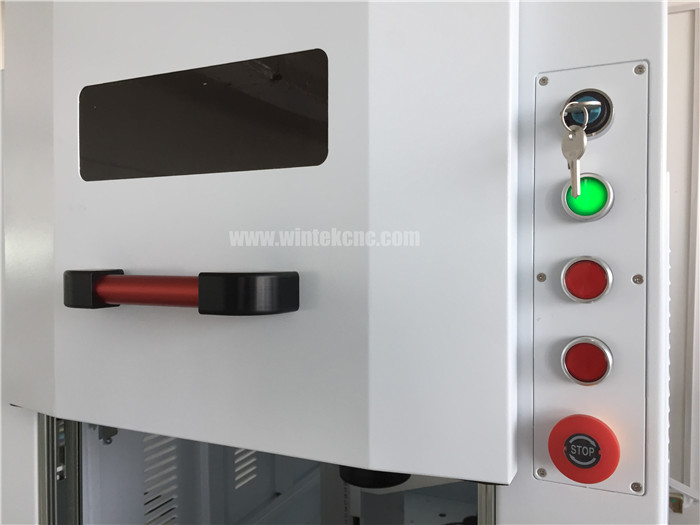

3. Safety machine cover , environmental protecting :

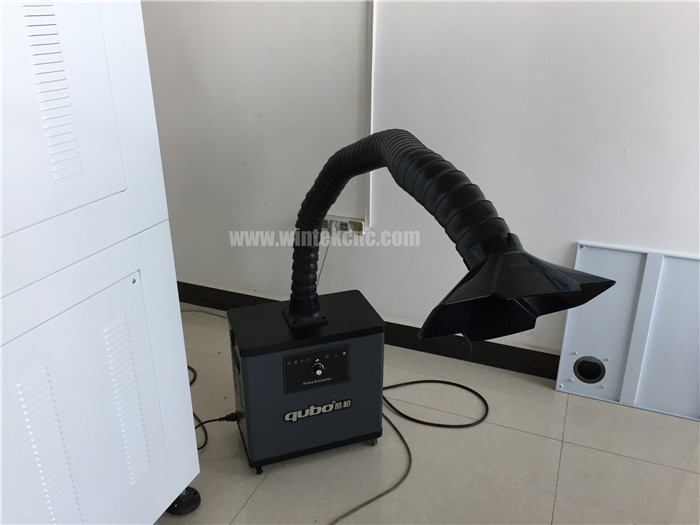

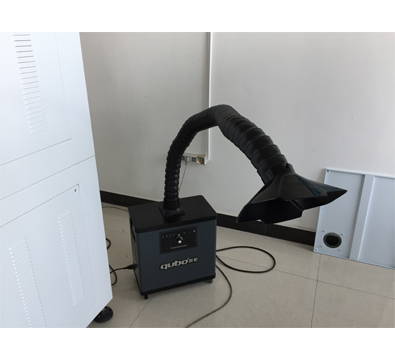

4. Dust collector :
dust collector of uv laser marking machine

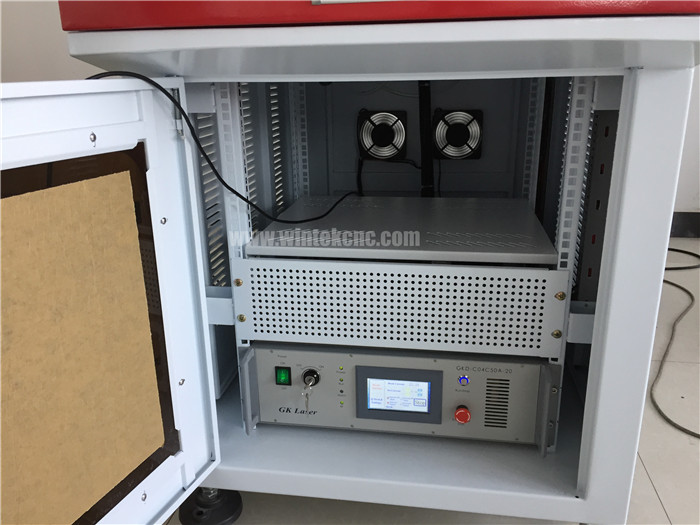

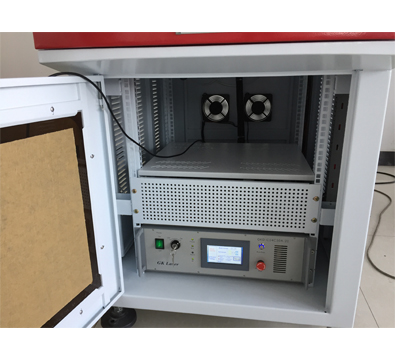

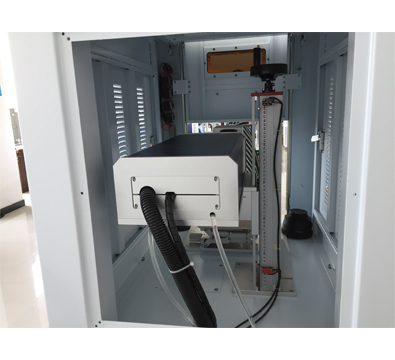

5. Equipped with imported famous UV laser generator :
