CO2 Laser Cutting Machine with CCD Camera for paper,fabric,leather,garment,textile

Inquiries:

612

Model: WTJ-1610-2H-CCD Category: Co2 Laser Cutting Machine
Brand:
FOB Price:

USD

4000$-5600$ FOB Qingdao

Port From: Qingdao,Tianjin,Shanghai,Guangzhou,China all port Payment Terms: TT(Telegraphic Transfer),LC(Letter of Credit),Western Union,Alibaba Skype to usSend a request

Product Details

Send a Request

CO2 Laser Cutting Machine with CCD Camera can help you scan the cut the specific design automatically.It can cut paper,fabric,leather,textile,acrylic and so on.

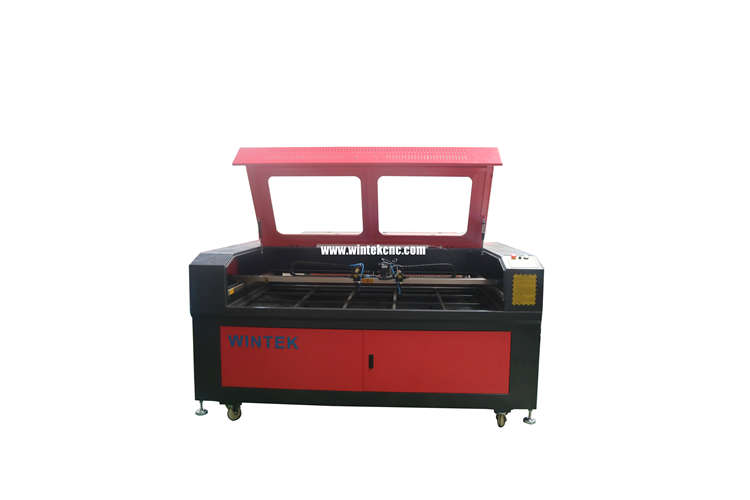

CO2 Laser Cutting Machine with CCD Camera for paper,fabric,leather,garment,textile

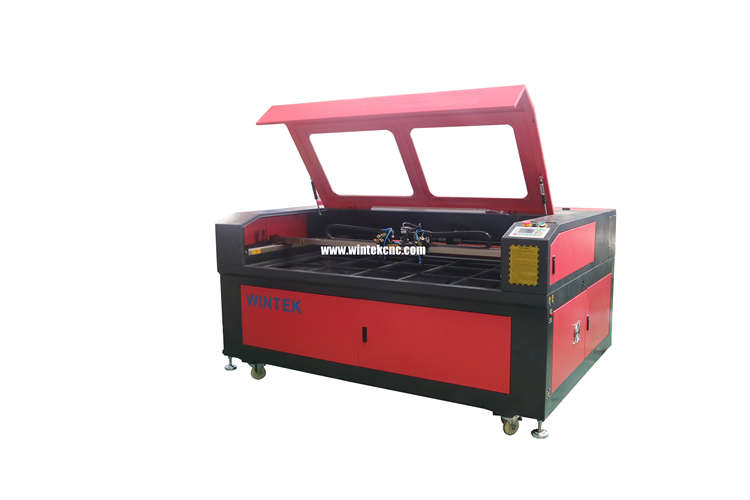

CO2 Laser Cutting Machine with CCD Camera for paper,fabric,leather,garment,textile

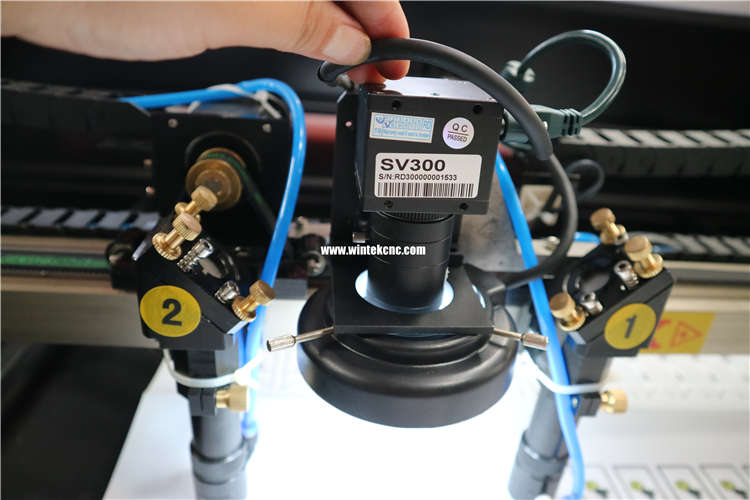

CO2 Laser Cutting Machine with CCD Camera

Videos of laser cutting machine with ccd camera :

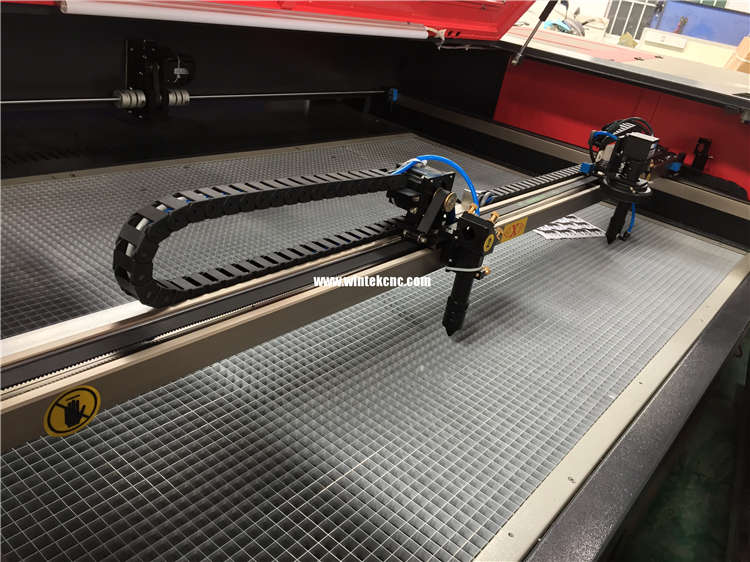

CO2 Laser Cutting Machine with CCD Camera for paper,fabric,leather,garment,textile
CO2 Laser Cutting Machine with CCD Camera for paper,fabric,leather,garment,textile
table of CO2 Laser Cutting Machine with CCD Camera for paper,fabric,leather,garment,textile

Features of CO2 Laser Cutting Machine with CCD Camera:

· Automatically recognize the distorted outline;

· Intelligently handing distorted image;

· Super high recognition precision≤0.5mm;

· Smooth cutting edge,enhanced product quality;

· Friendly interface , aged operator can handle.

· Automatically positioning and cutting various graphics

· Hig precision visual identification system with 8 million pixel



Applications&material of Co2 laser cutting machine with CCD :

It is suitable to professional user for cutting performance in garment,leather,cloth toy, computerized embroidery and clipping, cutting of template, art gift,  Cloth, fabric, leather, woolen, paper, wood, acrylic, organic glass, rubber, plastic, compound material, etc

sample of CO2 Laser Cutting Machine with CCD Camera
sample of CO2 Laser Cutting Machine with CCD Camera

Technical parameter of CO2 Laser Cutting Machine with CCD Camera :



Model

WTJ1610-2H-CCD
Single head or two heads are both available

Engraving and Cutting Area

1600*1000mm
Size and power can be customzied.

Laser Power

100W (Optional:80W,130W,150W)

Laser type

CO2 sealed glass tube, Wavelength: 10.6um

Engraving Speed

0-60,000mm/min

Cutting Speed

0-30,000mm/min

Reposition Accuracy

±0.01mm

Machine Resolution

1,000 --- 10,000 DPI

Laser Output Control

0-100% No section control,Soft inner 0-100% adjustable.

Minimum Character Size

English:1mm ; Arabic numbers:1mm

Machine Power

<1,700W

Support Format and Software

PLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw

Working Environment

Temperature:0-45°C   Humidity 5%-95% ( No condensate water)

Drive system

Stepper motor

Control system

DSP system

Exhaust smoke system

Big exhaust fan

Working Voltage

220V,50HZ/60HZ

N.W.

550KG

G.W.

660KG

Warranty time

1 year

Package

Wooden case

Delivery time

2 days



Production process of CO2 Laser Cutting Machine with CCD Camera :
production line for CO2 Laser Cutting Machine with CCD Camera

If you want to cut auto feeding device with CCD, follow model is more suitable.
Please visit :  Auto feeding fabric laser cutting machine with CCD.
