Model: WTJ-6090 Category: Co2 Laser Engraving Machine
USD
1900$-2600$ FOB Qingdao

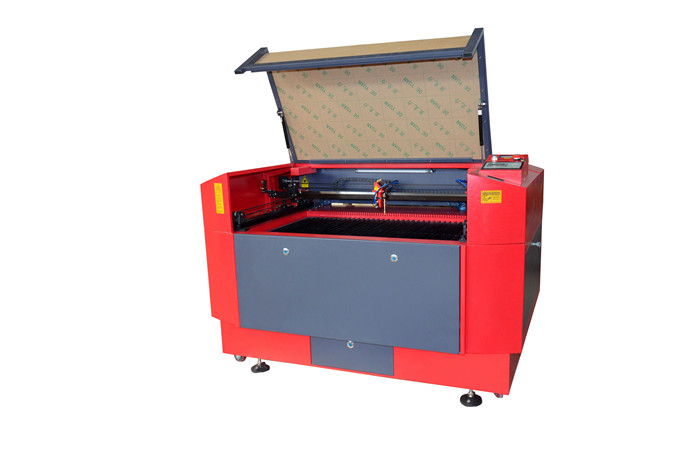

6090 CO2 Laser Engraving Cutting Machine can cut and engrave many materials, such as acrylic,leather,mdf,wood,paper and so on.
Application of 6090 co2 laser machine :
Machine is mainly used for the engraving and cutting on acrylic, wood, variety of plastic, Fabrics (silk fabrics, cotton fabrics, decorative fabrics, polyester fabrics, synthetic fabrics,), leather (leather, artificial leather, decorative leather, packaging leather, soft-leather), cardboard and other supplies and so on.
|
Material |
Cut |
Engrave |
|
Acrylic | Plexiglass | PMMA | Perspex |
√ |
√ |
|
Organic board | Double color sheet |
√ |
√ |
|
Wood | Plywood | Veneer | MDF | Balsa |
√ |
√ |
|
Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather |
√ |
√ |
|
Fabric | Cloth | Textile |
√ |
√ |
|
Carpet | Mat | Rug | Wool Felt |
√ |
√ |
|
Paper | Cardboard | Chipboard | Press Board |
√ |
√ |
|
Ceramic | Tile | Marble | Glass |
√ |
√ |
|
Plastic |
√ |
√ |
|
Fiber Glass | Filter Cloth |
√ |
√ |
Description of 6090 co2 laser machine :
1>Advanced DSP Digital Control technology and Integrated Frame Structure to ensure Work Stability.

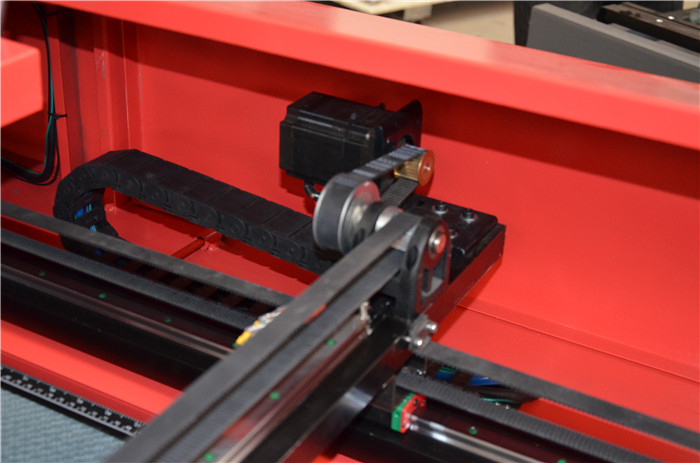

2>Original Imported Straight Linear Guide Rail X. Y axis running on a high Speed and Precision.

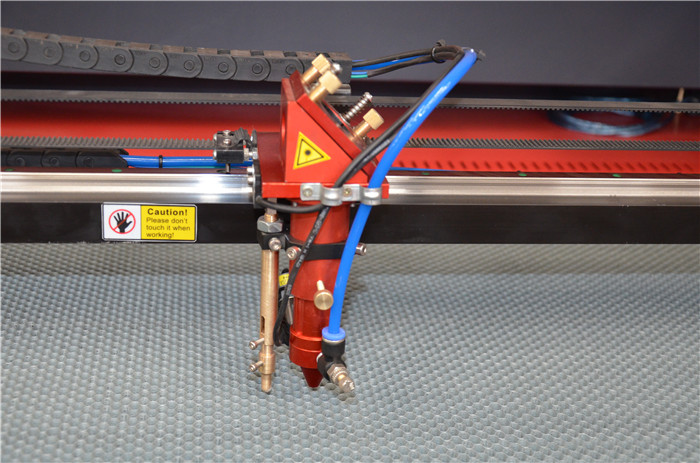

3>Imported Reflected Lens and II-VI ZnSe focus lens in the Optical System Can greatly Reduce the heat loss.
4>High Quality CO2 Glass Sealed Laser tube Provides Strong Stable Laser beam mode and Longer Service Life.
5>The Laser tube adopts Compulsive Water Cooling System, Water Chiller Can Control the temperature Automatically.

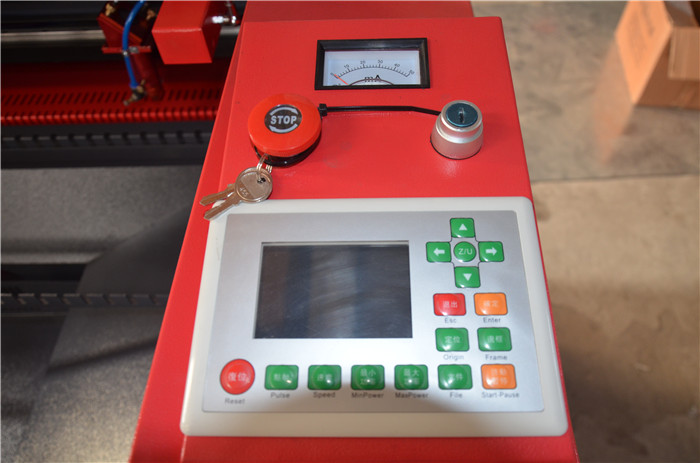

6> LCD Control Panel in English.
7> Equipped with Hydraulic protection,Exhaust dust and smoke device,the huff protection.
Optional parts of 6090 co2 laser machine :
1. Up-down table, for big thickness materials
2. Rotary
3. Auto feeding system, for fabric and garment cutting with high working efficiency.

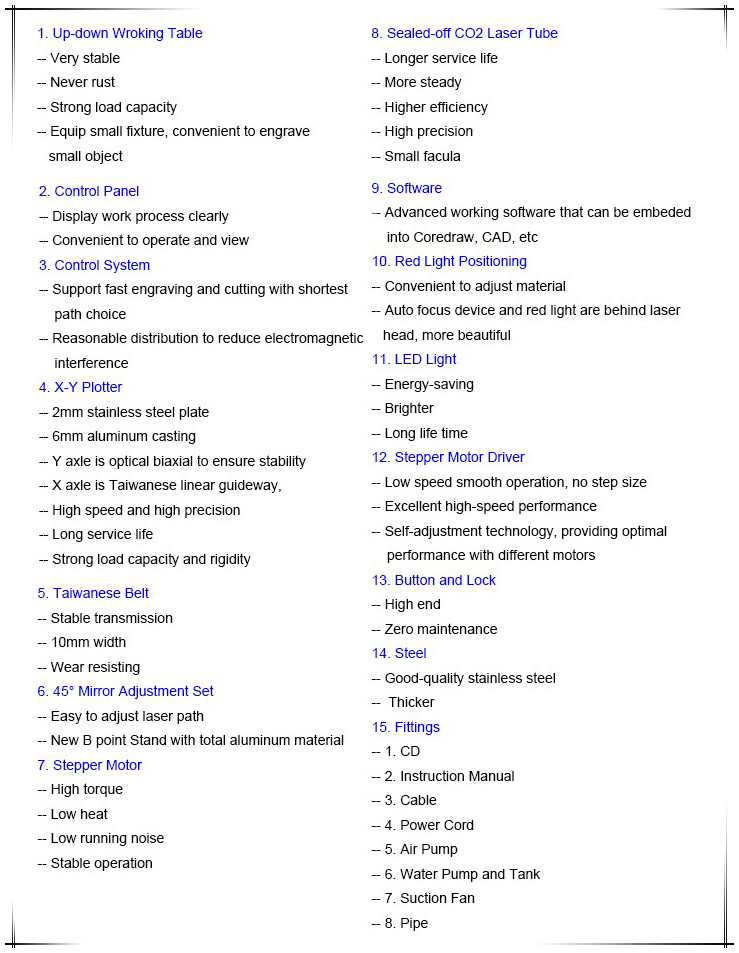

Simple introduction for 6090 co2 laser machine :

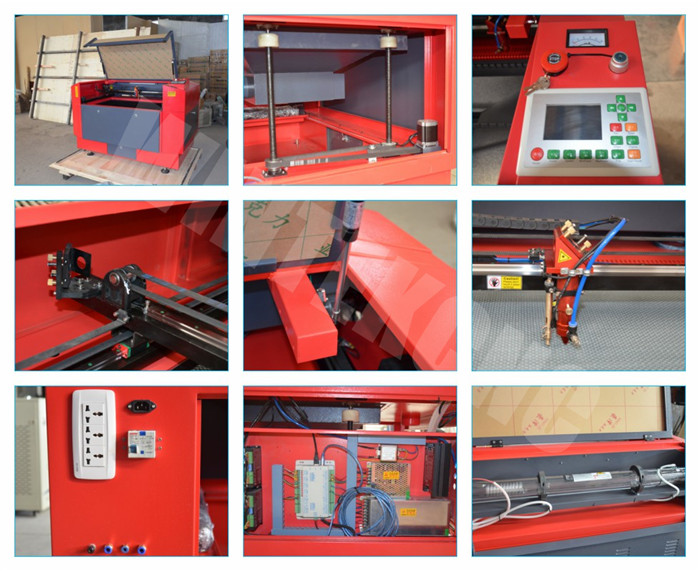

Machine details of 6090 co2 laser machine :
Technical parameter of 6090 co2 laser machine :
|
NO. |
Description |
Parameter |
|
1 |
Model |
WTJ-6090 |
|
2 |
Engraving area |
600*900mm |
|
3 |
Laser power |
60w 80w 90w 100w 130w 150w |
|
4 |
Engraving speed |
0-36000mm/min |
|
5 |
Cutting speed |
Difference material difference speed |
|
6 |
Resolution ratio |
0.03mm |
|
7 |
Power supply |
110V/220V±10% 50/60Hz |
|
8 |
Positioning speed |
20m/min |
|
9 |
Operating system |
RD6442 control system or Leetro control system |
|
10 |
Working table |
Blade table or honeycomb table |
|
11 |
Table control mode |
Manual / Electric |
|
12 |
Max engraving speed |
1000mm/s |
|
13 |
Max cutting speed |
600mm/s |
|
14 |
Locating Precision |
<0.01mm |
|
15 |
Min shaping character |
Character 2×2mm, Letter 1×1mm |
|
16 |
Resolution |
0.0125mm |
|
17 |
System Environment |
WINDOWS XP/ WIN7/8/10 |
|
18 |
Graphic file format |
BMP,PLT,AI,DCR,DXF |
|
19 |
256 color separation output |
Support |
|
20 |
Off-line working |
Support |
|
21 |
Cooling system |
Water chiller cw3000 |
|
22 |
Water protecting sensor and alarm |
Yes |
|
23 |
Net weight / Gross weight |
160KG / 210KG |
|
24 |
Machine size / Packing size |
1470*1090*1070mm/ 1530*1210*1360mm |
