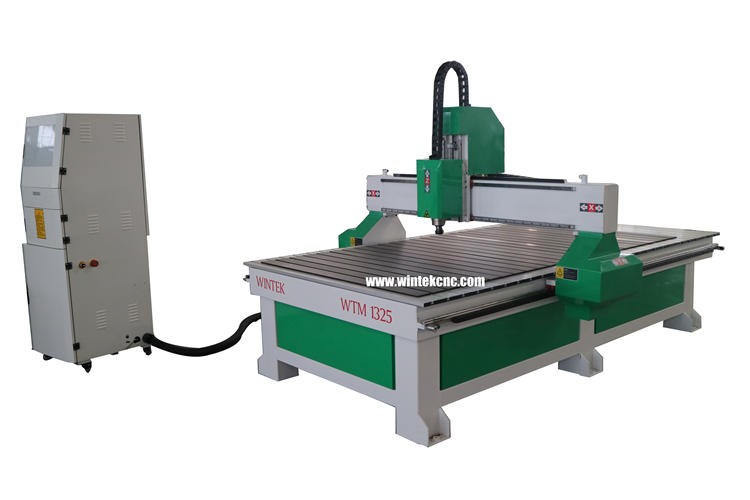

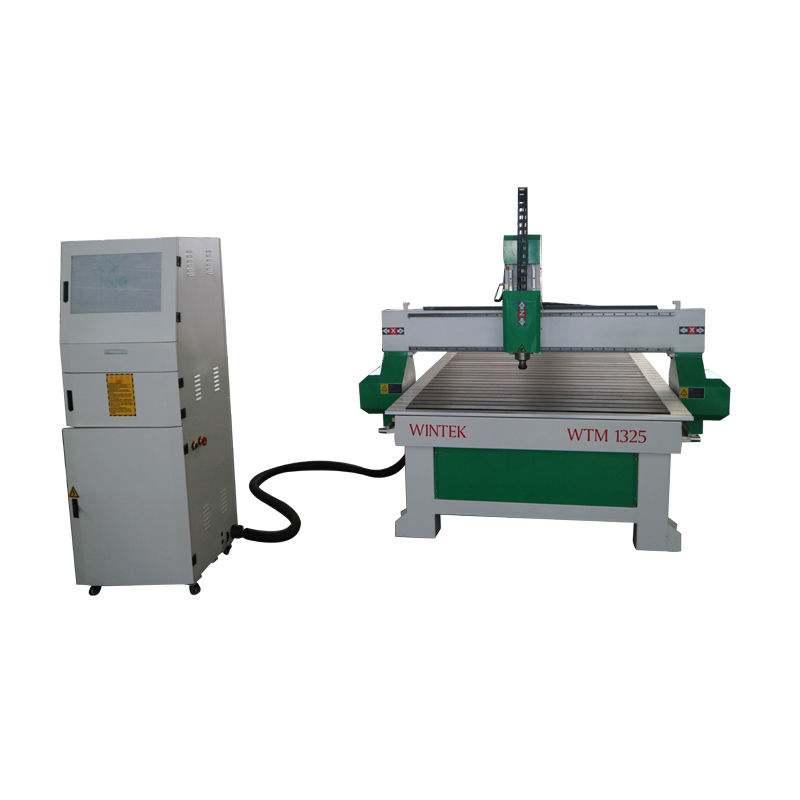

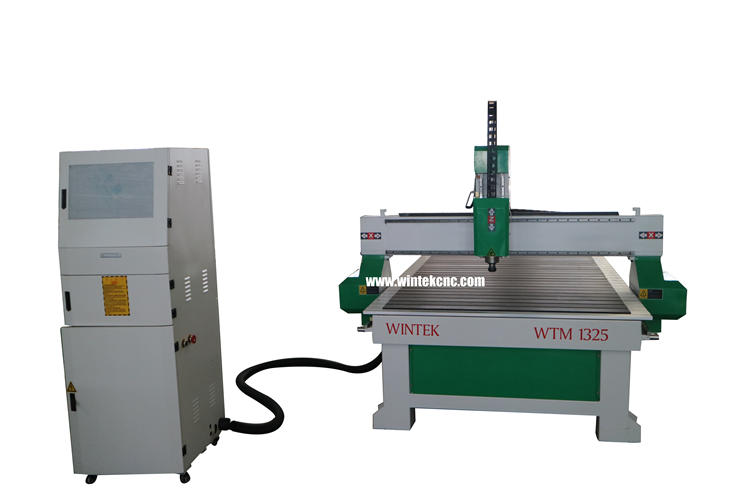

Model: WTM1325 Category: Wood CNC Router
USD
3650$-4500$ FOB Qingdao
Wintek 3d cnc wood carving router machine can engrave and cut wood,acrylic,plywood,mdf,aluminum,pvc and many different materials.

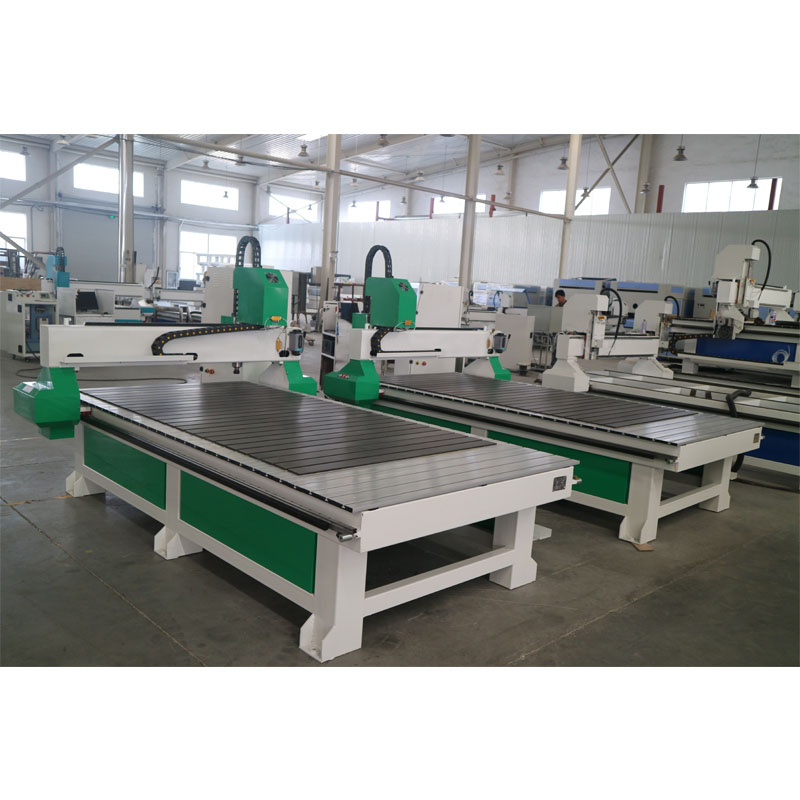

Our Libya customer tested two sets cnc router in our factory :
Technical Parameter of this 3d cnc wood carving router machine :
|
Working Size |
1300*2500*300mm(Can be customized) |
|
Traveling Positioning Accuracy |
±0.03/300mm |
|
Repositioning Accuracy |
±0.03mm |
|
Spindle Power |
3.0kw CS water cooling spindle |
|
Spindle Speed |
18000RPM |
|
X, Y axis |
Helical rack, Hiwin 25# Rail Linear Bearing |
|
Z axis |
Hiwin Rail 25# Linear Bearing & TBI Ball Screw |
|
Max. Rapid Travel Rate |
40000mm/min |
|
Max. Working Speed |
25000mm/min |
|
Motor driver |
Stepper motor (Servo motor optional) |
|
Control System |
Richauto A18 DSP controlling system |
|
Table |
T-slot Table (Vacuum table optional) |
|
Frame |
Welded Structure |
|
X,Y Resolution |
<0.01mm |
|
Software Compatibility |
Type3/UcancameV9/Artcam Software |
|
Running Environment Temperature |
0 - 45 Centigrade |
|
Relative Humidity |
30% - 75% |
Application of this 3d cnc wood carving router machine:
1.Materials could be used: Wood, Timber, PMMA, PVC Sheet, ABS sheet, KT sheet, Gemstone, Marble, Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics and etc.
2.Widely used in furniture industry(2D & 3D), furniture decoration industry, carpenter decoration, instrument ndustry, wooden handicraft industry, large plate plane carving, wood furniture carving, density plate engraving, window and door carving and so on.
Features of this wood cnc router machine:
1) This machine come with big size and is widely used in cutting and engraving work
2) DSP controller system which allow operator control machine without computer
3) With vacuum table: the vacuum table comes with 6 adsorption zones, with vacuum pump, it can adsorb the big Plywood board, MDF sheet, plate or any other small work-piece to the table firmly, this will avoid the materials moving during working, improve the working accuracy.
4) X Y Z axis use Taiwan HWIN square linear rail to ensure the machine work rapidly and precisely.
5) Wholly cold-roll machine structure, which is very heavy and strong, this reduce the shaking during working and increase the stability to ensure the machine have very high precision.
6) It is widely used in furniture, advertising and plate-making industry.
Details of this 3d cnc wood carving router machine :

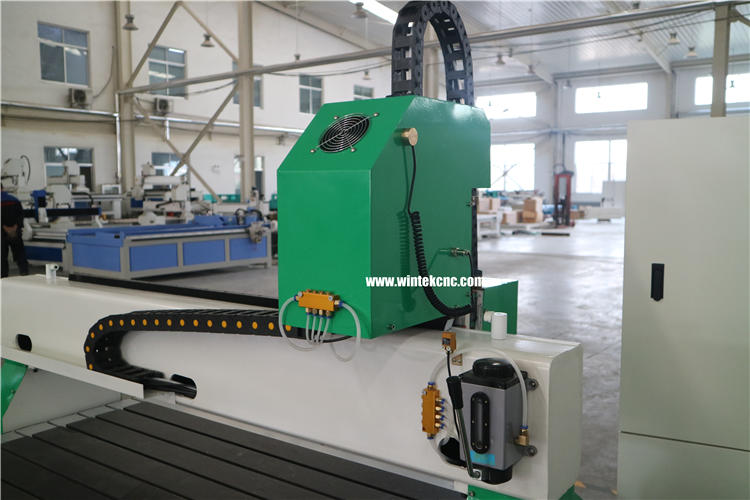

1. Heavy gantry and tool sensor :

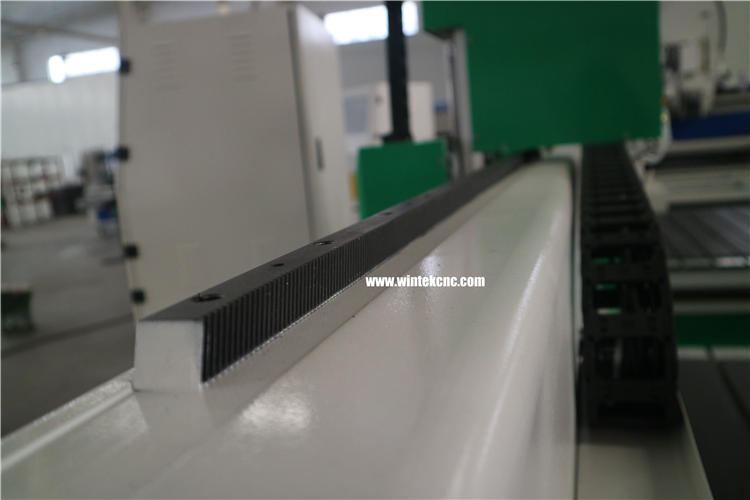

2. Hecical Rack transmission :

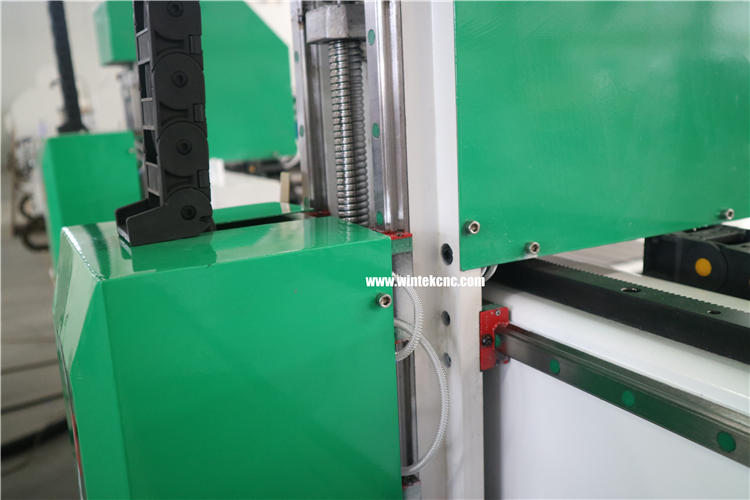

3. Taiwan TBI ball screw transmission :

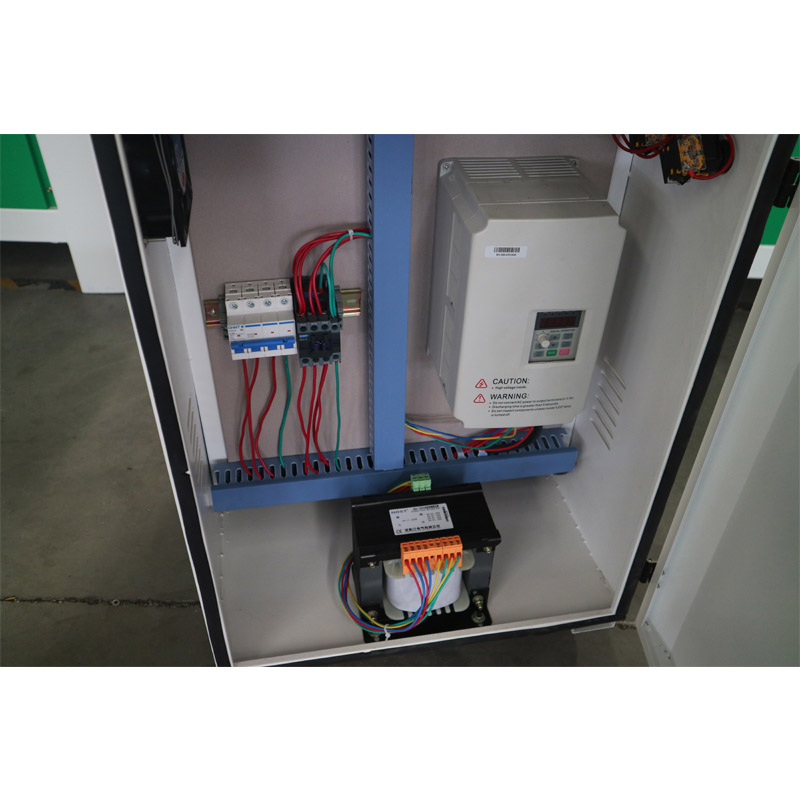

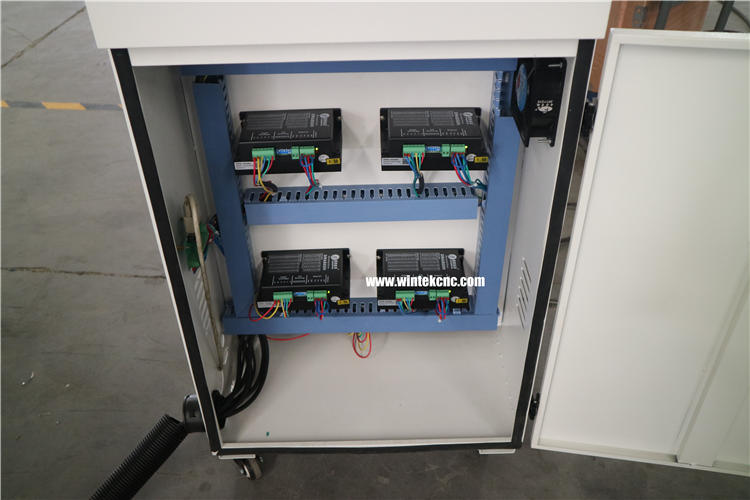

4. Leadshine drivers :
If your requirement is not same with this machine, please contact us to confirm details.
