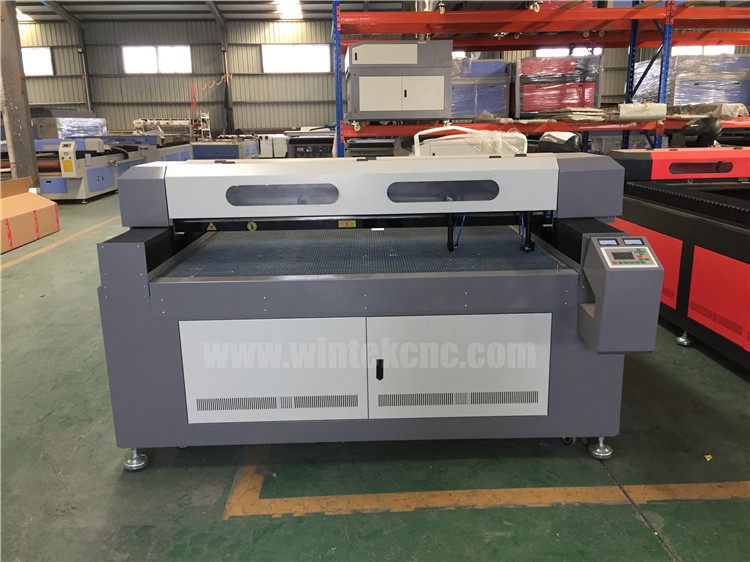

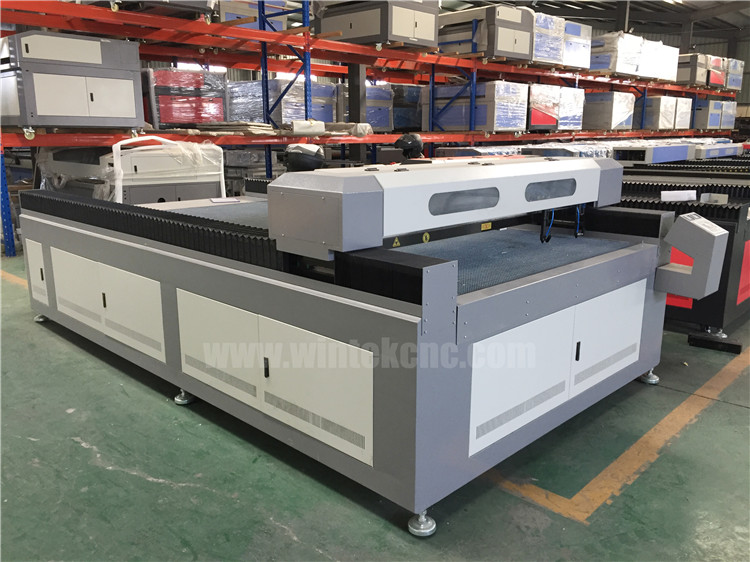

Model: WTJ1325-2 Category: Co2 Laser Cutting Machine
USD
4200-6800$ USD
150w laser cutting machine is used for processing many materials,such as plywood,mdf,plastic,leather, fabric,paper,thin stainless steel and ect. Welcome to visit wintek factory.
Main configurations of 150w laser cutting machine for sale,150w co2 laser cutter for sale :
#Working size 1300*2500mm

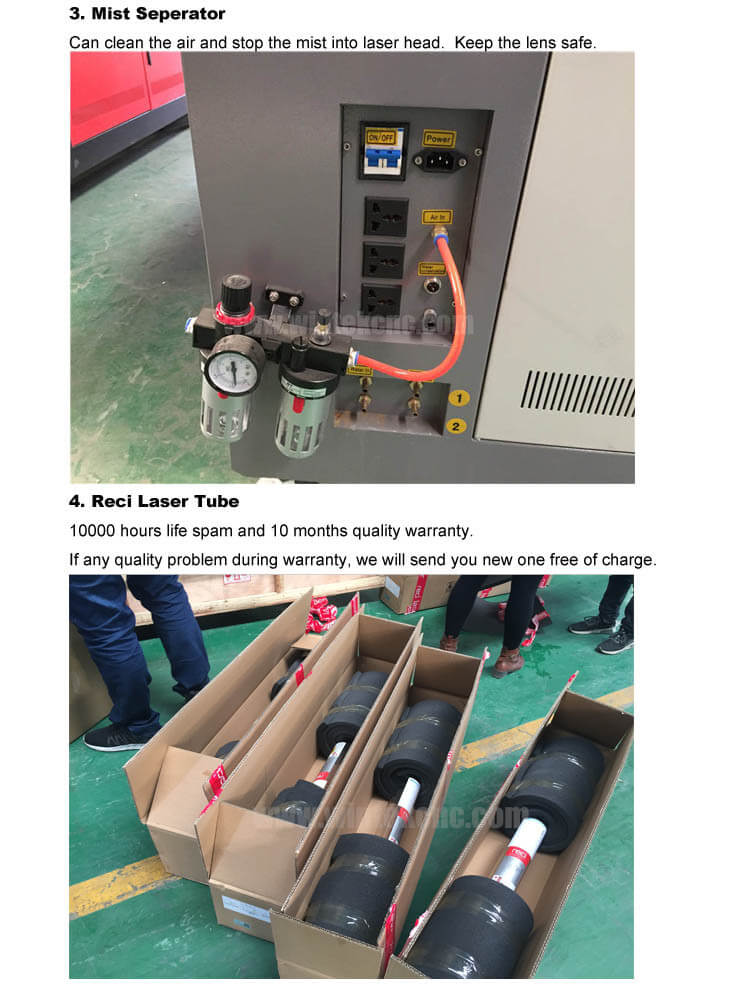

#Reci Tube W1(75w-90w), W2(90w-100w),W4(100w-130w),W6(130w-150w),W8(150w-180w)
#Ruida RDC6442S control systerm(comppatible
#Water Chiller CW5000 or CW5200
#Taiwan HIWIN linear square Rails and
#Leadshine stepper motor and drivers
#Dust collector
#Air pump
#Exhaust Fan&exhuast pipe
#Steel Belts

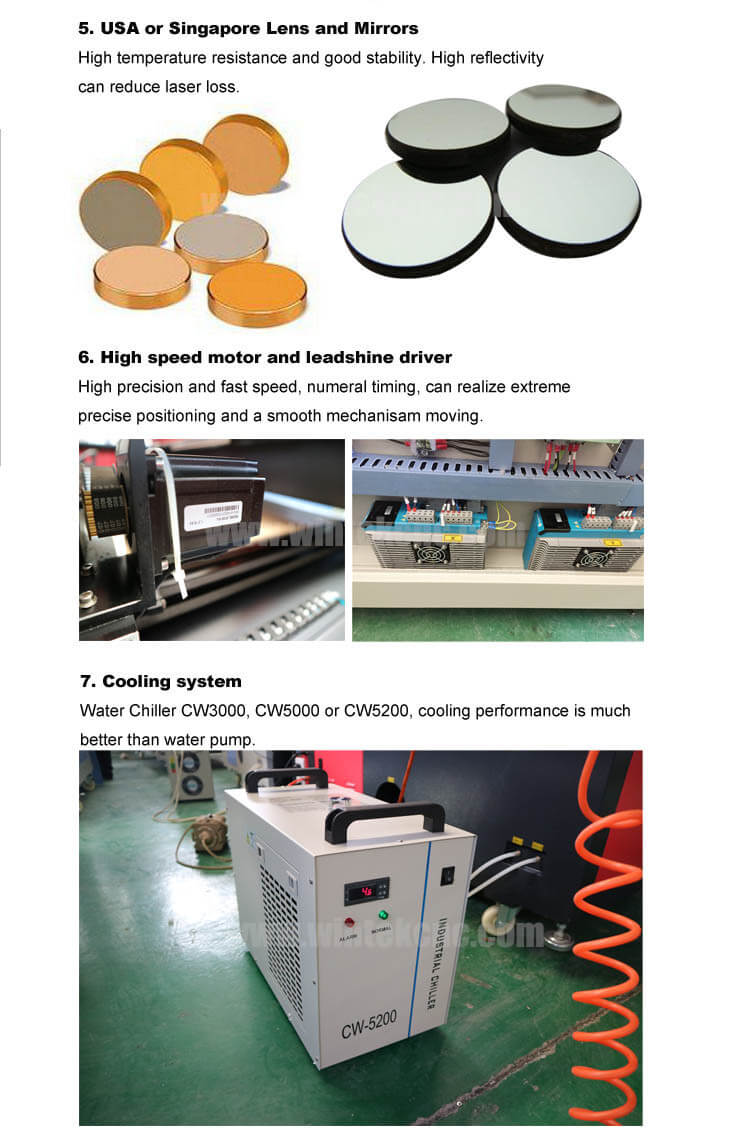

#Singapore Lens
#Honeycomb table or aluminum
#USB offline
#Water protection switch
#Red light point
Technical Parameter of 150w laser cutting machine for sale,150w co2 laser cutter for sale:
|
Application |
|
|
150w laser cutting machine is mainly designed for cutting thick non-metallic material, such as Acrylic, MDF, Die Board, and 2mm Stainless Steel. The feature of this laser cutter is perfect cutting effect and high cutting speed. |
|
|
Technical Parameters |
|
|
TYPE |
WTJ1325-2 |
|
Working Area |
1300mm(W)*2500mm(L) |
|
Laser Power |
150W/130W/100W/80W/60W |
|
Laser Type |
Sealed CO2 Laser Tube |
|
Cutting Depth (recommended) |
Max. 30mm Acrylic / 2mm Steel / 20mm Die Board / 15mm MDF / 15mm Wood |
|
Max. Cutting Speed |
0-200mm/s |
|
Resetting Positioning Accuracy |
≤0.01mm |
|
Lifespan of Laser Tube |
Max. 10000 Hours |
|
Maximum Forming Character |
English letter: 1.5 x 1.5mm |
|
Power Supply |
220V±10% 50HZ or 110V±10% 60HZ |
|
Software Supported |
ArtCut, CorelDraw, PhotoShop, AutoCAD |
|
Graphic Format Supported |
PLT,DXF,BMP,JPG,GIF,PGN,TIF, etc. |
|
Transmission |
X and Y axis adopt Ball Screws |
|
X and Y axis adopt Linear Guide Rail from Taiwan |
|
|
Drive Type |
Step motor/Servo Motors |
|
Interface |
USB 2.0 |
|
CO2 Laser Tube |
Yes |
|
Laser Power Supply |
Yes |
|
ZnSe Lens--Imported |
Yes |
|
Si/Mo Mirror--Imported |
Yes |
|
Air Compressor and Exhaust Fan |
Yes |
|
Water Chiller |
Yes |
|
Videos and User Manual |
Yes, you can learn how to focus, adjust the laser path and operate the machine. |
|
Fixed Honeycomb Worktable |
Yes, but you can change it into Fixed Aluminum Worktable, the price will not change. |
|
Software authorized |
The default Control Software is LaserCut 5.3, when you install the software, you can choose LaserCut 5.3, AutoCAD or Coreldraw. We have added some function keys onto the software "Coreldraw" and "AutoCAD". |
|
Water-cooling System for tube |
Yes. |
|
Equipment Dimension |
2300mm*1850mm*1350mm |
|
Package Size |
2700mm*2250mm*1650mm |
|
Net Weight |
1150 kg |
|
Gross Weight |
1350 kg |
|
Optional Device |
Following Laser Head for better metal cutting effect--imported from USA |
|
Recommended Spare Parts |
Lens, Mirror, Laser Power, Sensor |

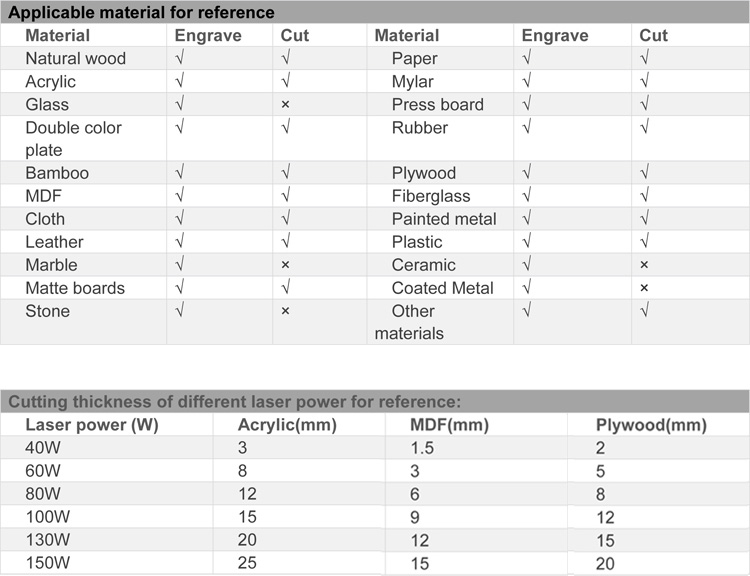

Different power can cut different thickness materials :

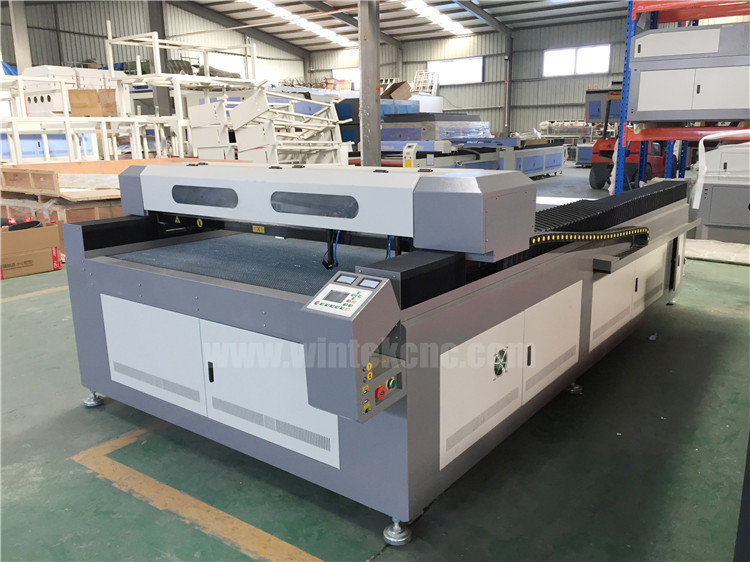

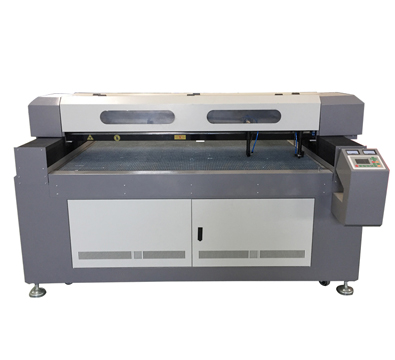

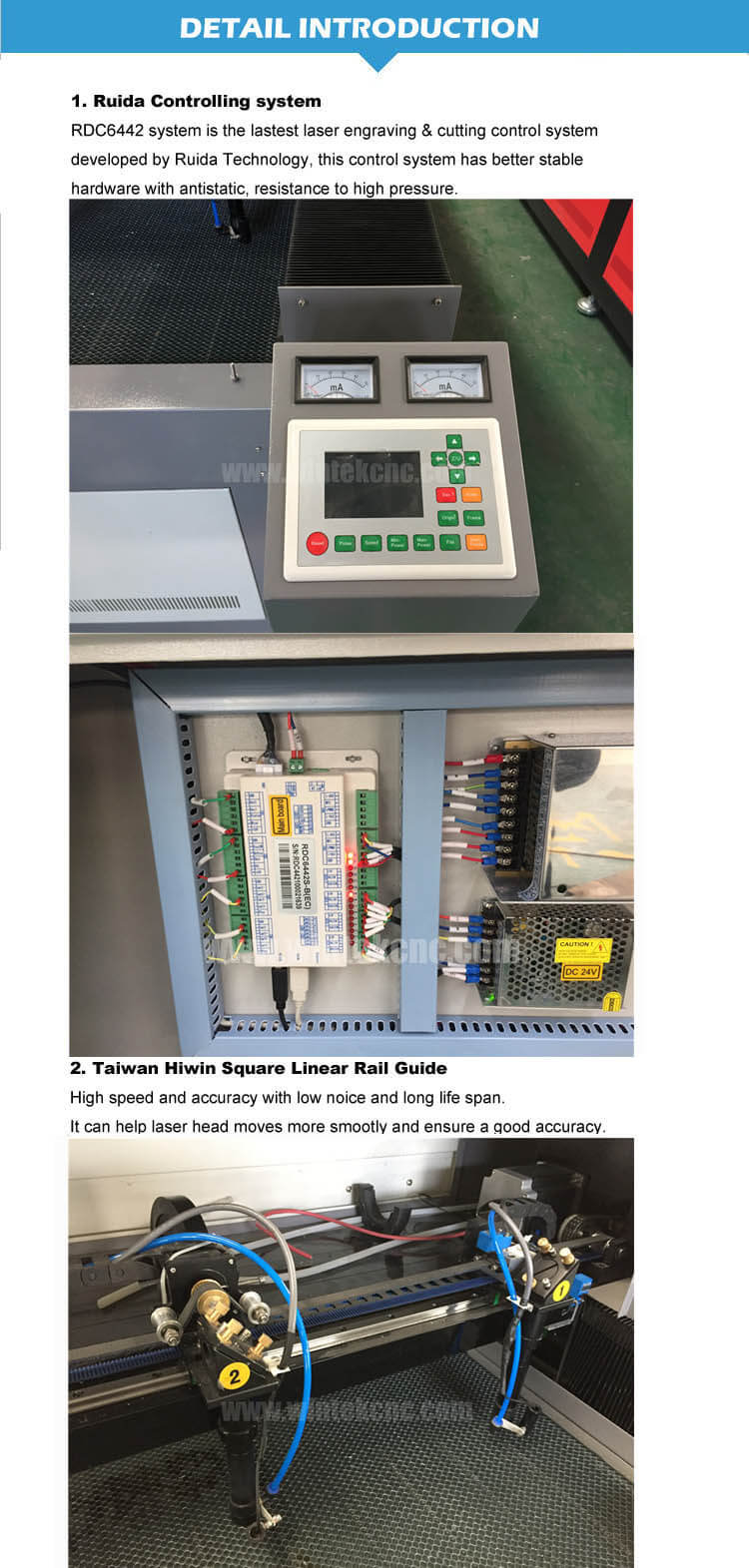

Details of 150w laser cutting machine for sale,150w laser cutter for sale:
Features of 150w laser cutter for sale,150w laser cutting machine for sale :
1. Adopting seamless welding and body bending technology, can make sure the machines’ stable and reliable working performance.
2. X,Y axis adopted high precision and high speed Shanghai Fulong belt transmission.
3. Red light positioning system realizes the exact position without laser.
4. Taiwan Hiwin square guide rail, high accuracy and long life time.
5. Special “front” and “back” open design suitable for the super-length material process.
6. Adopting high-torque Leadshine stepper motor and drivers.
7. Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.

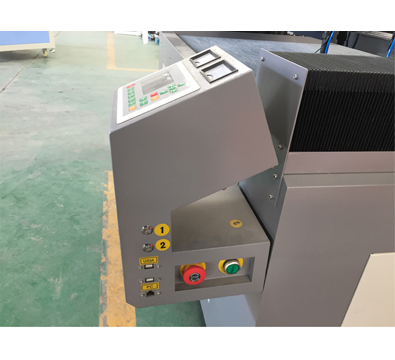

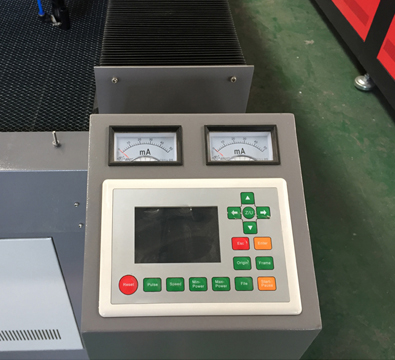

8. Control panel in English, convenience of operation control.
9. Has the function of re-carving after break point and power failure.
10. Offline control system which can not only work without computer, but also connect to U disk, USB communication.
