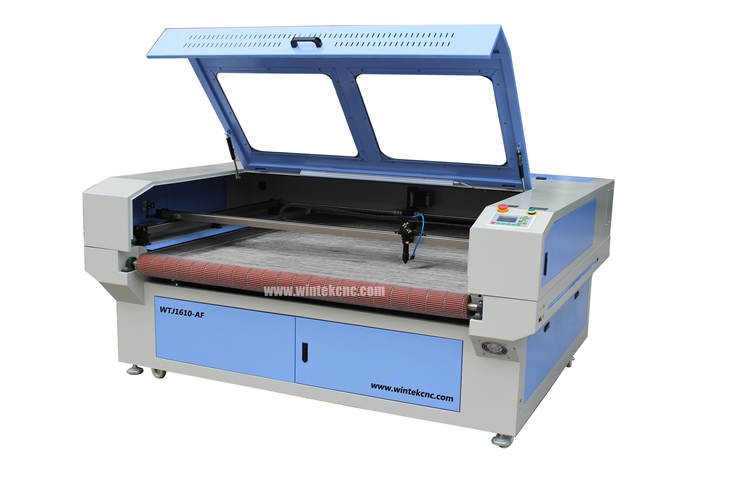

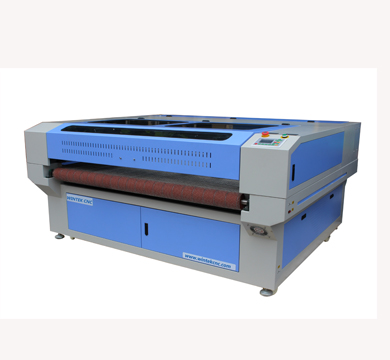

Model: WTJ1610-AF Category: Co2 Laser Cutting Machine
USD
4500$-6500$ FOB Qingdao
Wintek automatic fabric laser cutting machine can help you cut leather, cloth anticipates, rubber, fabric, textile, PU, plastics, paper, bag clothing, shoe etc. most of nonmetal materials.

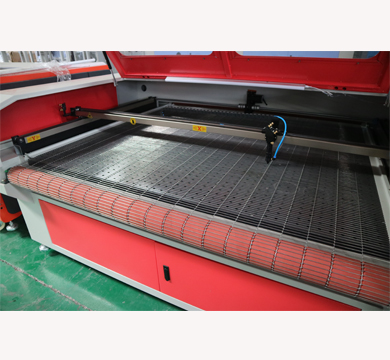

Auto-Feeding CNC fabric Laser Cutting Machine adopt the auto-feeding system working table, used to cut soft materials in rolls automatically. This laser cutting machines equipped with single or double cutting heads and auto feeding system, especially suitable to the mass laser cutting and engraving of appliqué embroidery, textile, fabric etc.
|
Parameter |
|
|
Name |
Automatic fabric laser cutting machine |
|
Model |
WTJ1610-AF |
|
Working area |
1600*1000mm(1300*900mm,1800*1000mm,1600*3000mm optional) |
|
Cooling ways |
Water cooling |
|
Engraving speed |
0-40000mm/min |
|
Cutting speed |
0-40000mm/min |
|
Laser power |
80W,100W,130W,150w |
|
Laser type |
CO2 laser,RECI brand,service life >10000hrs |
|
Laser output control |
0-100% controlled by software |
|
Min engraving size |
English letters,1*1mm |
|
Scanning resolution |
4000DPI |
|
Locating accuracy |
≤0.01mm |
|

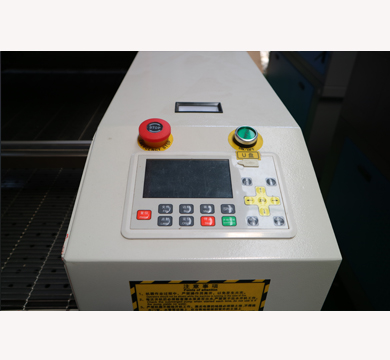

Controlling software |
DSP controlling system,RDWORKS V8 |
|
Format supported |
DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc |
|
Software environment |
Windows xp/7/8/10 |
|
Compatible software |
Coreldraw,Autocad |
|
Color separation output |
Yes |
|
Slope engraving |
Yes |
|
Driving system |
Stepper motor |
|
Auxiliary accessories |
Exhaust fan,fume tubes,air pump |
|
Working table |
Stainless steel net +Auto-feeding working table |
|
Applicable materials |
Fabric,leather,wood,MDF,glass,stone,plastic,rubber , etc |
|
Working environment Temperature |
0-45℃,Humidity5-95%(no condensate water.) |
|
Power supply |
110v/220v,50hz/60hz |
|
Weight |
550kg |
Features of automatic fabric laser cutting machine :
(1)Auto feeding laser cutting machine is equipped with single or double laser cutting heads and auto feeding system. The feeding system can load materials automatically which can save your labor force and cut the cost.
This laser cutting systems is especially suitable for the mass processing of textile and garment.
(2) This laser cutting machines can cut any curve fast and consecutively and save more than 128 files so that users can complete the mass production without the connection to the computer.
Applicable Materials of automatic fabric laser cutting machine :
The leather, cloth anticipates, rubber, fabric, textile, PU, plastics, paper, bag clothing, shoe etc. most of nonmetal materials.
Applicable Industry of fabric laser cutting machine :
Auto feeding laser cutting machine is applicable to printed brand,electronic panel,mask,textile brand(woven label),cutting after embroidering of embroidery and such multitudinous industrializations application.
Details of automatic fabric laser cutting machine :

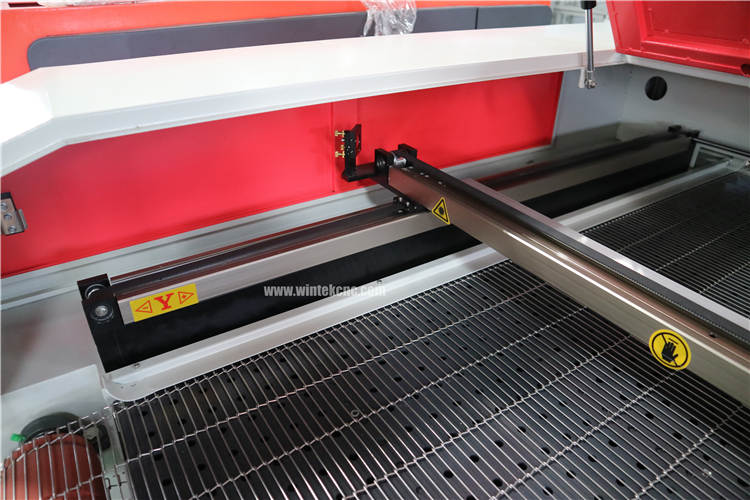

2--Fast rail guide :

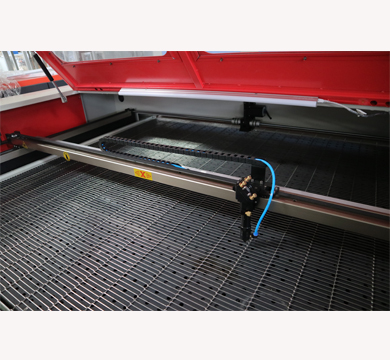

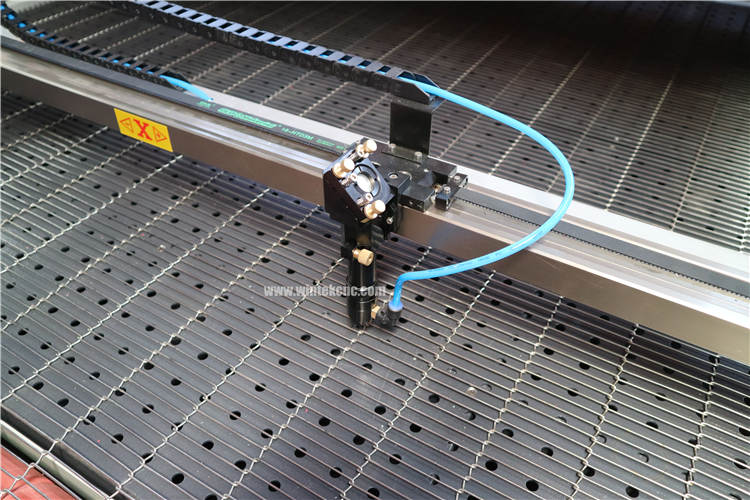

3--Cutting laser head :

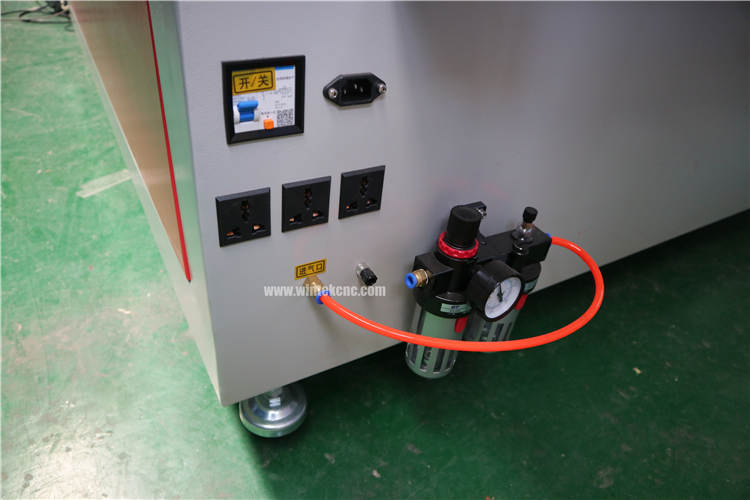

4--Mist separator :

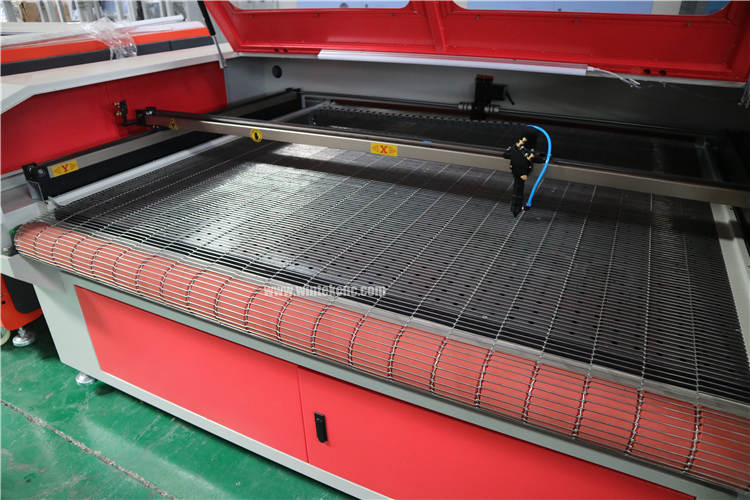

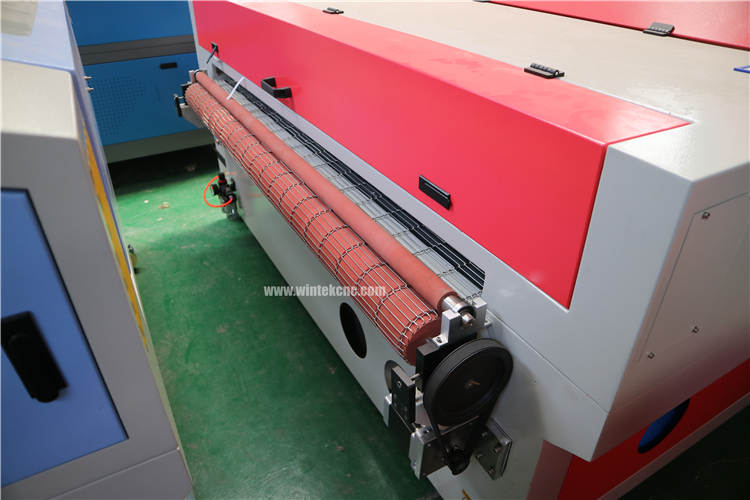

5--Rubber Roll of automatic fabric laser cutting machine :

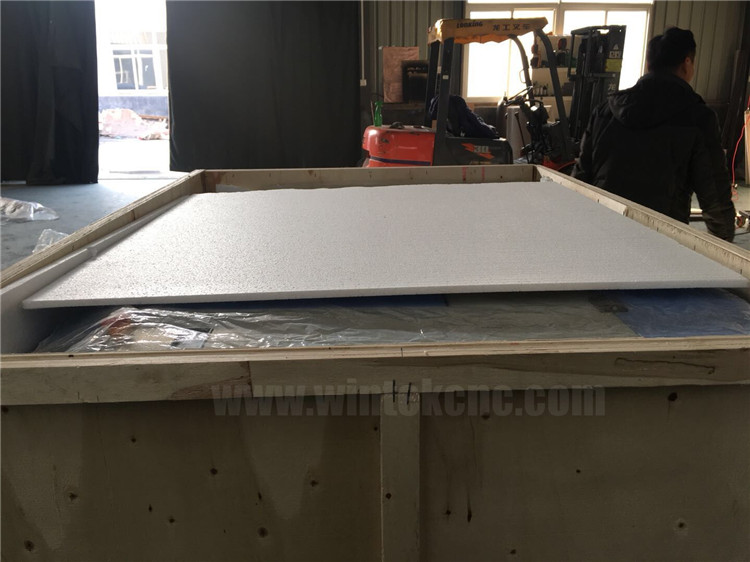

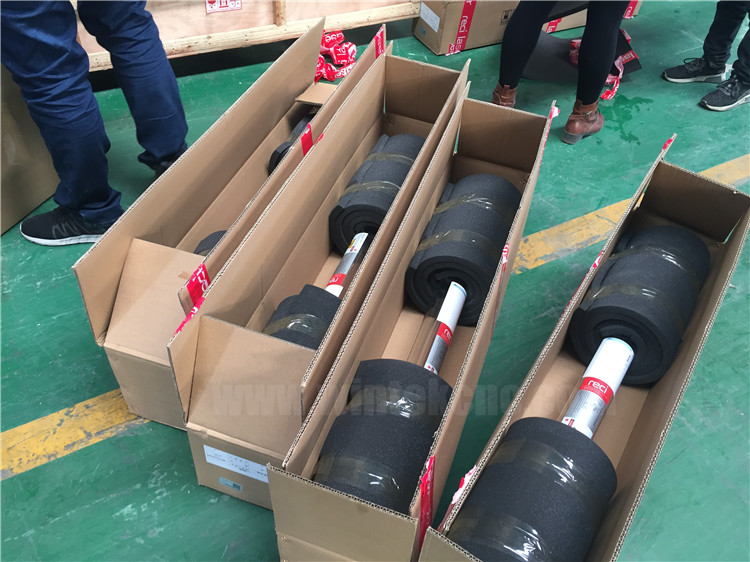

Package of automatic fabric laser cutting machine with cheap price :
