150W co2 laser cutting machine with cheap price for wood mdf plywood

Inquiries:

546

Model: WTJ1325 Category: Co2 Laser Cutting Machine
Brand:
FOB Price:

USD

3500$-5500$ FOB Qingdao

Port From:  Payment Terms:  Skype to usSend a request

Product Details

Send a Request

Wintek 150w co2 laser cutting machine can help you cut big thickness wood,plywood,acrylic,mdf,paper,leather and many other non-metal materials. In addition,it can cut thin metal materials.

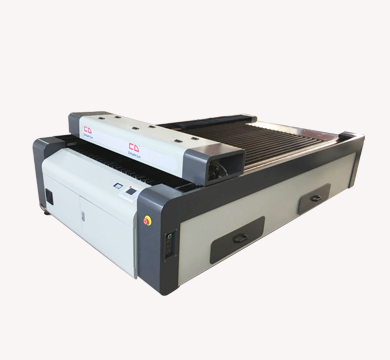

150W co2 laser cutting machine with cheap price for wood mdf plywood

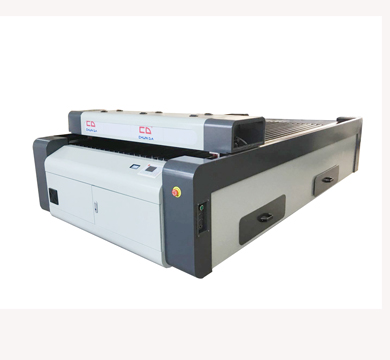

150W co2 laser cutting machine with cheap price for wood mdf plywood

Main Features of 150W co2 laser cutting machine with cheap price :

1,High precision,use taiwan square rail,famous 3-phase step motors

2,Strong body,Machine frameworks are made by squre tubes

3,Turn off the power to continue engraving cap protection

4,Professional control system fast,friendly,easy to use

5,3 in 1 closed beam,simple and generous

6,'Big eye' design,transparent acrylic window,75' cover angle,easy to observe

7,Professional control system offers fast cutting function with shortest process path,save time

8,Long-life laser tube,10000 hours life time


Technical Parameter of 150W co2 laser cutting machine with cheap price:


Model

WTJ1325 ( WTJ6040/WTJ6090/WTJ1390/WTJ1410/WTJ1610 optional)

Work area

1300*2500mm

Laser power

150w ,80w/100w/130w/180w/200w option)

Laser type

co2

Water chiller

CW5200

Laser head No.

One

Linear rail

Taiwan Hiwin

Table

Blade & Honeycomb

Cooling mothod

Water cooling/water break protection

Engrave speed

0~1000mm/s

Cut speed

0~600mm/s

Resolution

±0.01mm

System

RDC6442s with Wifi

Software

Laserwork v8

Graphic format supported

BMP,PLT,DST,DXF,AI,JPG,etc.

Software supported

Autocad, Coreldraw,Photoshop, etc.

Laser output

0-100%

Operating temperature

0-45℃

Operating Humidity

5-95%

Working mode

Leadshine stepper motor ( Servo motor)

Gross power

1200w

Min shaping character

1*1mm English

Voltage

220V±10%, 50-60Hz, single phase ( 110V- option)

Resolution

4000DPI

Option 1

z axis motorized up-down

Option 2

Auto focus

Option 3

Remote controller

Package

Plywood case

Applicable industry
Advertisement signs and marks making
 clothing and leather industry
 photo frame making

handicraft industry
crystal accessories
garment industry

wood and bamboo industry
paper cutting
decorative industry

Applicable materials
Wood
double color plate
paper
rubber
acrylic
organic glass
leather
marble
pvc
glass
cloth
granite

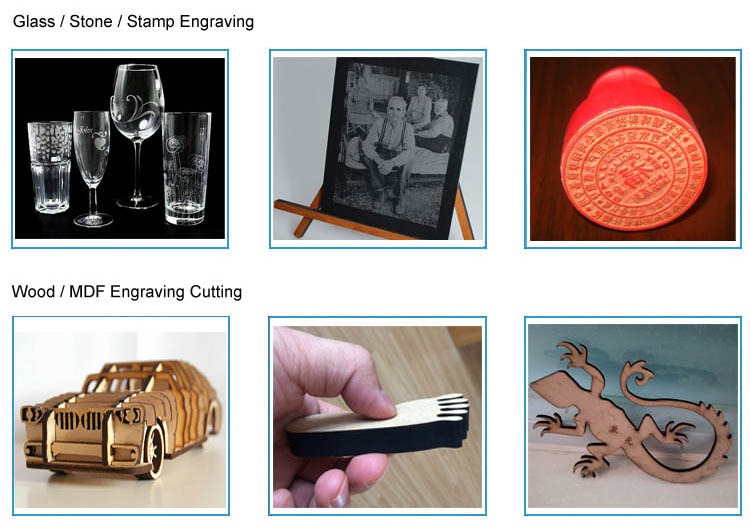

150W co2 laser cutting machine sample
sample of 150W co2 laser cutting machine



Products Advantage:

v Heavy body more steady difficult deformation and protect rust.

v Multi function one machine can cut ,engraving & scan .

v Have fine cutting and engraving effect and price advantage.

v Support U-download data, support off-line

v Pass-through front and rear doors to accommodate long work pieces.

v Emergency stop (turn off the machine immediately when there is an accident)

v color layer setting(change the working speed and power by using color settings).

v Glass viewing windows creating a safe enclosure for laser processing

v large internal memory capacity improves the working speed with greater  efficiency.

v 3 unique protection functions: anti-interference function,water-protective function,and power cut offer function.

v .it can make delicate and complicated designs on acrylic,wood ,plexiglass,avoidpolishing .processing high speed,&high precision.

v aluminum srip shape platform can bear heavier materials.such as acrylic,wood,mdf,etc nonmetal material.homeycomb platform suitable for leather ,cloth,frabic,paper.etc light material.

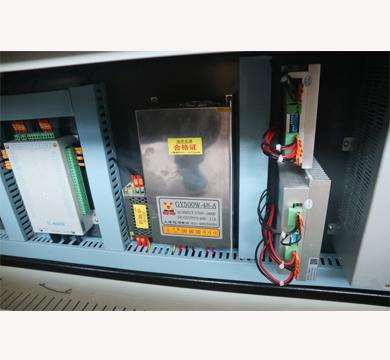

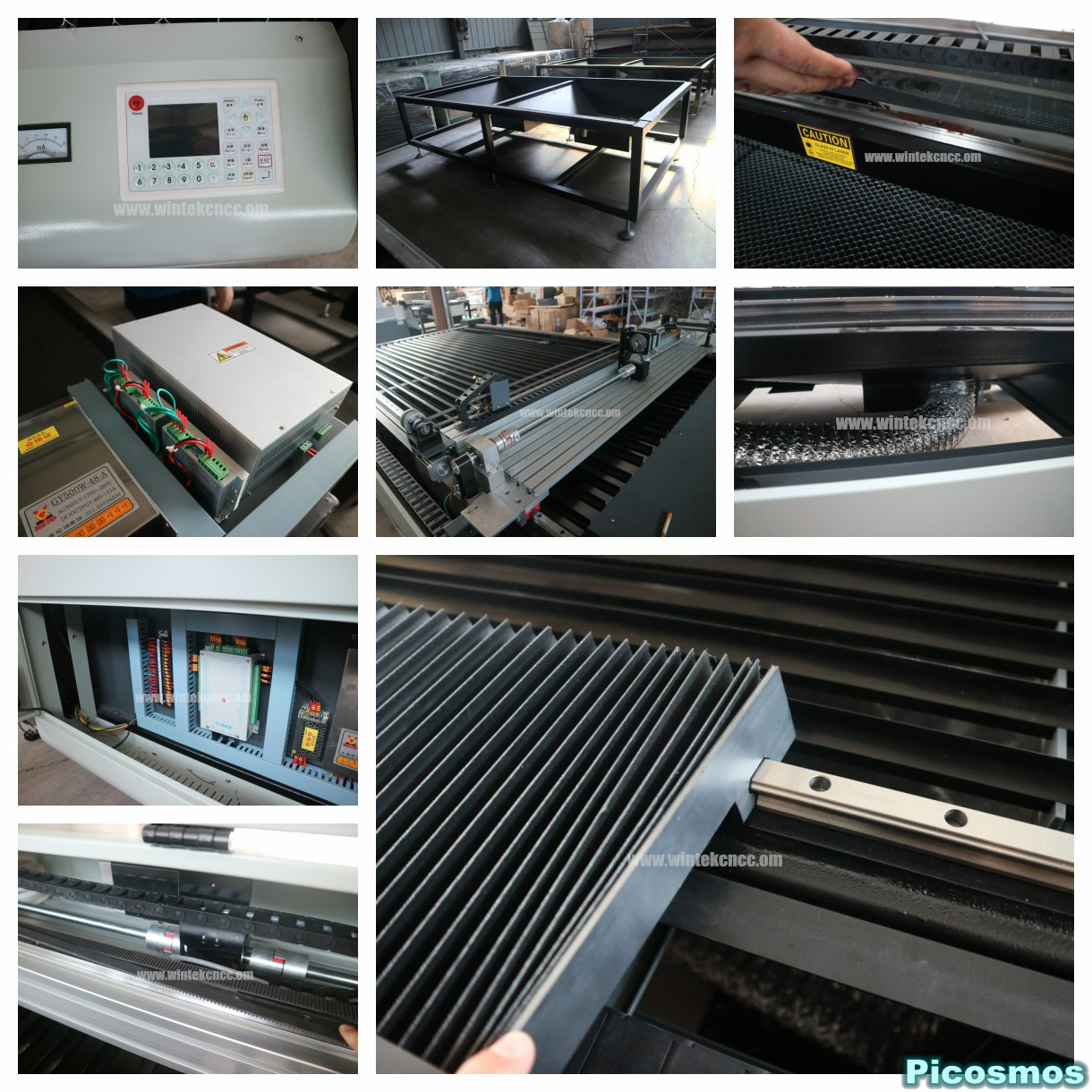

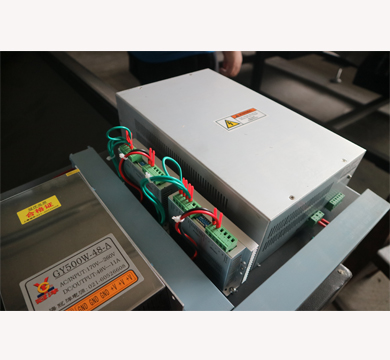

Details of 150W co2 laser cutting machine :

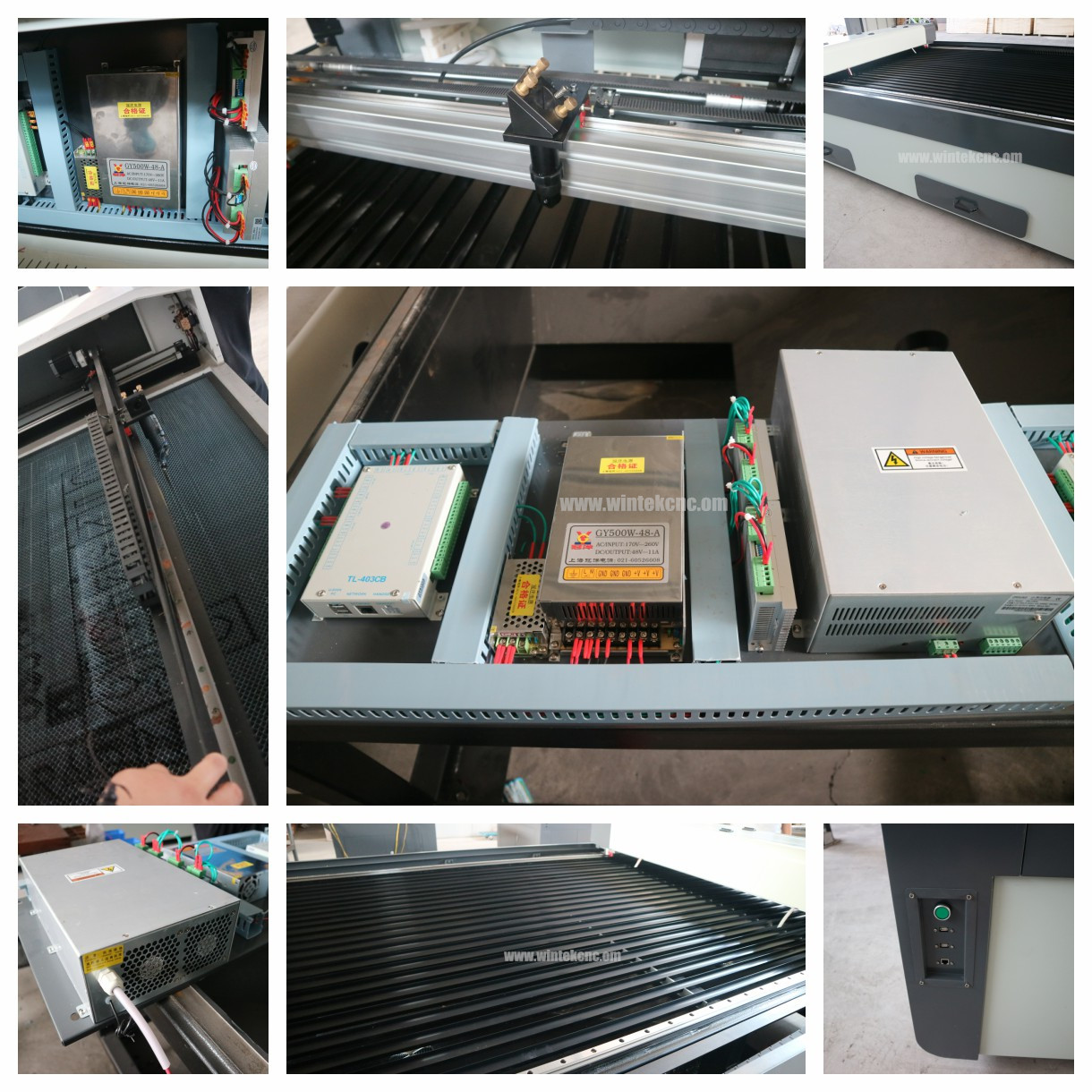

150W co2 laser cutting machine detail

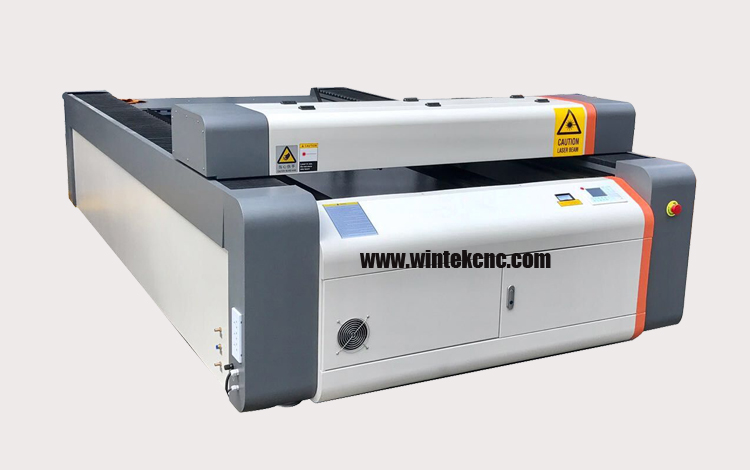

150W co2 laser cutting machine

Delivery time :

7-10 working days.

Warranty :
1 Year
