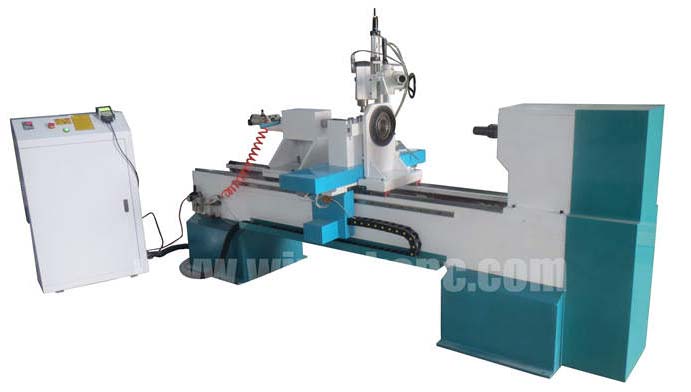

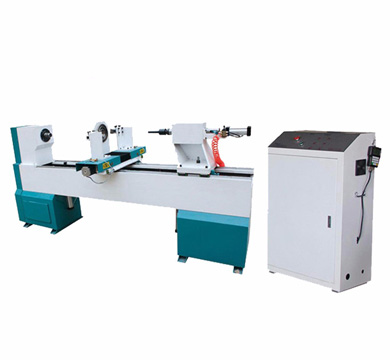

Model: WTM-1530TL Category: CNC Wood Lathe
USD
4500$-8500$ FOB Qingdao
Wood turning CNC Lathe Machine is professional for making wooden stairs handrails,stairs column,stair wood balusters.CNC woodworking lathe combining CNC and other mechanical technology, could process the complex shape of the wood rotary products or semi-finished wood products. , such as staircase column,cylindrical, conical, curved, spherical etc. It is especially suitable for the mass production of small or medium-scale wood enterprises, set shape flexibly and changing processing style rapidly.
Videos of standard wood turning cnc lathe machine :
Applications of wood turning cnc wood lathe machine for sale:
Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, various staircase column,
stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs,
Roman column, general column, washstand, wooden vase, wooden table, baseball bat, car wooden
furniture, children' s bed column, chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;
baseball bats and so on.etc.
Features of wood turning cnc wood lathe machine for sale:
1). Maximum working length is 1500mm, Max.turning diameter is 300mm (size can be customized).

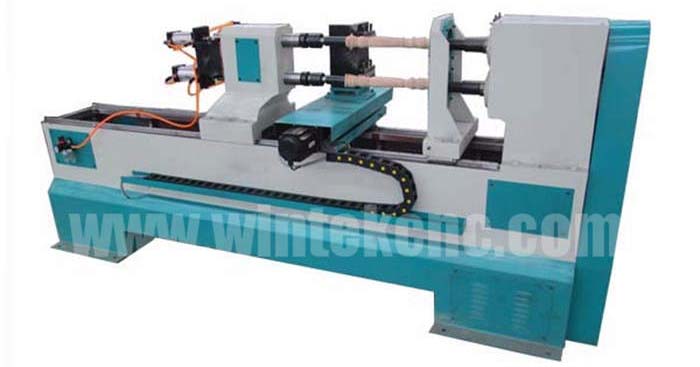

2).You can choose 1 cutter machine, Also can choose 2 cutters at two sides of the machine, the 2 cutters work together,improve the efficiency greatly.
3).Taiwan Hiwin square rails, ballscrews,some electronic components are imported, high precision and durable.
4). It is heavy-duty, heavy weight, avoid shaking when the spindle rotates fast.
5). Easy operation, we can draw by autoCAD and other softwares, transfer the files to machine by a USB.
6). If you want to engrave stripe, we will add a 3.5kw air cooling spindle, and add a 4.0kw stepper motor on 1 cutter machine/ a 5.5kw stepper motor on 2 cutters machine.
7). We will customize the size of machine according to customer’s need.
Specification of wood turning cnc wood lathe machine for sale :
|
ITMS |
Specification |
|
Processing length(mm) |
1500 |
|
Max,swing over bed(mm) |
300 |
|
Power |
80V/50HZ |
|
Control Systems |

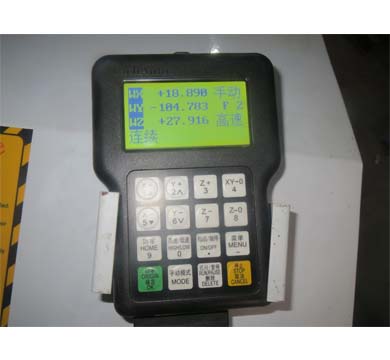

A:Full-color 12 -inch screen built- CNC computer or B:DSP handle controller (USB) |
|
Guides and ball screws |
Imported linear square rails and precision ball screw |
|
Follow rest |
Rotary Centre (5CM wooden , 6CM wooden) |
|
Self-centering |
Automatic centering on foot pneumatic feed |
|
Motor control |
4-pole 380 volt frequency spindle |
|
Frequency converter |
Vector electronic automatic brake inverter |
|
Tailstock |
Pneumatic material clamping top |
|
Tools |

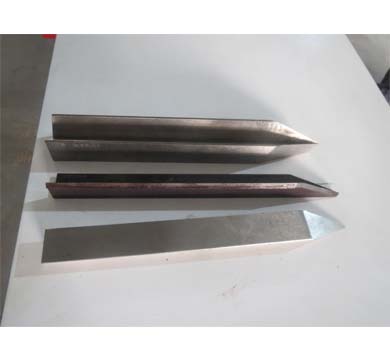

V -shaped steel tool are factory front , welded alloy knife |
|
Software |
Control and easy to use software + basic map file |
|
Accessory tools |
Random tool wrench |
|
engraver/ Pull trough , pull and twist versatile spindle control section |
|
|
Additional pull trough Universal rotary joint |
|
|
Optional for cnc wood |
|
|
1,160mm four-jaw chuck linkage 2,Woodworking cleaner(Vacuum cleaner) 3,220V constant power variable spindle control 4,Four- exchange station automatic tool changer |
|
