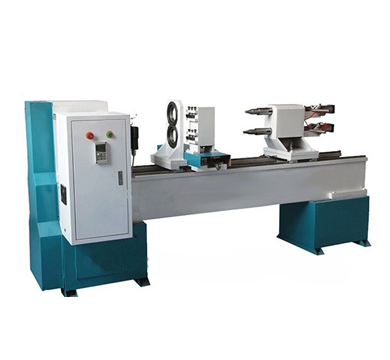

Model: WTM1530TL-2 Category: CNC Wood LatheUSD
4500$-7500$ FOB Qingdao

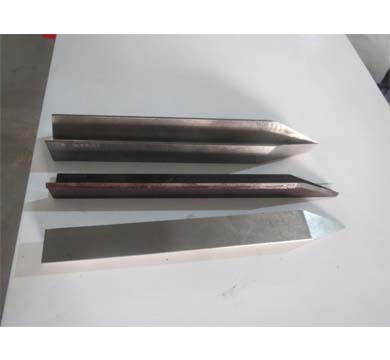

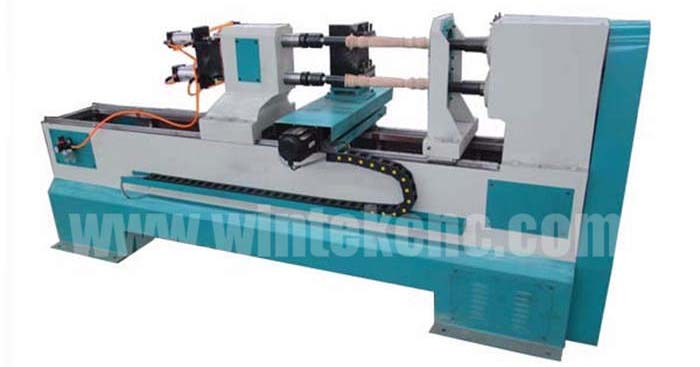

Double axis automatic cnc wood turning lathe machine has 2 cutters: the rough turning cutter and the finish turning cutter, which work synchronously with layered process, and therefore highly improve working efficiency and workpiece surface quality.
Features of double axis automatic cnc wood turning lathe machine for sale:
1) High efficiency and good surface finish. The machine has 2 cutters: the rough turning cutter and the finish turning cutter, which work synchronously with layered process, and therefore highly improve working efficiency and workpiece surface quality.
2) High precision and accuracy:
Heavy-duty structure with good stability, avoid shaking during the spindle rotating fast or the big sizes workpiece processing; furthermore, the spindle speed is adjustable through the inverter.
High accuracy stepper motor, through program calculating, guarantees the exact processing size.
3)Easy and safe operation and low maintenance cost: humanized and updatable operation system and USB interface, easy and convenient to change the working pattern without live programming.
4) Good Compatibility: freely design and engrave all kinds of patterns and text, which are designed by Coredraw, Artcam, AutoCAD and other software.
5) Smooth and High-Precision Transmission:Taiwan TBI ball screw and Taiwan PMI linear square rail with high transmitting precision and long working time.
6) Perfect details processing technology: every detail is treated and inspected very seriously so that perfect machine could be made.
7) Matured and perfect after-sales service system around the clock

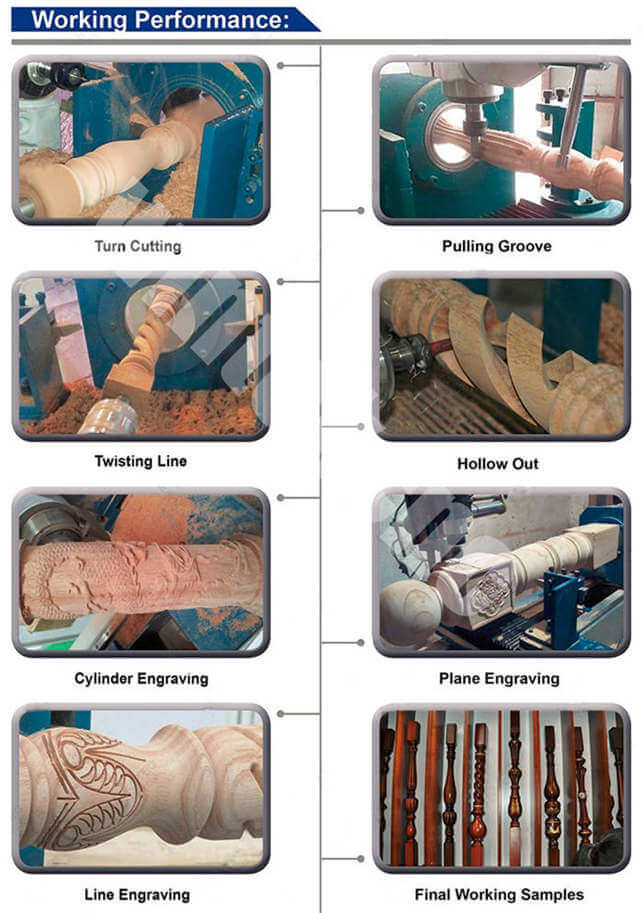

Applications of automatic cnc wood turning lathe machine for sale :

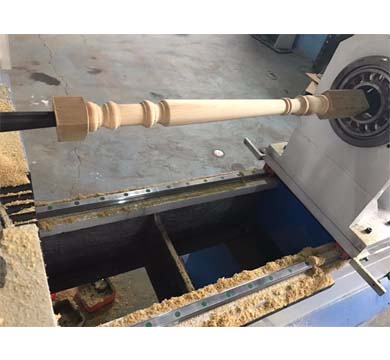

Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;
bar stoollegs;chair legs;chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on.
Specification of automatic cnc wood turning lathe machine for sale :
# CE
#Max turning length: 1500mm, max turning diameter: 300mm
# Stepper motor
# Taiwan rail guide
#Taiwan TBI ball screw

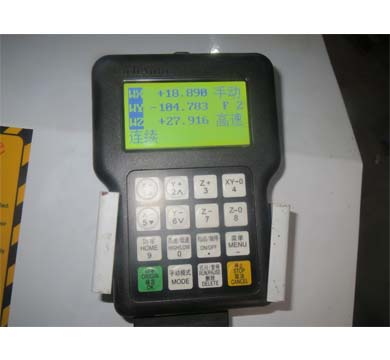

#DSP control system
#Yako driver
#Fuling inverter
#Delix AC contactor
#Schneider electronics
Technical parameters of automatic cnc wood turning lathe machine for sale:
Control system |
DSP |
Max working area |
1500*300mm |
Single axis turning length |
300mm |
Double axis turning length |
180mm |
Max working length |
1500mm |
Min working length |
20mm |
Min working diameter |
10mm |
Min setting unit |
0.1mm |
Max feeding speed |
3000mm/min |
Max manual speed |
5000mm/min |
Drawing type |
CAD software, G code |
Control method |
cnc |
Total power |
8kw |
Net weight |
1800KGS |
longer axis step motor torque |
16 N.m |
Shorter axis step motor torque |
12 N.m |
Machine dimension |
3000*1500*1300mm |
Voltage |
AC380V/50HZ/3ph |
